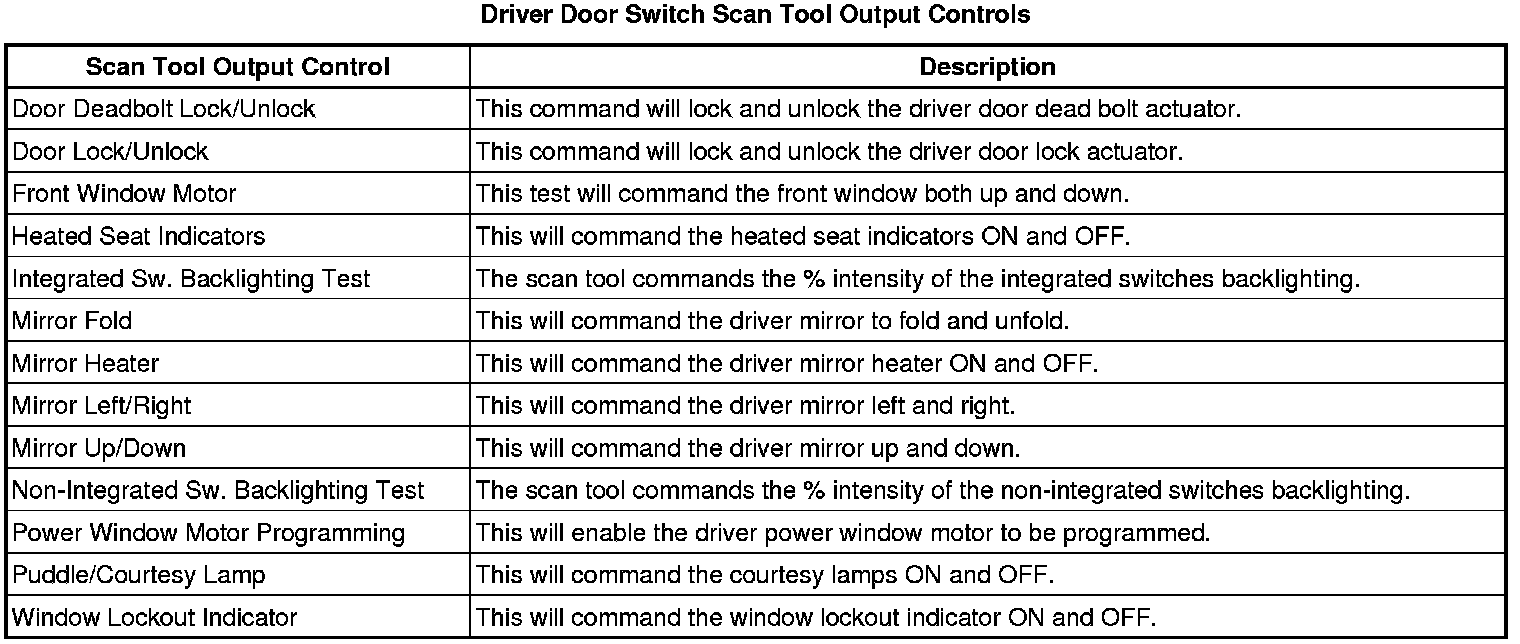

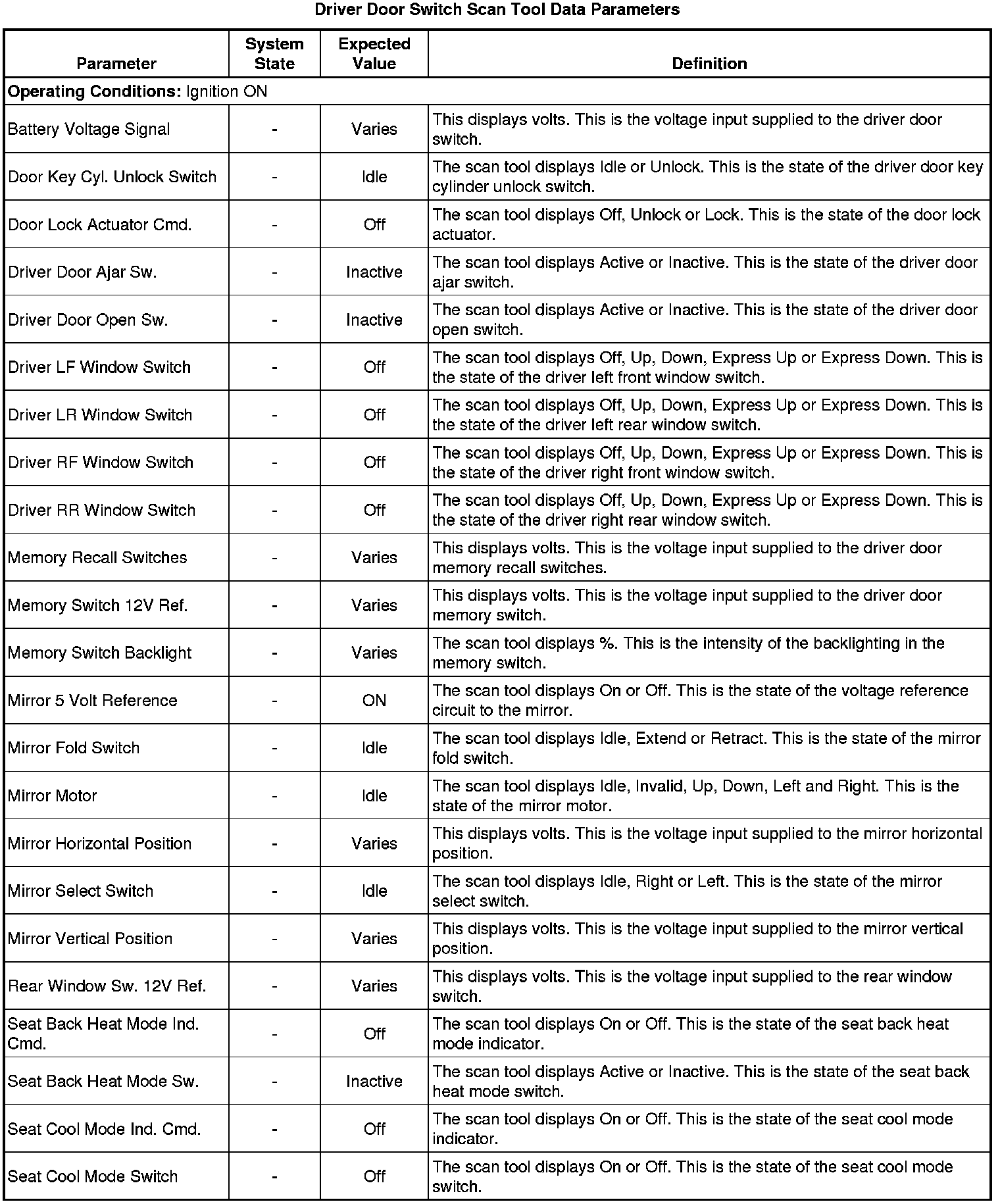

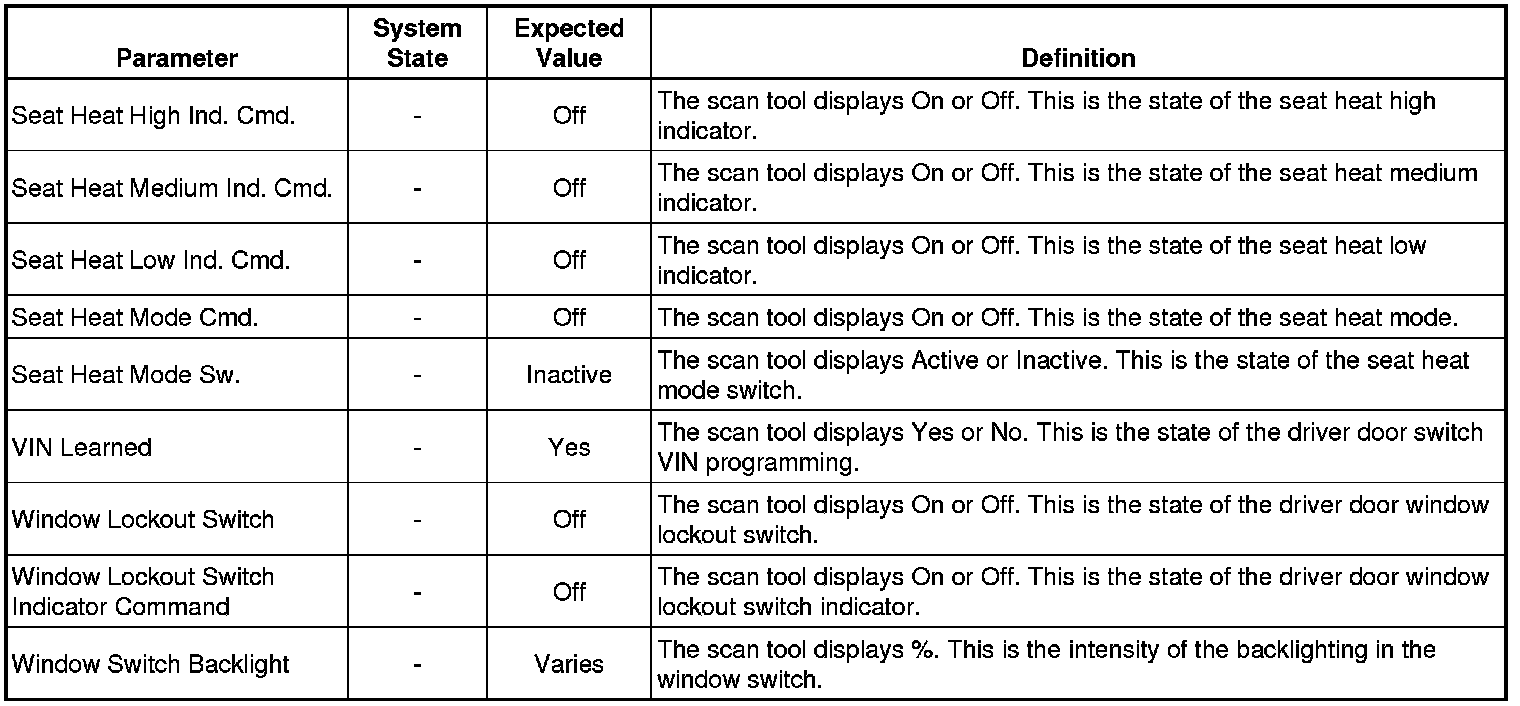

Door Lock Control Module Scan Tool Information (Driver Door Switch)
Door Lock Control Module Scan Tool Information (Driver Door Switch)
Door Lock Control Module Scan Tool Information (Driver Door Switch)
