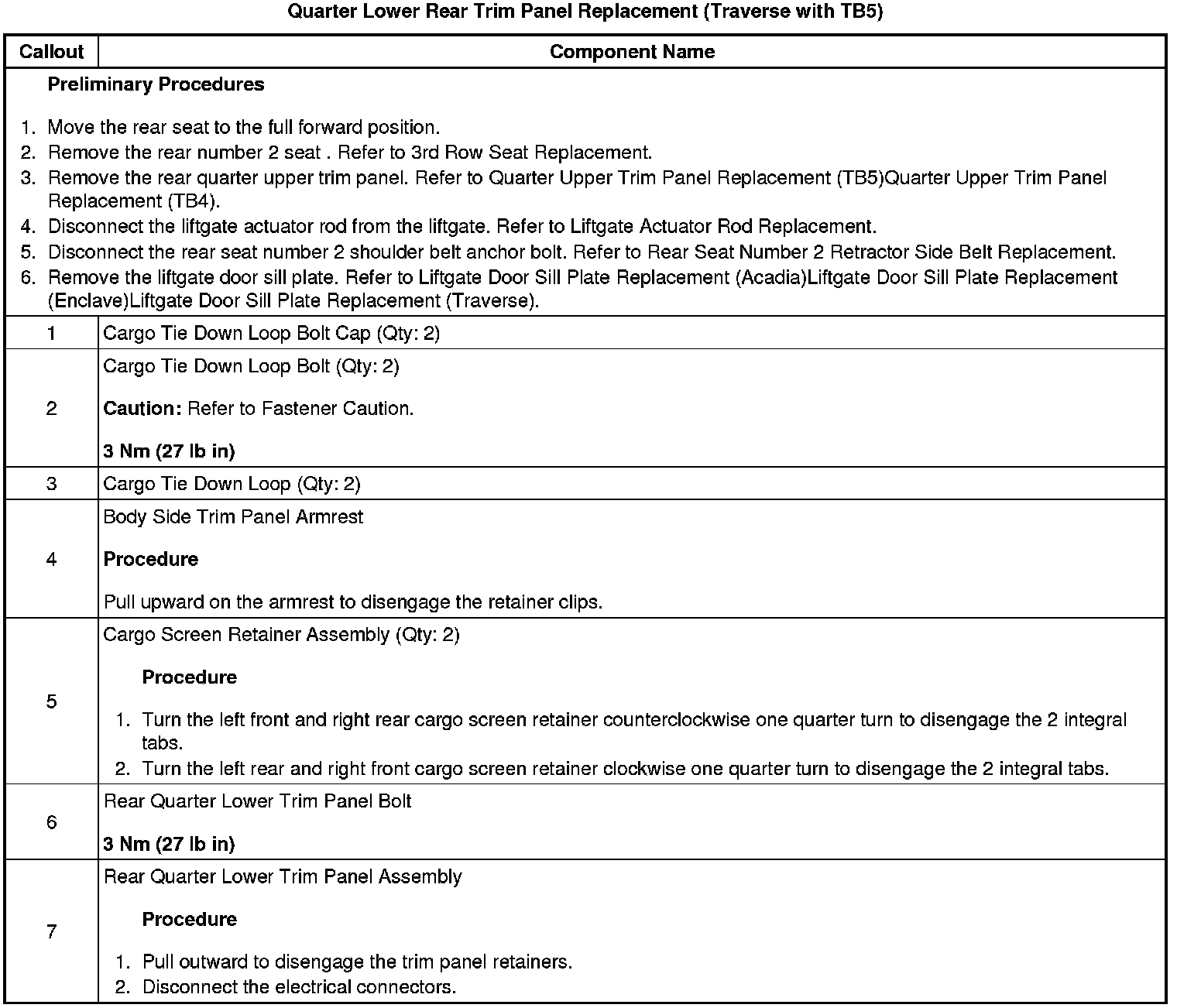

Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)
Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)
Quarter Lower Rear
Trim Panel
Replacement (Traverse with TB5)
