Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Carpet >> Service and Repair >> Removal and Replacement >> Front Floor Panel Carpet Replacement - Left Side

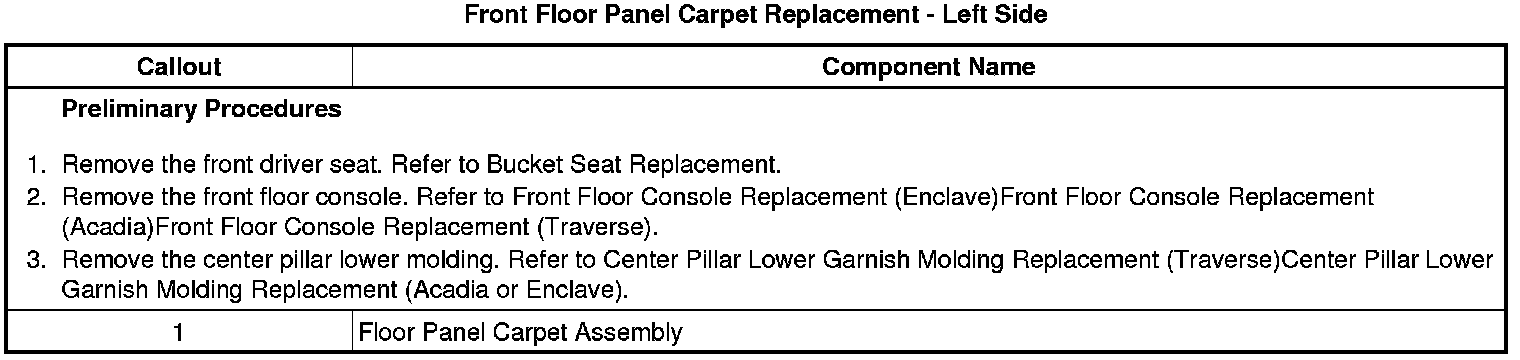

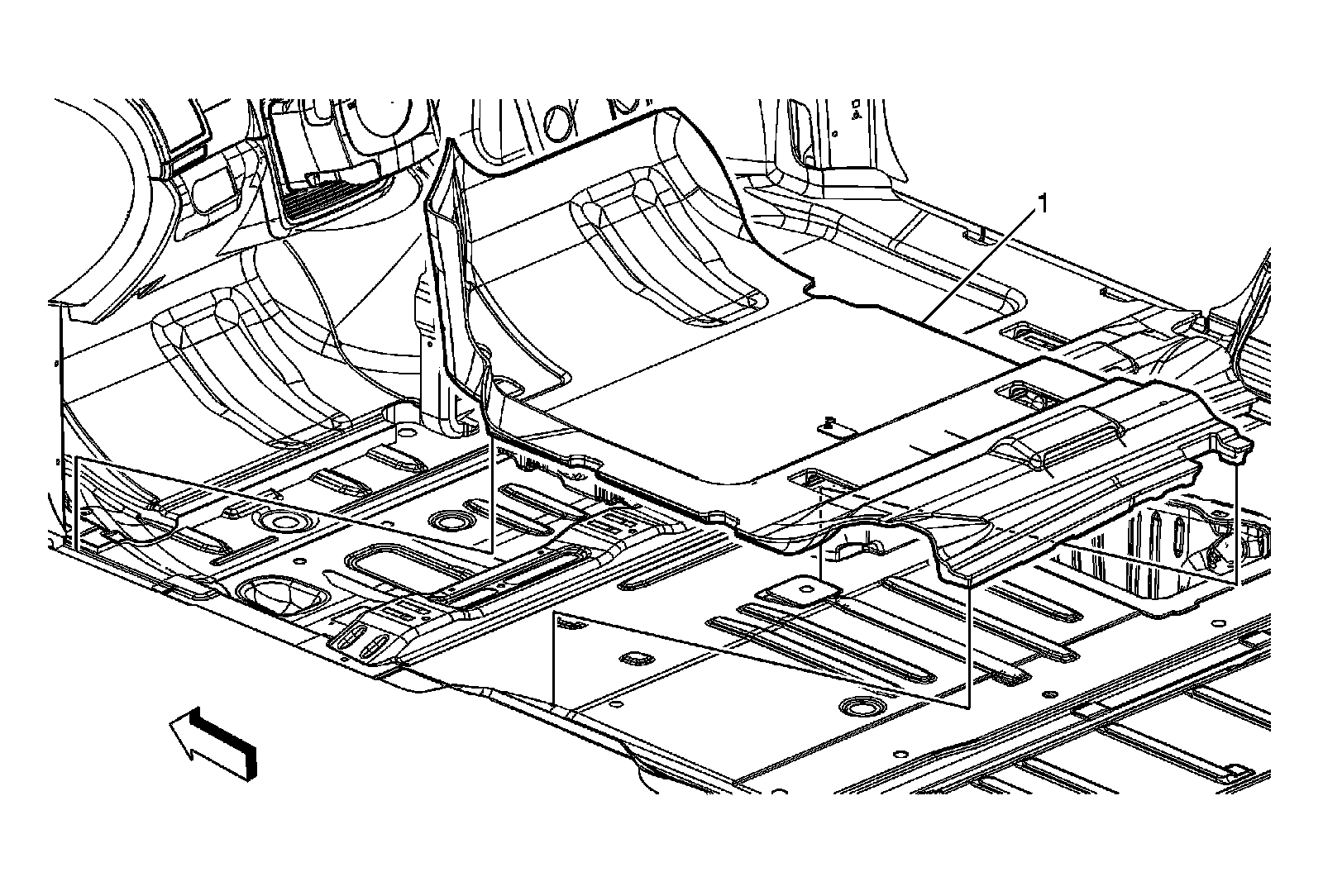

Front Floor Panel Carpet Replacement - Left Side




Front Floor Panel Carpet Replacement - Left Side
