Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Exterior Moulding / Trim >> Upper Side Moulding / Trim >> Service and Repair >> Body Side Window Rear Panel Replacement

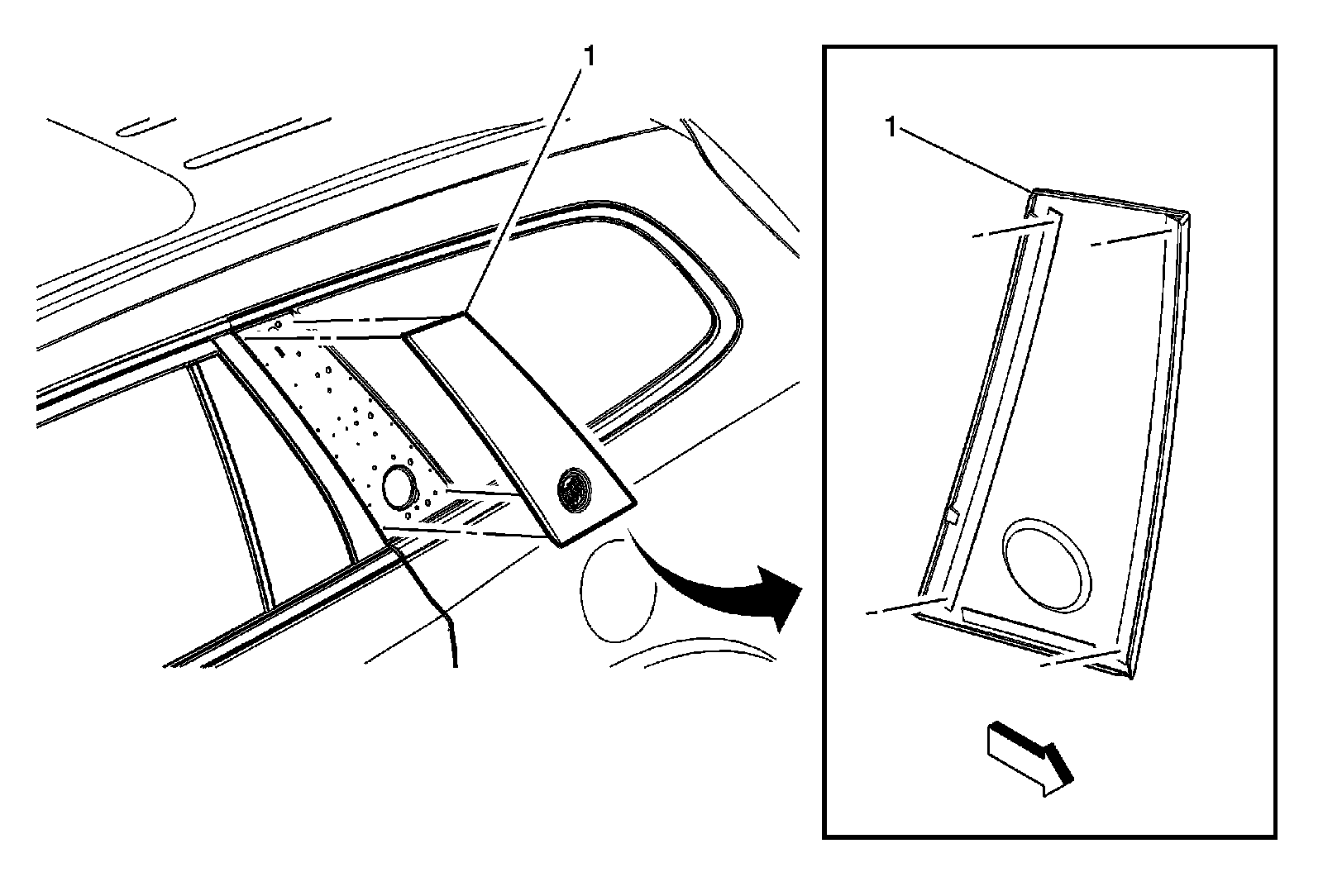

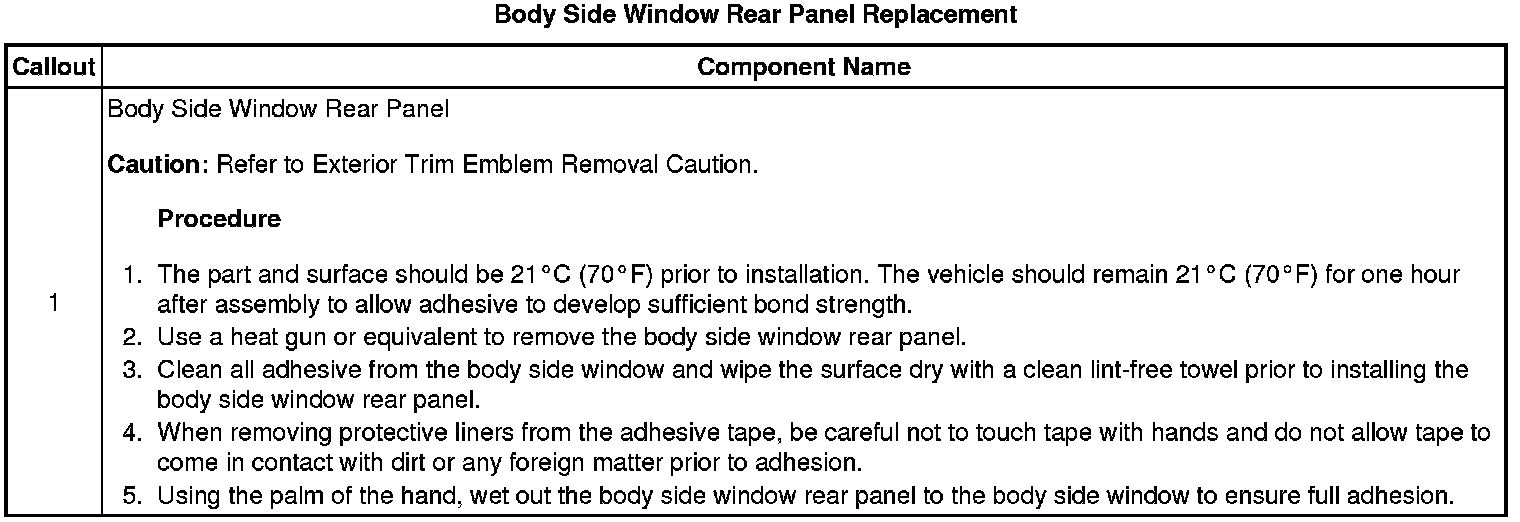

Body Side Window Rear Panel Replacement

Body Side Window Rear Panel Replacement
