Driver Door Switches (without AXE)




Door Component Views

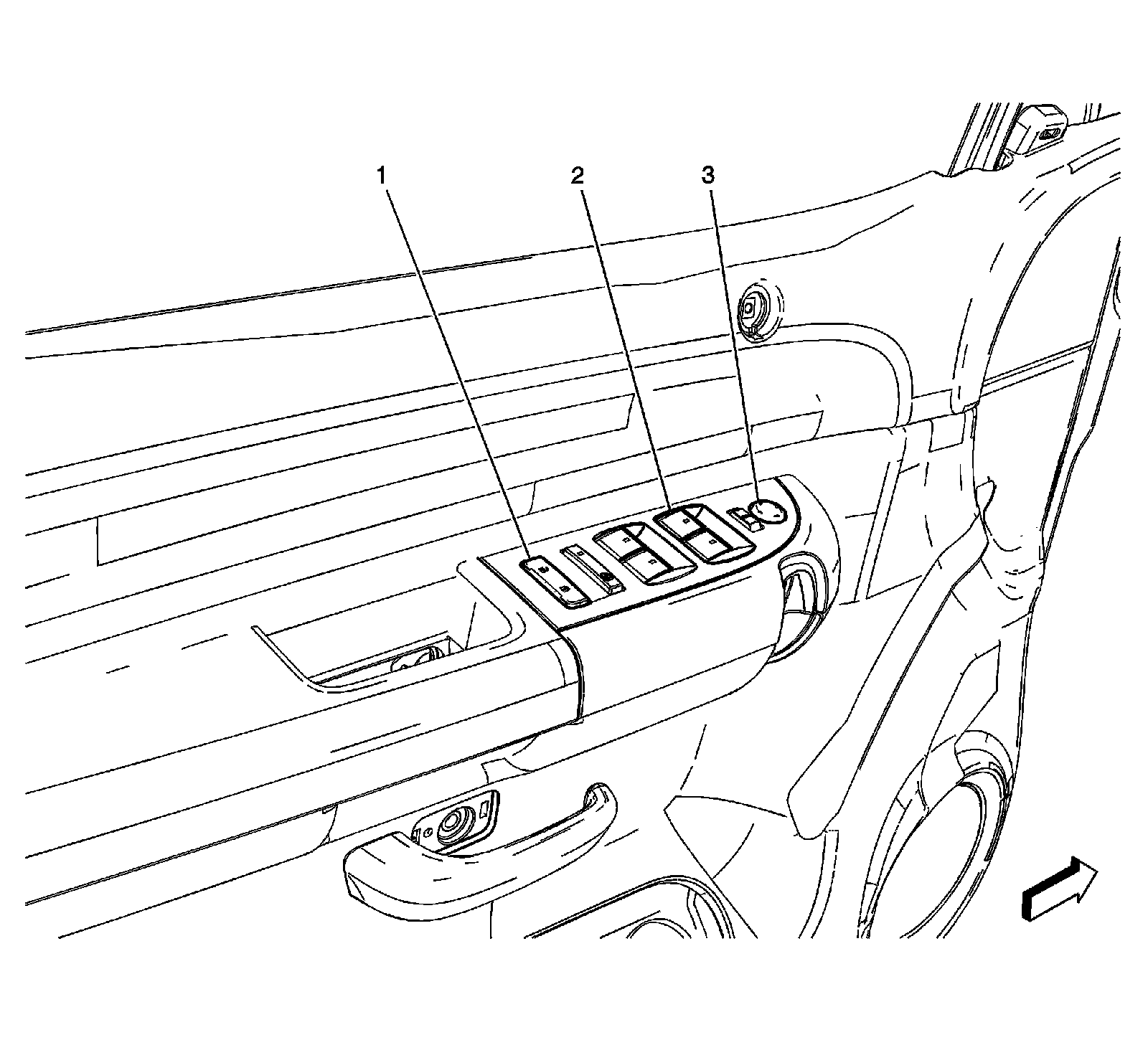

Driver Door Switches (without AXE)





1 - Door Lock Switch- Driver

2 - Window Switch- Driver

3 - Outside Rearview Mirror Switch
