Front Bumper Upper Fascia Replacement (Traverse)

Front Bumper Upper Fascia Replacement (Traverse)












2.Remove the front fog lamps. Refer to Front Fog Lamp Replacement .

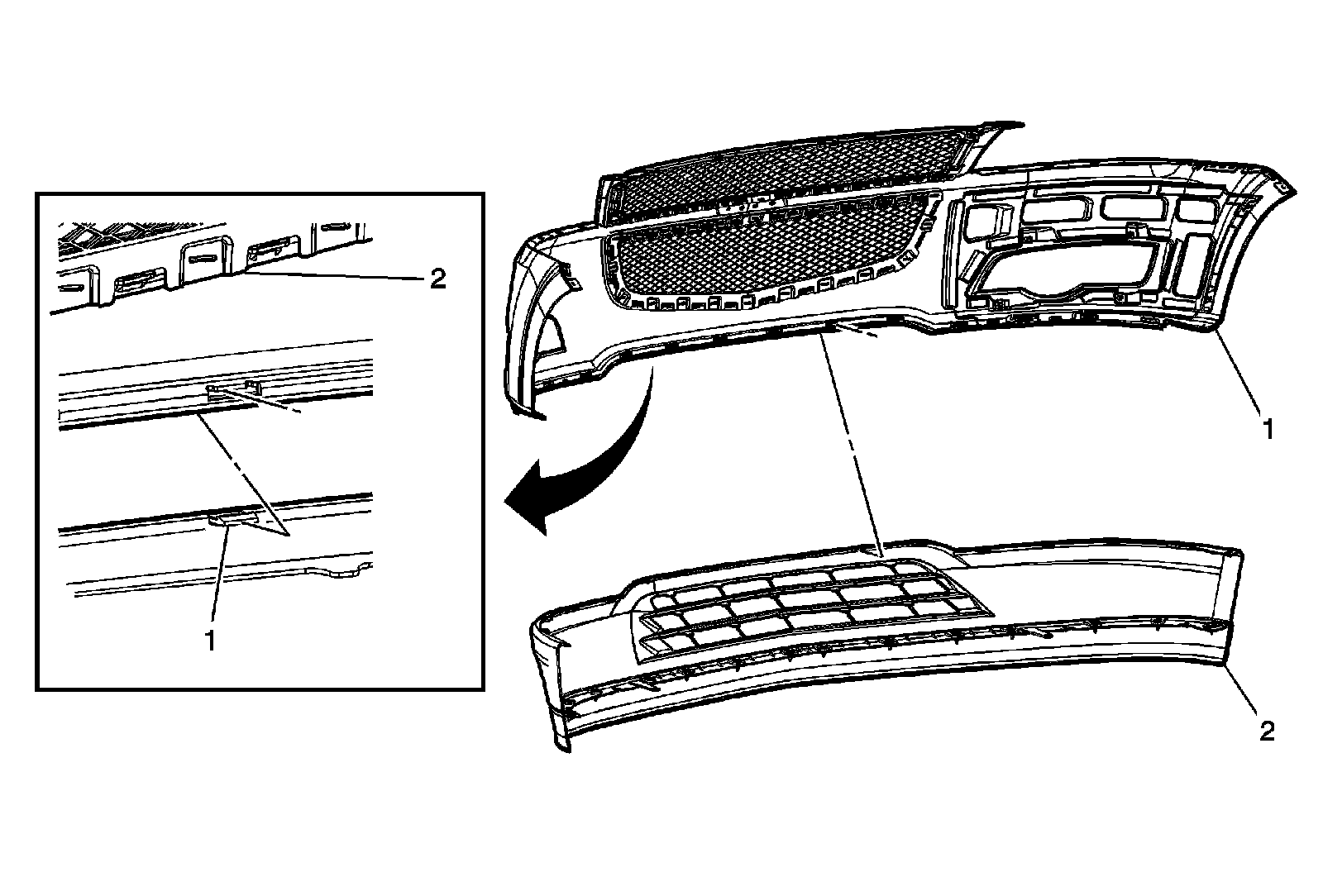

1Front Bumper Upper Fascia Tab

Procedure

1.Remove the screws from the ends of the upper and lower fascia.

2.Carefully push a small nylon wedge between the lower fascia and the upper fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the upper fascia from the fascia.

2Front Bumper Upper Fascia

Procedure
Transfer parts as needed.
