Front Bumper Lower Fascia Replacement (Acadia)

Front Bumper Lower Fascia Replacement (Acadia)

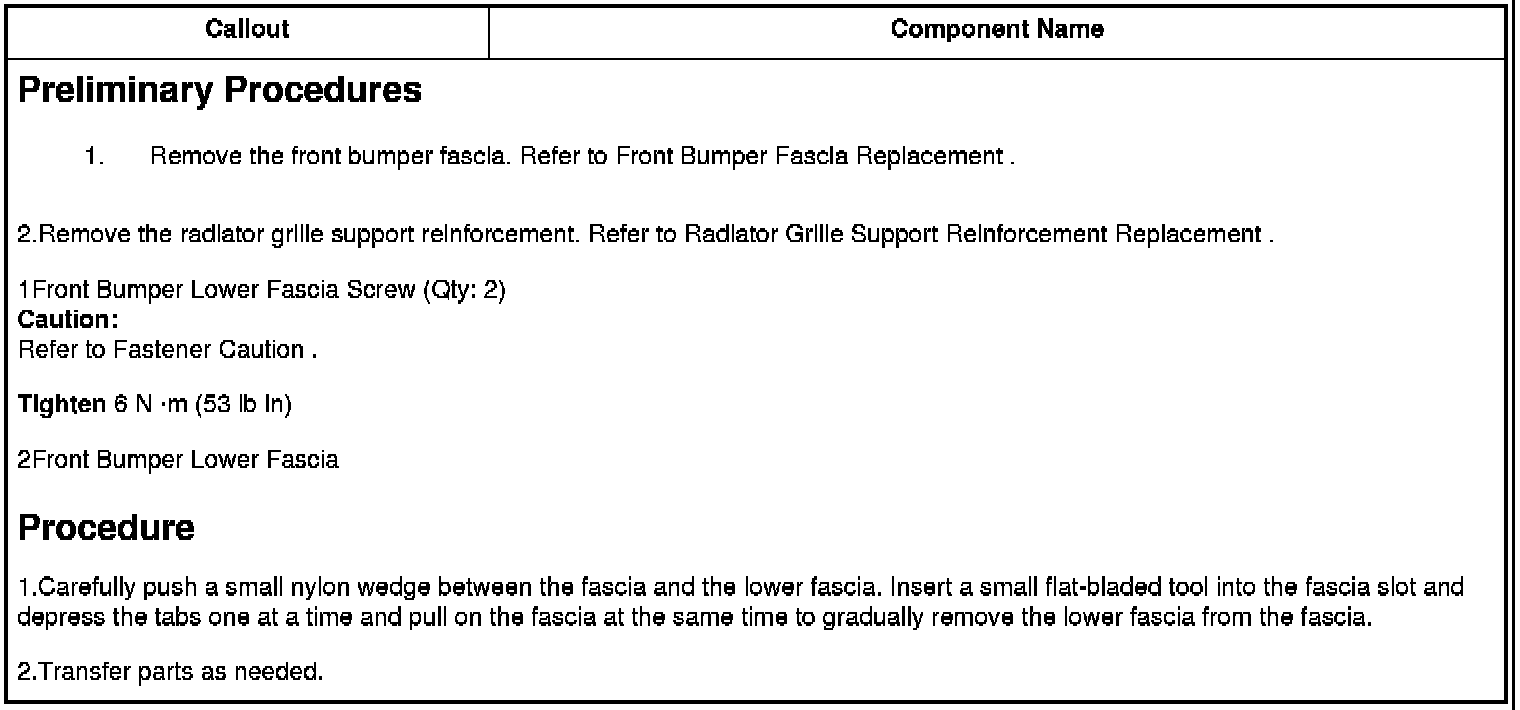

2.Remove the radiator grille support reinforcement. Refer to Radiator Grille Support Reinforcement Replacement .

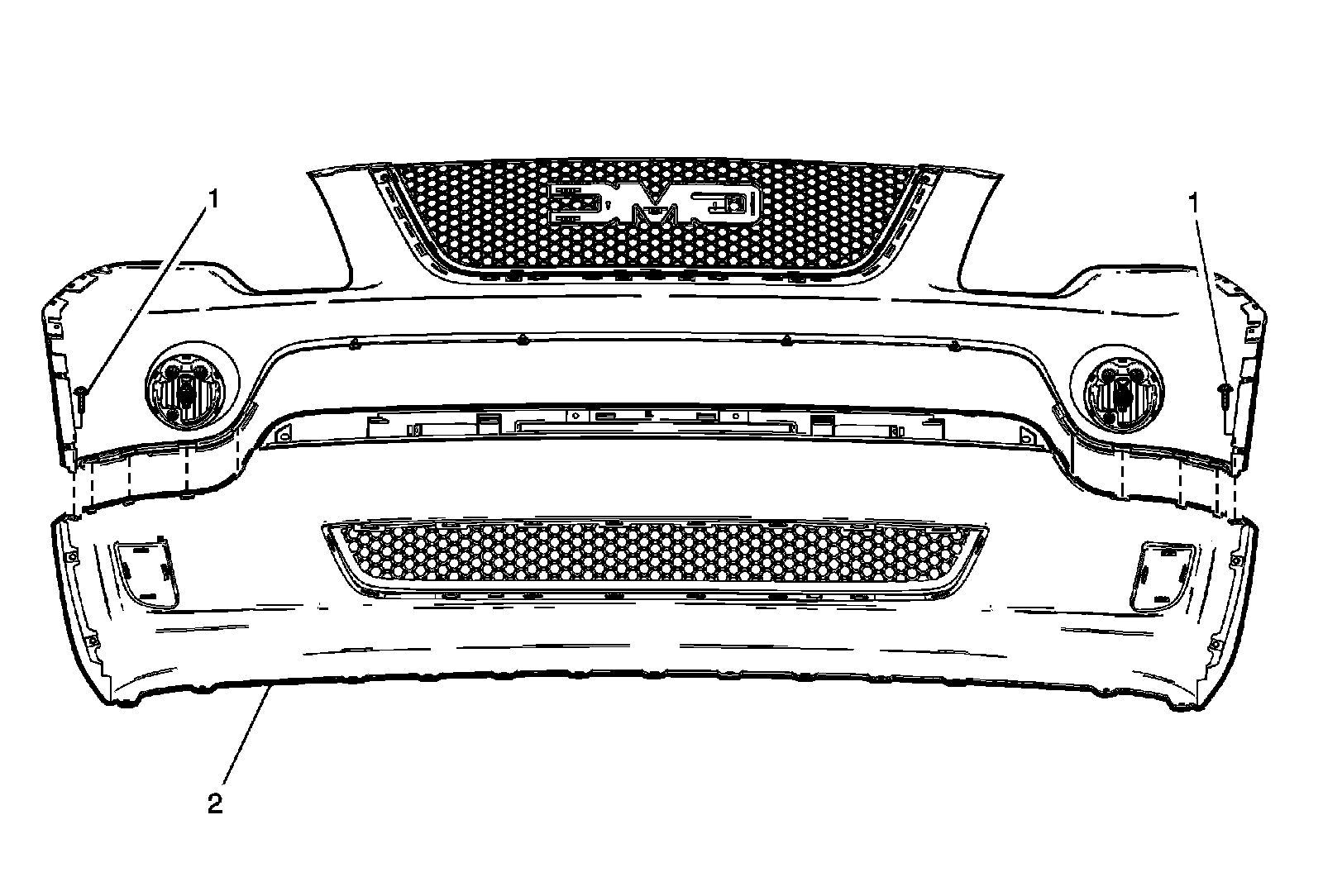

1Front Bumper Lower Fascia Screw (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 6 N �m (53 lb in)

2Front Bumper Lower Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.

2.Transfer parts as needed.
