Front Bumper Fascia Upper Support Replacement (Acadia and Traverse)

Front Bumper Fascia Upper Support Replacement (Acadia and Traverse)

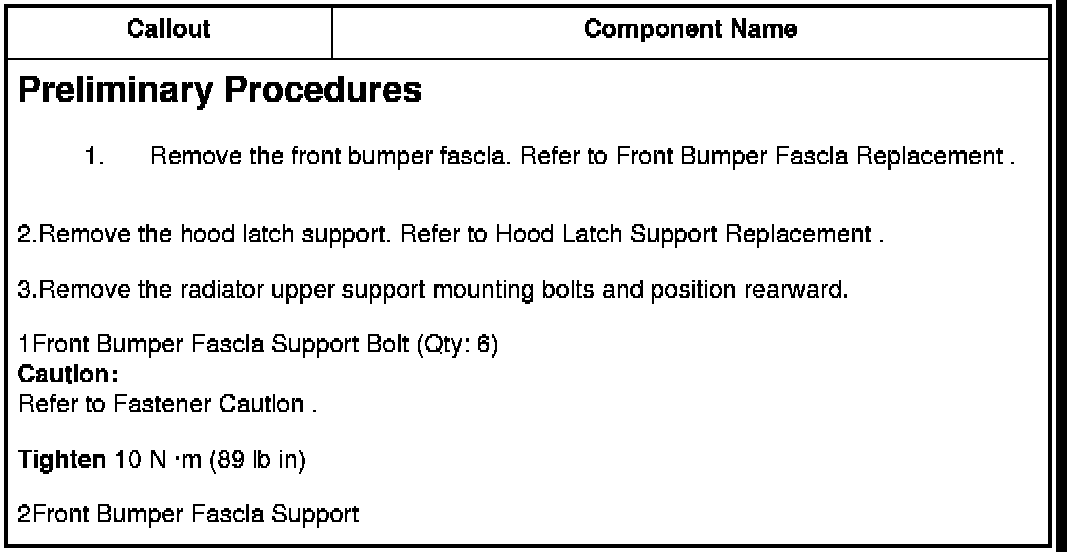

2.Remove the hood latch support. Refer to Hood Latch Support Replacement .

3.Remove the radiator upper support mounting bolts and position rearward.

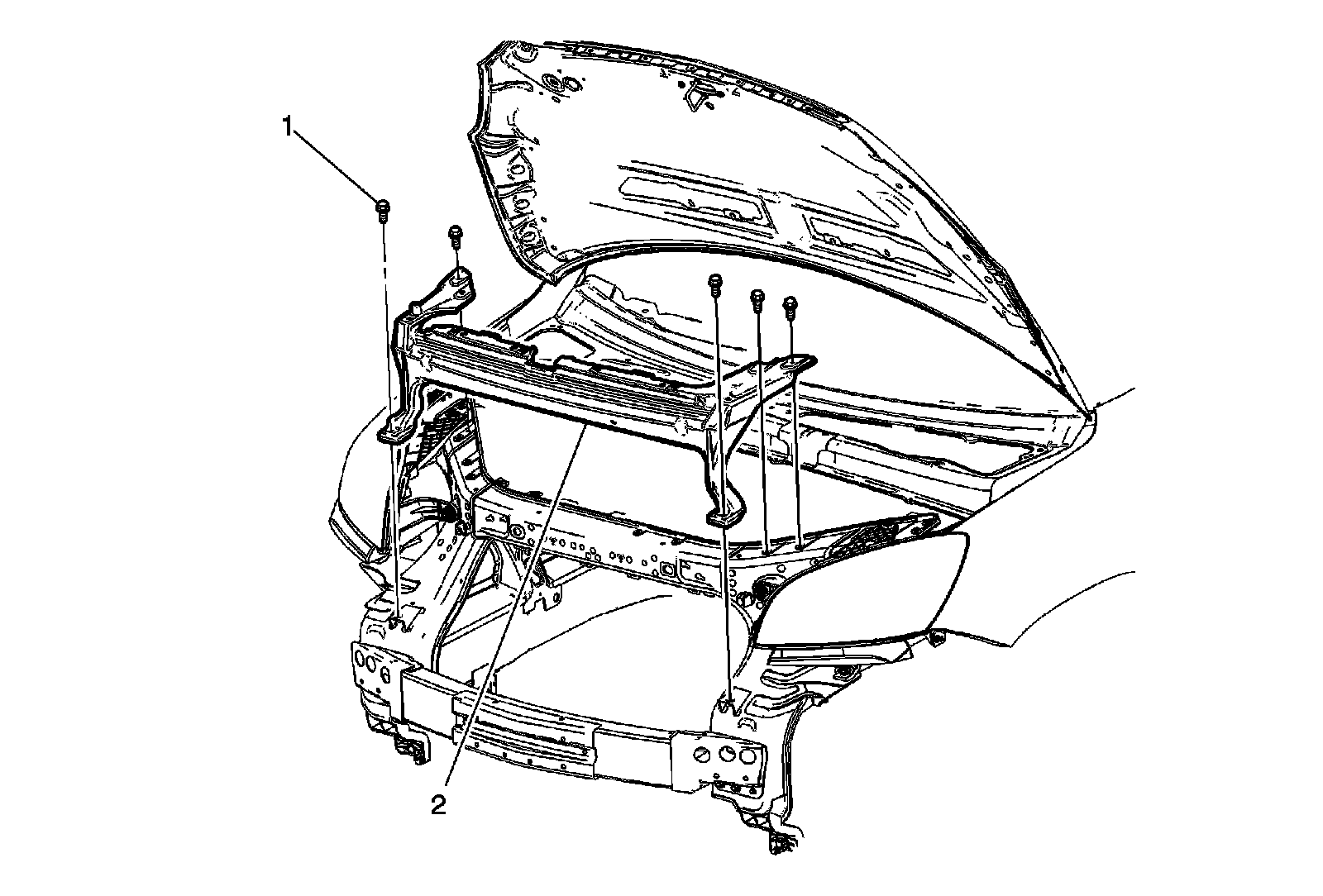

1Front Bumper Fascia Support Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

2Front Bumper Fascia Support
