Front Bumper Fascia Replacement (Traverse)

Front Bumper Fascia Replacement (Traverse)

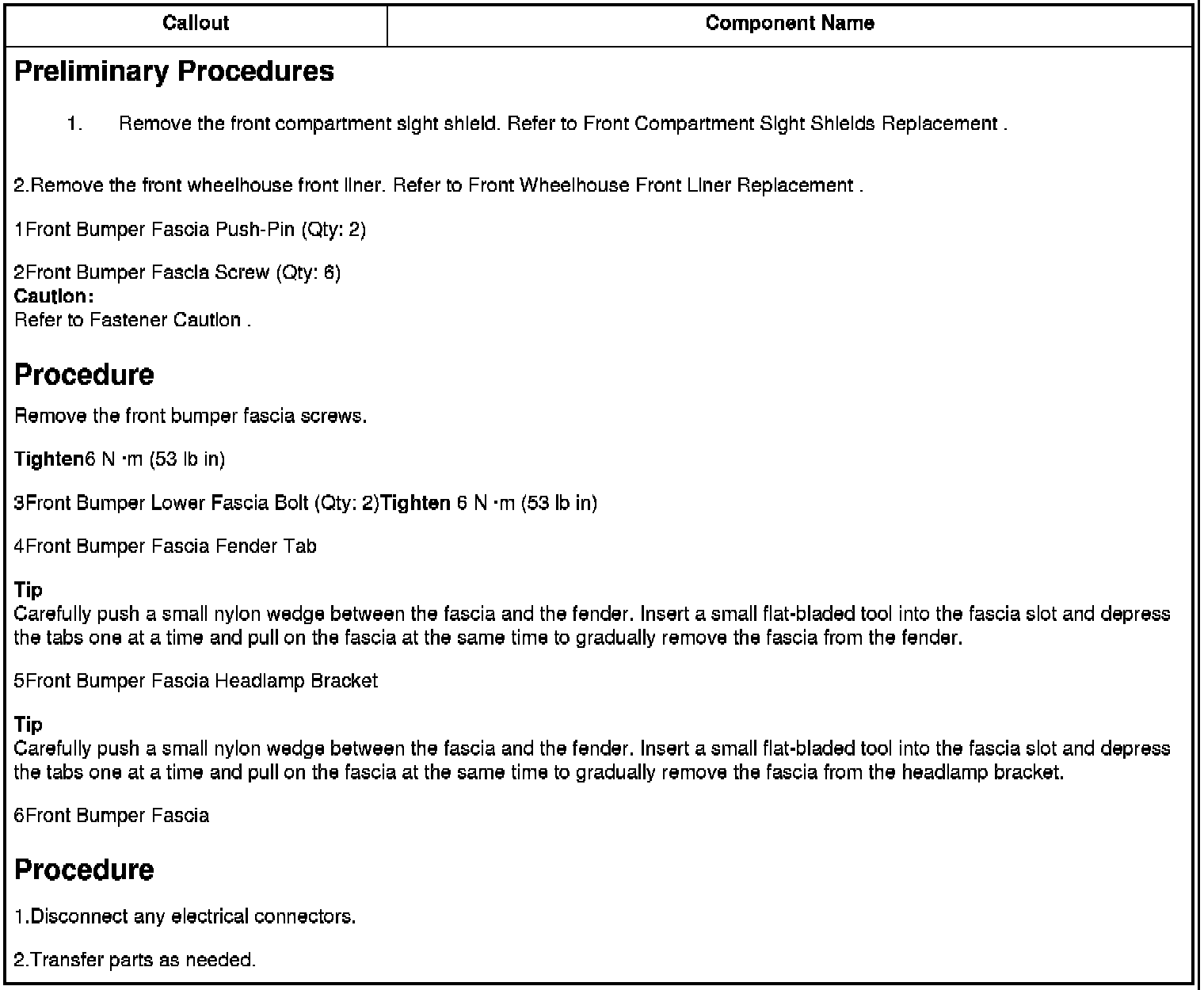

2.Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .

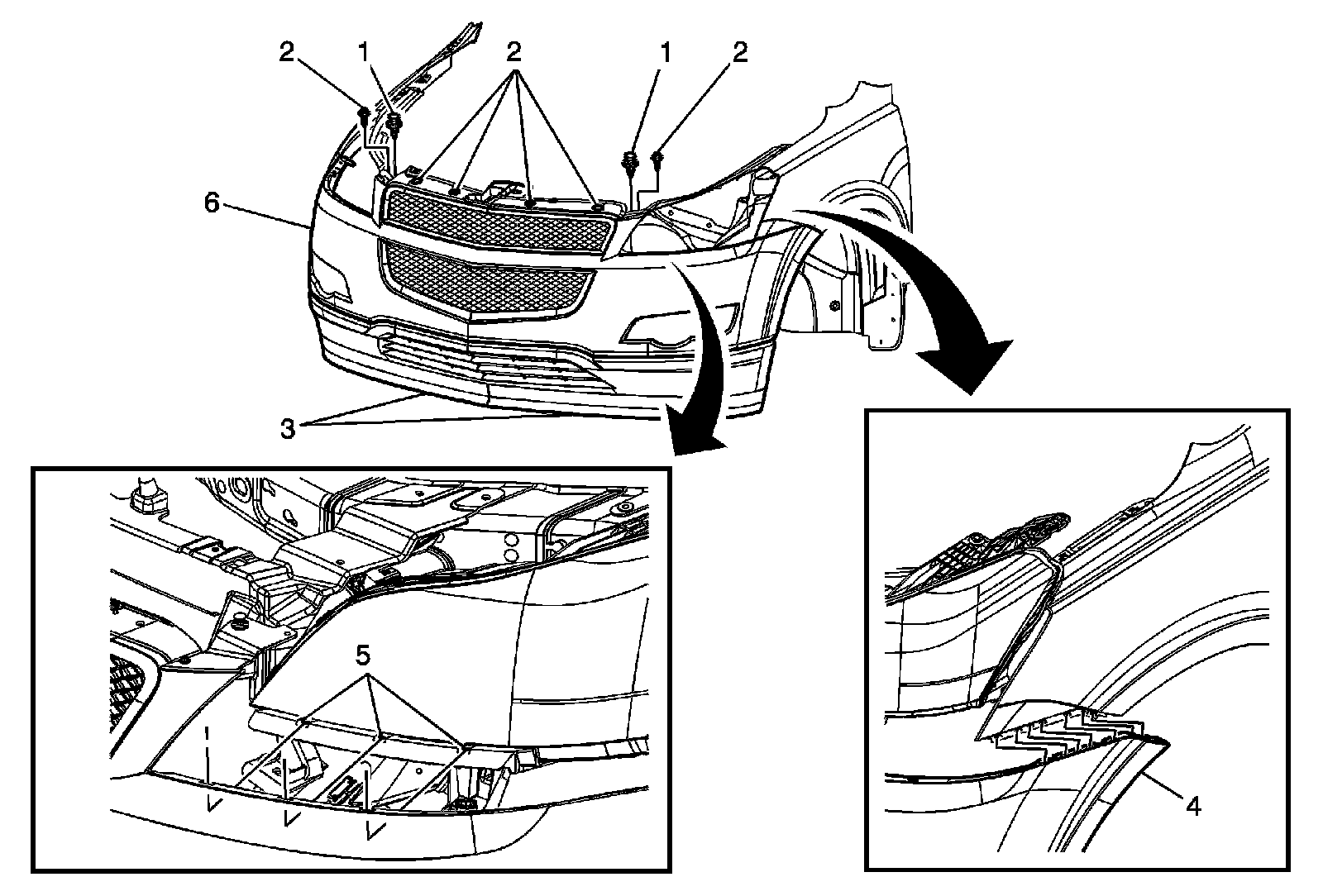

1Front Bumper Fascia Push-Pin (Qty: 2)

2Front Bumper Fascia Screw (Qty: 6)
Caution:Refer to Fastener Caution .

Procedure
Remove the front bumper fascia screws.
Tighten6 N �m (53 lb in)

3Front Bumper Lower Fascia Bolt (Qty: 2)Tighten 6 N �m (53 lb in)

4Front Bumper Fascia Fender Tab
Tip Carefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the fender.

5Front Bumper Fascia Headlamp Bracket
Tip Carefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the headlamp bracket.

6Front Bumper Fascia

Procedure

1.Disconnect any electrical connectors.

2.Transfer parts as needed.
