Front Bumper Fascia Replacement (Enclave)

Front Bumper Fascia Replacement (Enclave)

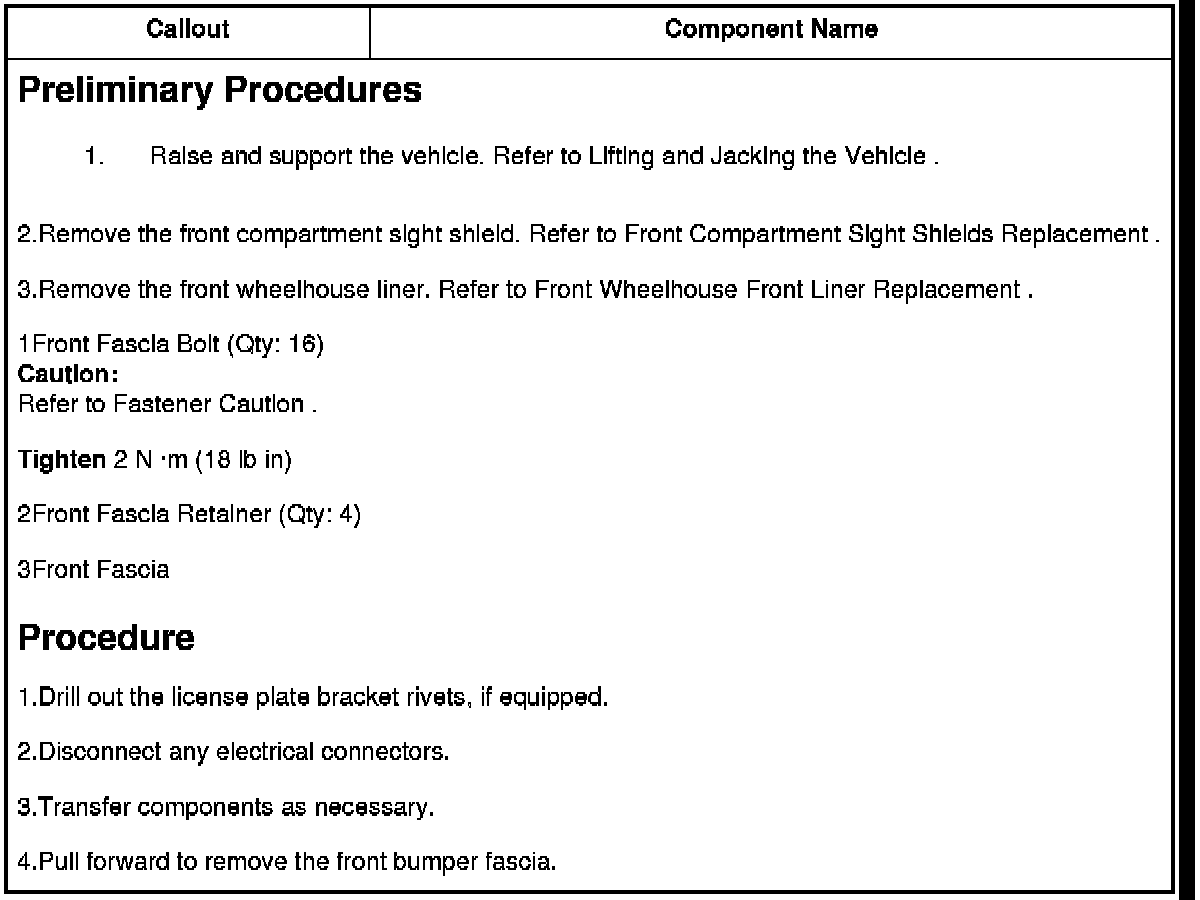

2.Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .

3.Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .

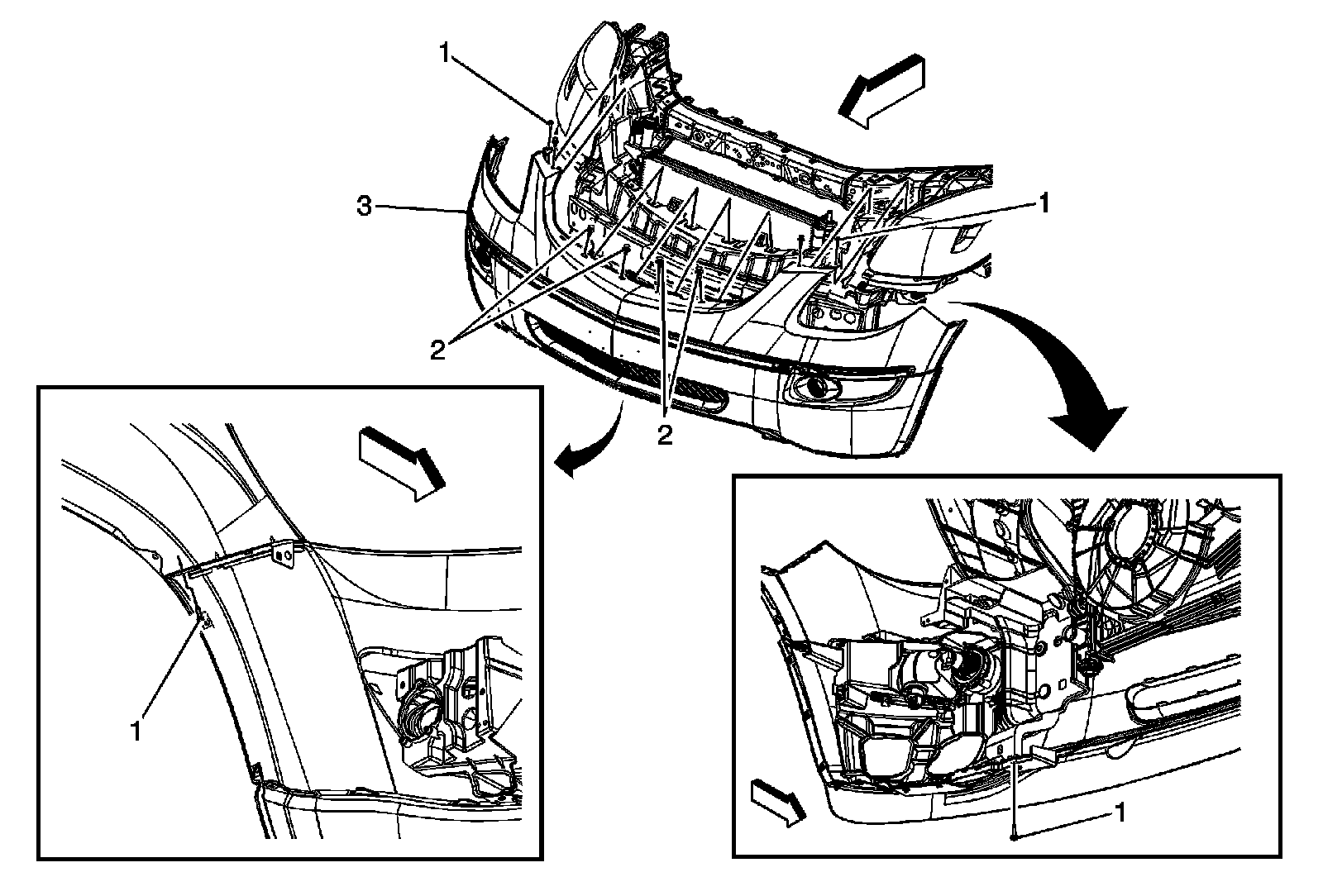

1Front Fascia Bolt (Qty: 16)
Caution:Refer to Fastener Caution .
Tighten 2 N �m (18 lb in)

2Front Fascia Retainer (Qty: 4)

3Front Fascia

Procedure

1.Drill out the license plate bracket rivets, if equipped.

2.Disconnect any electrical connectors.

3.Transfer components as necessary.

4.Pull forward to remove the front bumper fascia.
