Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Service and Repair >> Audio System Transceiver Module Replacement (U42/C3U)

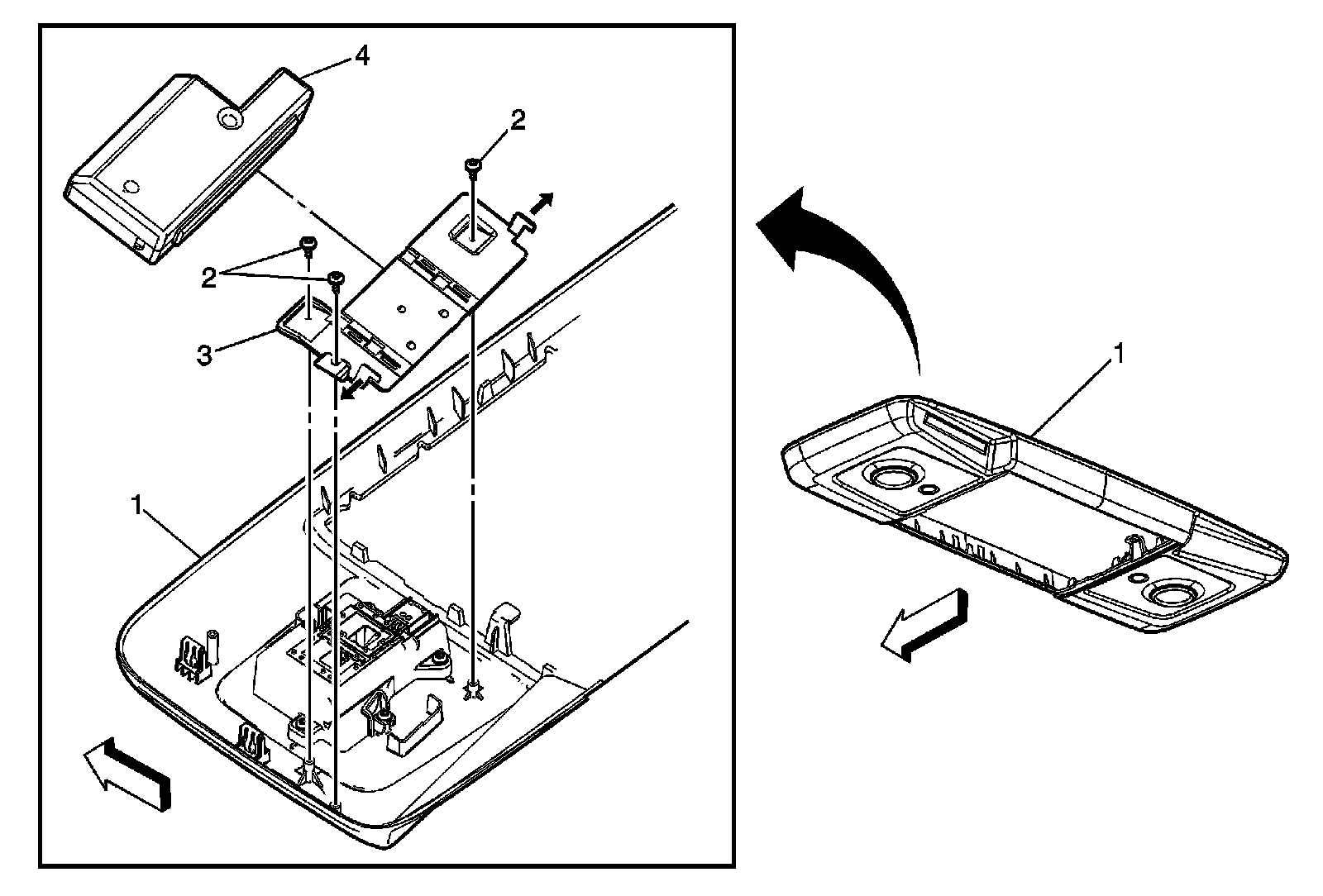

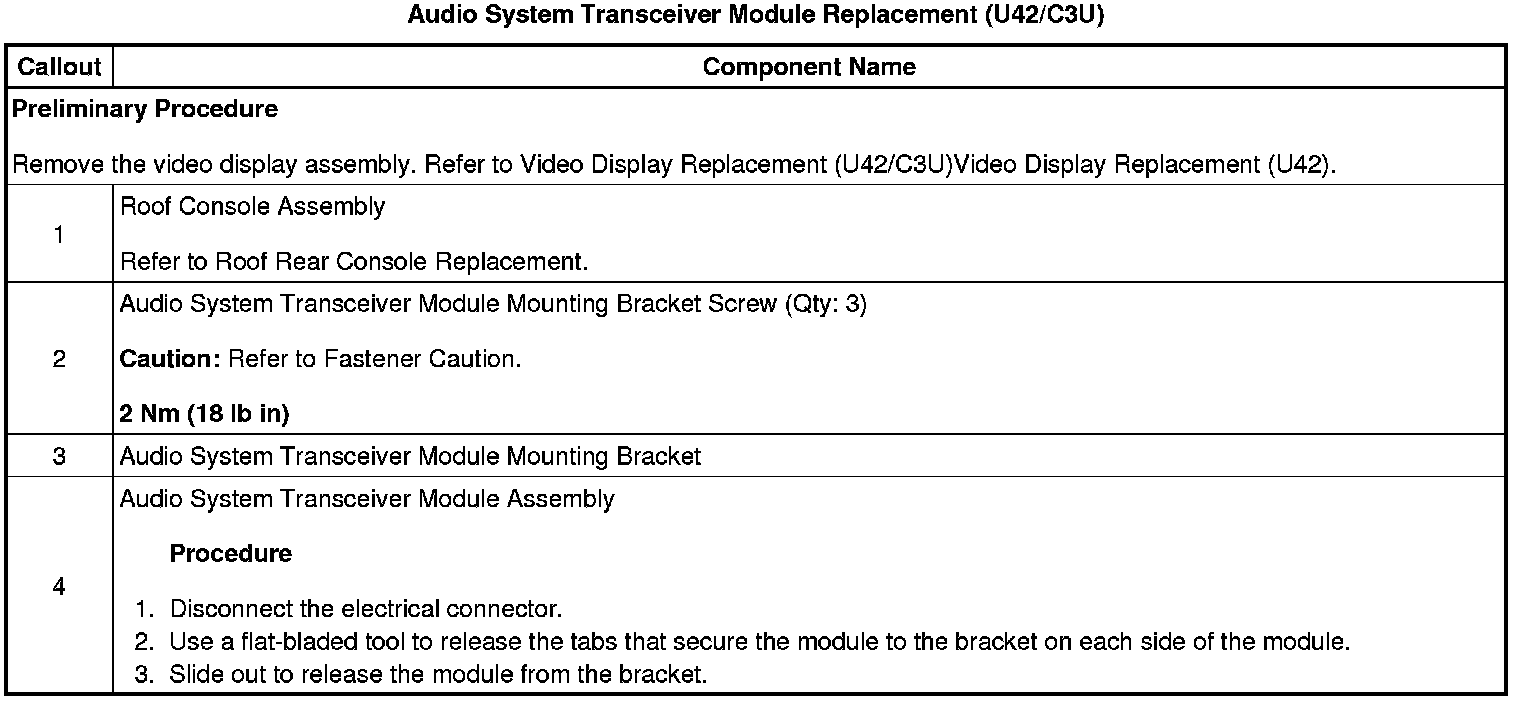

Audio System Transceiver Module Replacement (U42/C3U)




Audio System Transceiver Module Replacement (U42/C3U)
