P0621
DTC P0621
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0621
-
Generator L-Terminal Circuit

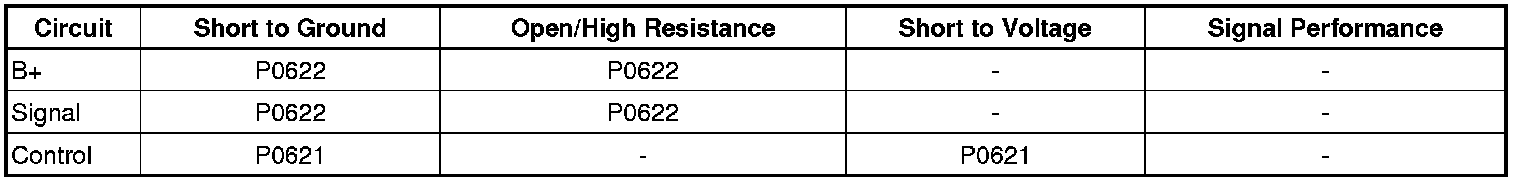

Diagnostic Fault Information

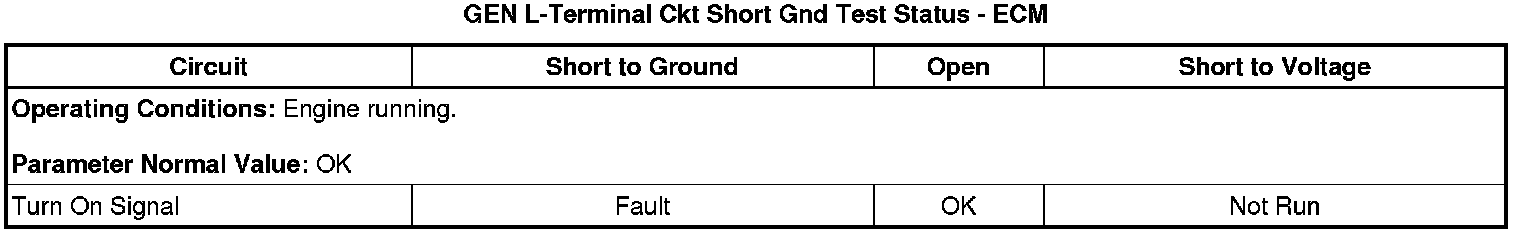

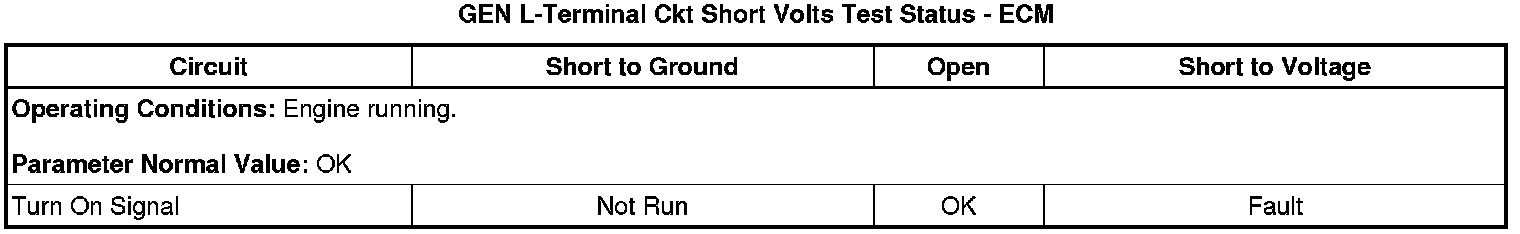

Typical Scan Tool Data
Circuit/System Description
The engine control module (ECM) uses the generator turn ON control circuit, or L-terminal circuit, to control the load of the generator on the engine. A high side driver in the ECM applies a voltage to the voltage regulator. This signals the voltage regulator to turn the field circuit ON and OFF. The ECM monitors the state of the generator turn ON control circuit. The ECM should detect low voltage on generator turn ON control circuit when the ignition is ON and the engine is OFF, or when the charging system malfunctions. With the engine running, the ECM should detect high voltage on the generator turn ON control circuit.
Conditions for Running the DTC
The engine is running.
Conditions for Setting the DTC
The ECM detects low voltage on the generator turn ON control circuit for 15 seconds.
Action Taken When the DTC Sets
* The charge indicator turns ON.
* The driver information center (DIC) displays the SERVICE BATTERY CHARGING SYSTEM message.
Conditions for Clearing the DTC
* The DTC passes when condition for setting the DTC is no longer present.
* The charge indicator and DIC message turn OFF when the DTC passes.
Reference Information
Schematic Reference
Starting and Charging Schematics Electrical Diagrams
Connector End View Reference
Component Connector End Views A/C Compressor Clutch
Description and Operation
Charging System Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Verification
Engine running, observing the following scan tool ECM circuit status parameters.
* GEN L-Terminal Ckt Short Gnd Test Status
* GEN L-Terminal Ckt Short Volts Test Status
The reading for each parameter should be OK.
Circuit/System Testing
1. Verify that a test lamp illuminates between the G13 generator B+ terminal A X2 and ground.
• If the test lamp does not illuminate and the circuit fuse is good
1. Ignition OFF.
2. Test for less than 2 ohms in the B+ circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
• If the test lamp does not illuminate and the circuit fuse is open
1. Ignition OFF.
2. Test for greater than 100 ohms between the B+ circuit and ground.
• If 100 ohms or less, repair the short to ground on the circuit.
• If greater than 100 ohms, replace the generator.
• If the test lamp illuminates
2. Ignition OFF, disconnect the X1 harness connector at the generator, ignition ON, command the GEN-L Terminal circuit ON to 85% with a scan tool.
3. Test for 3.5V or greater between the control circuit terminal 1 X2 and ground.
• If less than 3.5V
1. Ignition OFF, disconnect the harness connectors at the ECM.
2. Test for infinite resistance between the control circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the control circuit end to end.
• If greater the 2 ohms, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the ECM.
• If 3.5V or greater
1. Ignition OFF, disconnect the harness connectors at the ECM.
2. Test for less than 1 V between the control circuit and ground.
• If less than 1 V, replace the G13 Generator.
• If 1 V or greater, repair the short to voltage on the circuit.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Generator Replacement Service and Repair
* Control Module References Programming and Relearning for ECM replacement, setup, and programming.
