B2645
DTC B2645
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC B2645 03
-
Ambient Light Sensor Circuit Below Threshold
DTC B2645 07
-
Ambient Light Sensor Circuit Above Threshold

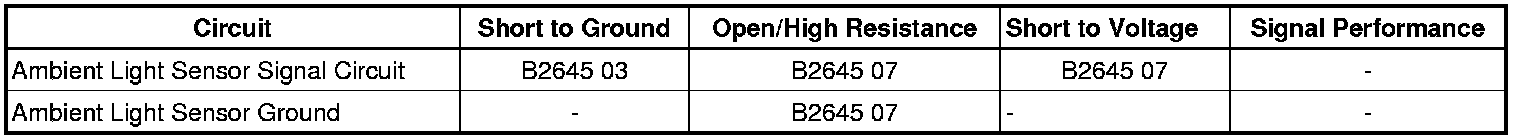

Diagnostic Fault Information
Circuit/System Description
The ambient light sensor is used to monitor outside lighting conditions. The body control module (BCM) provides a 5 V reference signal to the ambient light sensor. The sensor is a variable resistor, it's resistance changes as outside lighting conditions changes. With the headlamp switch in the AUTO position, the BCM monitors the sensor signal circuit to determine if the outside lighting conditions are correct for either daytime running lamps (DRL) or headlamp low beam operation. In daylight conditions, the BCM will command the DRLs ON. In low light conditions, the BCM will command the low beam headlamps ON.
Conditions for Running the DTC
* The ignition is ON.
* The headlamp switch in the AUTO position.
Conditions for Setting the DTC
DTC B2645 03
The DTC will set when the BCM detects the ambient light sensor signal voltage is below 0.196 V.
DTC B2645 07
The DTC will set when the BCM detects the ambient light sensor signal voltage is above 4.9 V.
Action Taken When the DTC Sets
The BCM defaults to low light status and commands the low beam headlamps ON.
Conditions for Clearing the DTC
A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics
Connector End View Reference
Component Connector End Views A/C Compressor Clutch
Description and Operation
Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the ambient light sensor.
2. Ignition OFF, scan tool disconnected, ALL doors closed, test for less than 10 ohms between the ground circuit terminal listed below and ground.
* Terminal B (with C67)
* Terminal C (with CJ2)
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Ignition ON, verify the scan tool Ambient Light Sensor parameter is greater than 4.65 volts.
• If less than the specified range, test the signal circuit for a short to ground. If the circuit tests normal, replace the BCM.
4. Install a 3 A fused jumper wire between the signal circuit terminal and the ground circuit terminal listed below. Verify the scan tool Ambient Light Sensor parameter is less than 0.196 V.
* Terminal A and terminal B (with C67)
* Terminal D and terminal C (with CJ2)
• If greater than the specified range, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.
5. If all circuits test normal, replace the ambient light sensor.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (Without UV6) Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (Without UV6)Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (With UV6) Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (With UV6)
* Control Module References Programming and Relearning for BCM replacement, programming and setup
