B2610
DTC B2610
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B2610 00
-
Passenger Compartment Dimming 1 Circuit

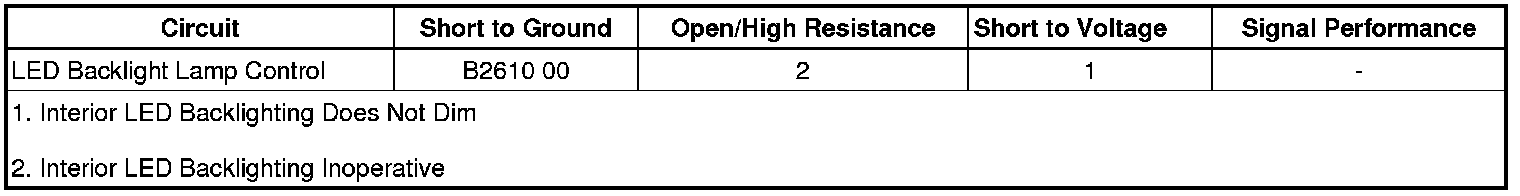

Diagnostic Fault Information
Circuit/System Description
The body control module (BCM) supplies a voltage reference through the instrument panel (I/P) dimming voltage reference circuit to the interior lamp dimmer switch, which is part of the headlamp switch. When the dimmer switch is placed in a desired brightness position, reference voltage is applied through the dimmer switch rheostat and the I/P lamps dimmer switch signal circuit to the BCM. The BCM interprets this voltage signal, then applies a pulse width modulated voltage through the LED backlight lamp control circuit illuminating the interior backlighting components.
Conditions for Running the DTC
* The ignition is ON.
* The headlamps or park lamps ON.
Conditions for Setting the DTC
The BCM detects a short to ground on the LED backlight lamp control circuit.
Action Taken When the DTC Sets
The BCM will not DIM or illuminate any LED backlighting supplied by the backlight lamp control circuits.
Conditions for Clearing the DTC
A history DTC will clear once 100 consecutive malfunction ignition cycles have occurred.
Reference Information
Schematic Reference
Interior Lights Dimming Schematics Interior Lights Dimming Schematics
Connector End View Reference
Component Connector End Views A/C Compressor Clutch
Description and Operation
Interior Lighting Systems Description and Operation Interior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Verification
Ignition ON, command LED Dimming ON and OFF with a scan tool. The LED Dimming components should turn ON and OFF when changing between the commanded states.
Circuit/System Testing
Note:
Each back lighted component may need to be disconnected to isolate a short to voltage or short to ground. Use the schematic to identify the following:
* Back lighted components the vehicle is equipped with.
* Component locations on the back lighting dimming control circuit
* Each component's control and ground circuit terminals
1. Ignition OFF, disconnect the harness connector at any component with inoperative backlighting.
2. Ignition OFF, scan tool disconnected, interior lamps OFF, doors CLOSED, test for less than 5 ohms between the ground circuit and ground.
• If greater than the specified value, test the ground circuit for an open/high resistance.
3. Connect a test lamp between the control circuit terminal and ground.
4. Command the Incandescent Dimming Control ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.
• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the BCM.
• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the BCM.
5. If all circuits test normal, test or replace the component with the inoperative backlighting.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Refer to the appropriate replacement procedure for the lighting component that requires replacement.
* Control Module References Programming and Relearning for BCM replacement, programming and setup
