B2575




DTC B2575

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2575 00

-
Headlamp Control Circuit

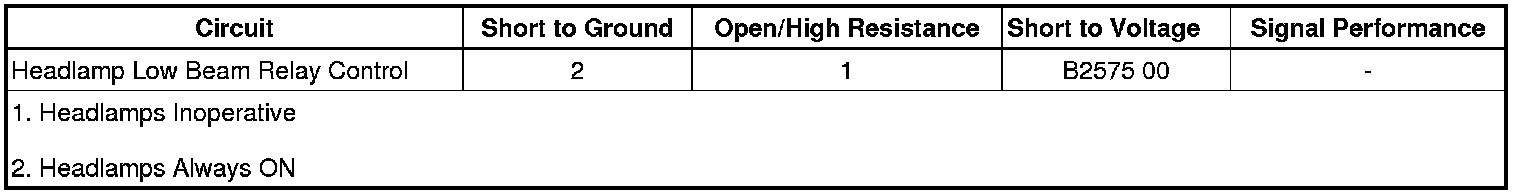

Diagnostic Fault Information






Circuit/System Description

The low beam headlamps are controlled by the body control module (BCM). The BCM grounds the headlamp low beam relay control circuit in order to energize the HID/LO BEAM relay coil. The HID/LO BEAM relay then sends voltage to the low beam headlamps.

Conditions for Running the DTCs

* The headlamps are commanded ON.

* The headlamp dimmer switch must be in the low beam position.

Condition for Setting the DTC

The headlamp low beam relay control circuit is shorted to voltage.

Action Taken When the DTC Sets

The BCM turns off the headlamp low beam relay control for the remainder of the ignition cycle.

Conditions for Clearing the DTC

* The conditions for setting the DTC are no longer present.

* A history DTC clears after 100 malfunction-free ignition cycles.

Reference Information

Schematic Reference

Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics

Connector End View Reference

Component Connector End Views A/C Compressor Clutch

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Ignition ON, command the Low Beams ON and OFF with a scan tool. The low beam headlamps should turn ON and OFF when changing between the commanded states.

Circuit/System Testing

1. Ignition OFF, disconnect the headlamps low beam relay.

2. Ignition ON, verify that a test lamp does not illuminate between the control circuit terminal 87 and ground.

• If the test lamp illuminates, test the control circuit for a short to voltage.

3. Verify that a test lamp illuminates between the B+ circuit terminal 85 and ground.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. Verify that a test lamp illuminates between the B+ circuit terminal 30 and ground.

• If the test lamp does not illuminate, test the B+ circuit for an open/high resistance.

5. Disconnect the harness connector at the appropriate headlamp - low beam.

6. Test for less than 5 ohms between the ground circuit terminal listed below and ground:

* RPO WDA/X88 - terminal A

* RPO Z88 - terminal B

* RPO W49/TVD - terminal 6

• If greater than the specified range, test the ground circuit for an open/high resistance.

7. Connect the harness connector at the headlamp - low beam.

8. Connect a 10 A fused jumper wire between the B+ circuit terminal 30 and the control circuit terminal 87. Verify the headlamp - low beam is activated.

• If the headlamp - low beam does not activate and the circuit fuse is good, test the control circuit for an open/high resistance. If the circuit tests normal, test or replace the headlamp - low beam.

• If the headlamp - low beam does not activate and the circuit fuse is open, test the control circuit for a short to ground. If the circuit tests normal, test or replace the headlamp - low beam.

9. Connect a test lamp between the B+ circuit terminal 85 and the control circuit terminal 86.

10. Command the Low Beams ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to ground. If the circuit tests normal, replace the BCM.

• If the test lamp is always OFF, test the control circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

11. If all circuits test normal, test or replace the headlamps low beam relay.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Relay Replacement (Within an Electrical Center) Relay Replacement (Within an Electrical Center)Relay Replacement (Attached to Wire Harness) Relay Replacement (Attached to Wire Harness)

* Headlamp Replacement (Acadia) Headlamp Replacement (Traverse with TVP) Headlamp Replacement (Traverse with TVP)Headlamp Replacement (Enclave)

* Headlamp Bulb Replacement (Traverse with TVP) Headlamp Bulb Replacement (Traverse with TVP)Headlamp Bulb Replacement (Low Beam without T96) Headlamp Bulb Replacement (Low Beam without T96)Headlamp Bulb Replacement (High Beam without T96) Headlamp Bulb Replacement (High Beam without T96)

* Control Module References Programming and Relearning for BCM replacement, programming and setup
