Power Seats

DTC B1395

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B1395 02

-
Device Voltage Reference Output Circuit Short to Ground

DTC B1395 05

-
Device Voltage Reference Output Circuit Short to Battery or Open

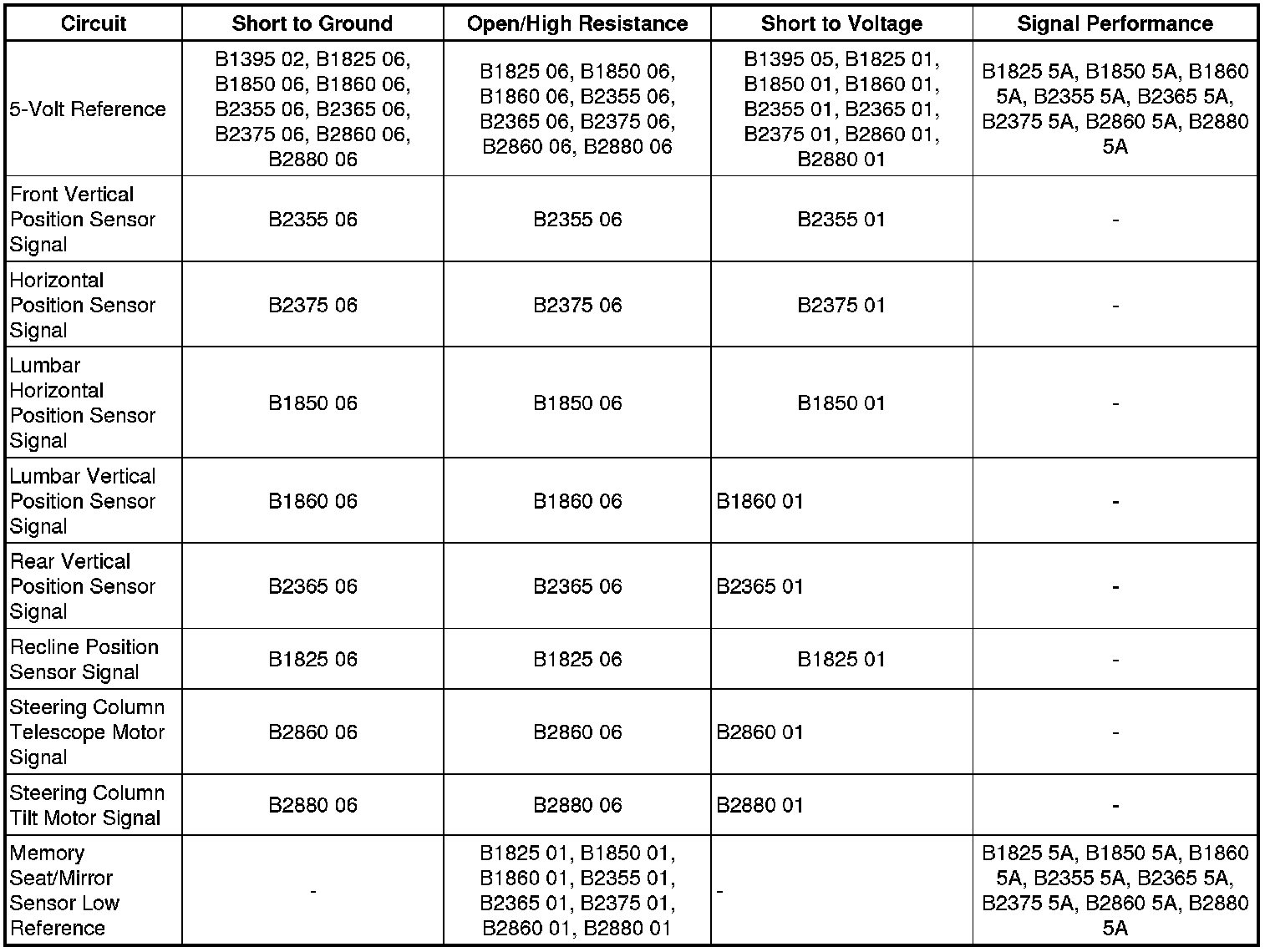

Diagnostic Fault Information






Circuit/System Description

The memory seat module (MSM) supplies a 5-volt reference voltage to the driver seat and tilt/telescoping steering column position sensors. The MSM monitors this reference voltage to ensure the accuracy of the voltages being returned from the sensors. If the voltage exceeds the normal operating range, errors will occur in the memory recall operations of the seat and tilt/telescopic steering.

Conditions for Running the DTC

The memory seat module must be powered.

Conditions for Setting the DTC

The following conditions exist for more than 1 second:

B1395 02

The reference voltage is less than 4.8 volts.

B1395 05

The reference voltage is greater than 5.2 volts.

Action Taken When the DTC Sets

All memory recall functions will be disabled.

Conditions for Clearing the DTC

* The current DTC will clear 3 seconds after the reference voltage returns to normal operating range, and the ignition is cycled OFF then back to ACC or RUN.

* The history DTC will clear after 50 consecutive fault-free ignition cycles have occurred.

Diagnostic Aids

An internal short to ground in one of the position sensors may set this DTC.

Reference Information

Schematic Reference

* Driver Seat Schematics Driver Seat Schematics

* Tilt/Telescoping Steering Column Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views A/C Compressor Clutch

Description and Operation

Memory Seats Description and Operation Memory Seats

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector for all position sensors connected to the 5-volt reference circuit.

2. Ignition ON, observe all scan tool sensor parameters for Seat 1 Info and Column Info. The readings should be 0.0 volts.

• If greater than the specified value, test the appropriate signal circuits listed below for a short to voltage. If the circuit tests normal, replace the MSM.

* Horizontal position sensor terminal 2

* Front vertical position sensor terminal 2

* Rear vertical position sensor terminal 2

* Recline position sensor terminal 2

* Lumbar horizontal position sensor terminal 3

* Lumbar vertical position sensor terminal 3

* Tilt position sensor terminal A X2

* Telescope position sensor terminal D X2

3. Ignition ON, test for 4.8-5.2 volts between the 5-volt reference circuit at any one of the position sensors and ground.

• If less than the specified range, test the 5-volt reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the MSM.

• If greater than the specified range, test the 5-volt reference circuit for a short to voltage. If the circuit tests normal, replace the MSM.

4. Connect each position sensor one at a time and verify that the DTC does not set as current.

• If the DTC sets as current, replace the appropriate position sensor.

5. If all circuits test normal, replace the MSM.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Driver or Passenger Seat Lumbar Support Replacement Driver or Passenger Seat Lumbar Support Replacement

* Front Seat Recliner Actuator Motor Replacement Service and Repair

* Steering Column Replacement Steering Column Replacement

* Control Module References Programming and Relearning for MSM replacement, setup, and programming
