X324

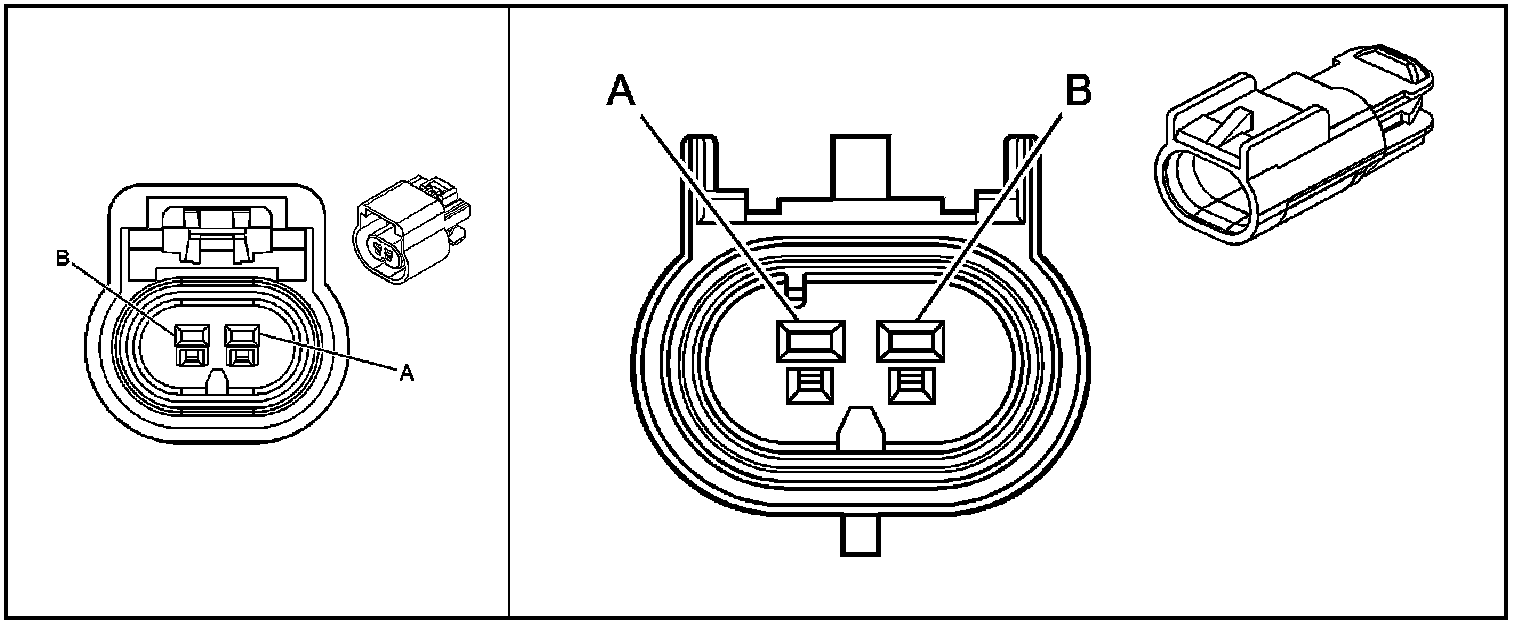

Inline Harness Connector End Views

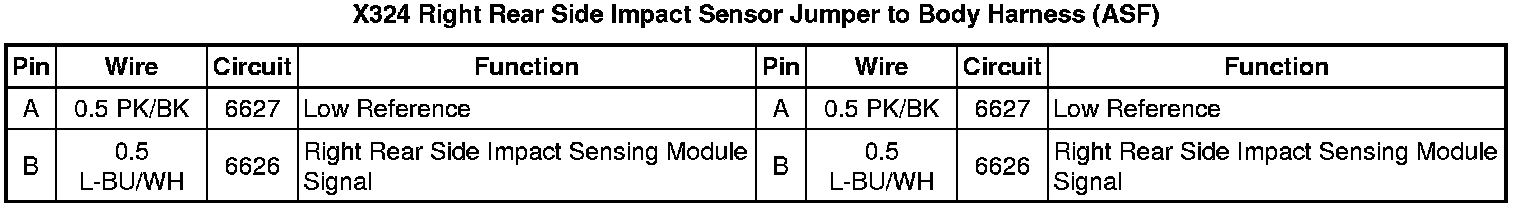

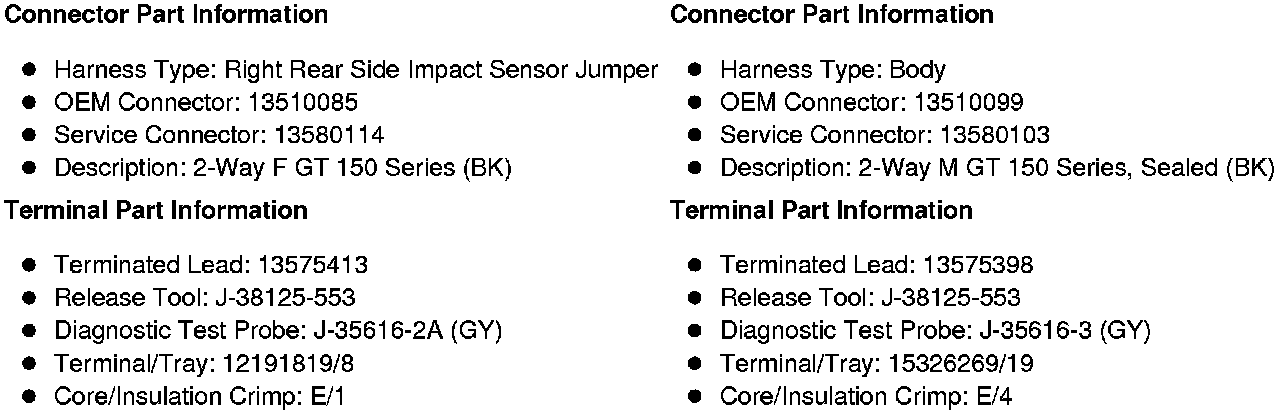

X324 Right Rear Side Impact Sensor Jumper to Body Harness (ASF)
