Home >> Chevy Truck >> 2012 >> Express 4500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X200 - X299 >> X222

X222




Inline Harness Connector End Views

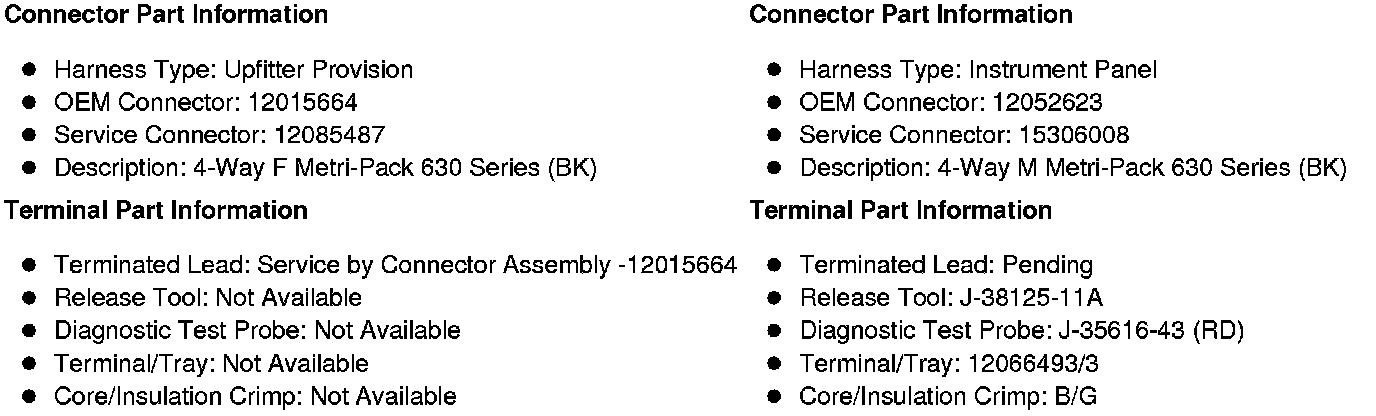

X222 Upfitter Provision Harness to Instrument Panel Harness (YF2 or YF7)
