X163

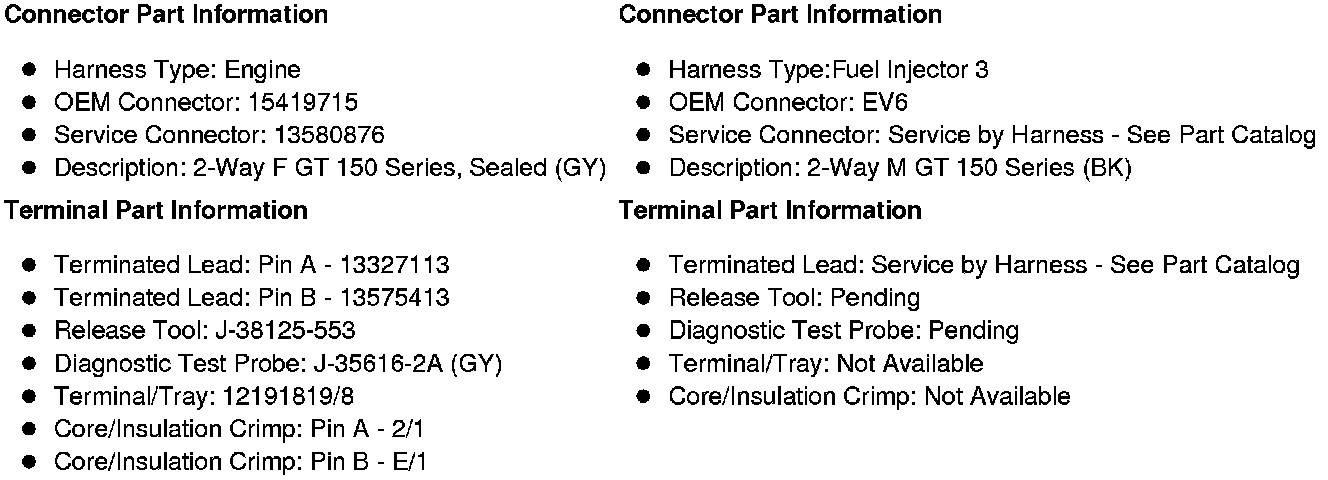

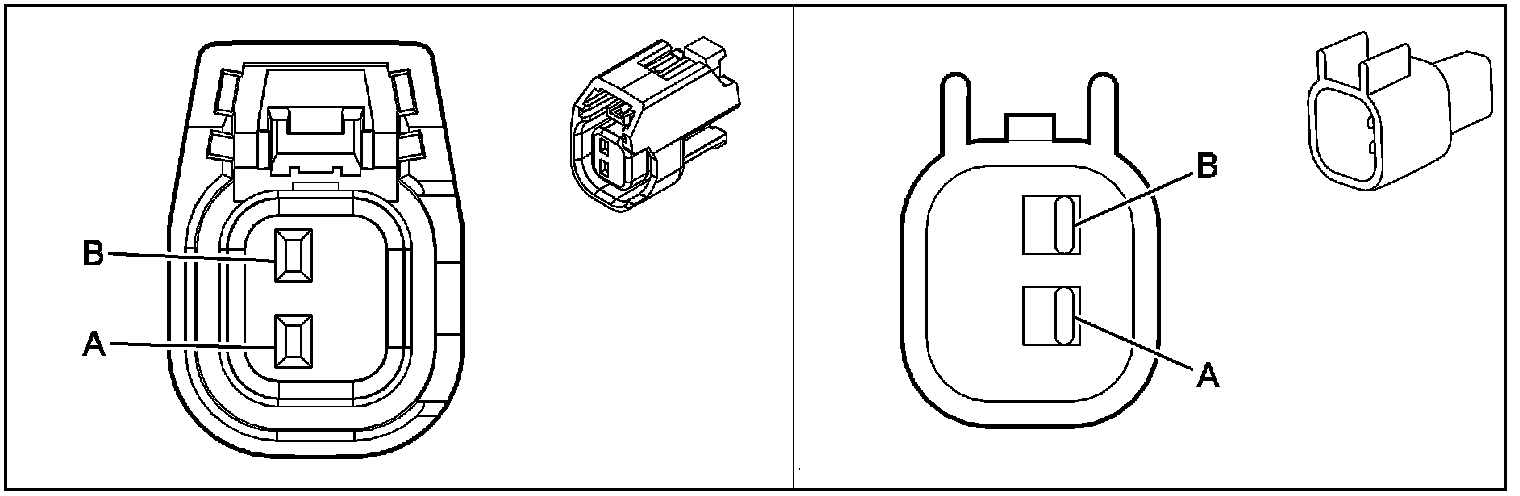

Inline Harness Connector End Views

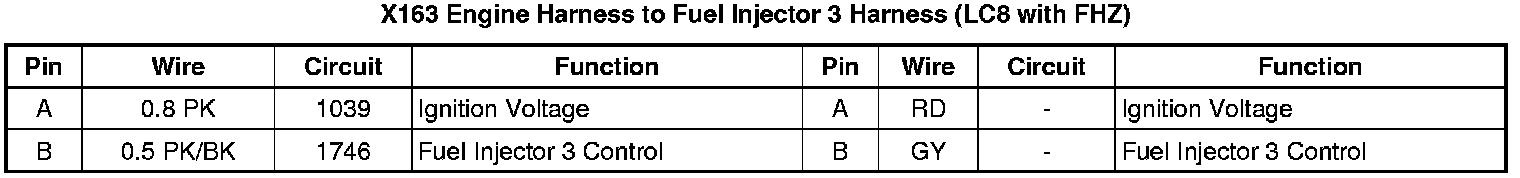

X163 Engine Harness to Fuel Injector 3 Harness (LC8 with FHZ)
