Home >> Chevy Truck >> 2012 >> Express 4500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Reductant Pump

Reductant Pump




Component Connector End Views

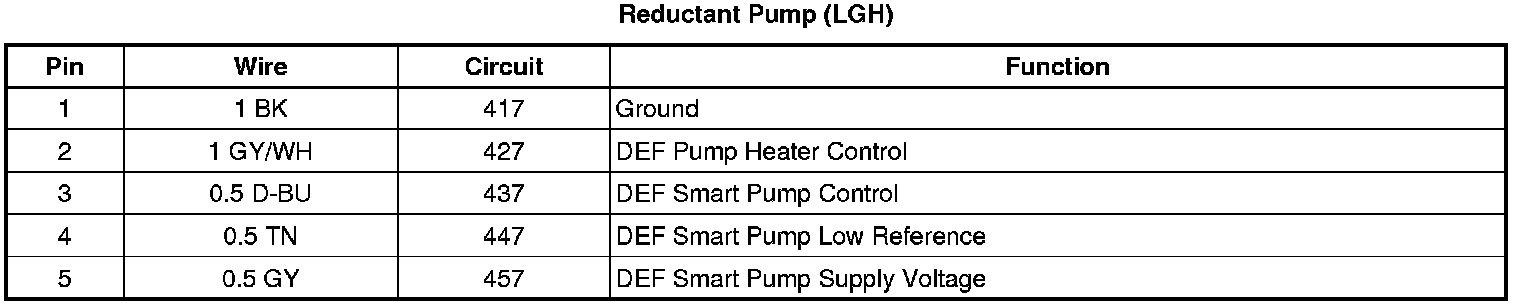

Reductant Pump (LGH)
