Headlamp- Left Low Beam (Composite)
Headlamp- Left Low Beam (Composite)
Component Connector End Views

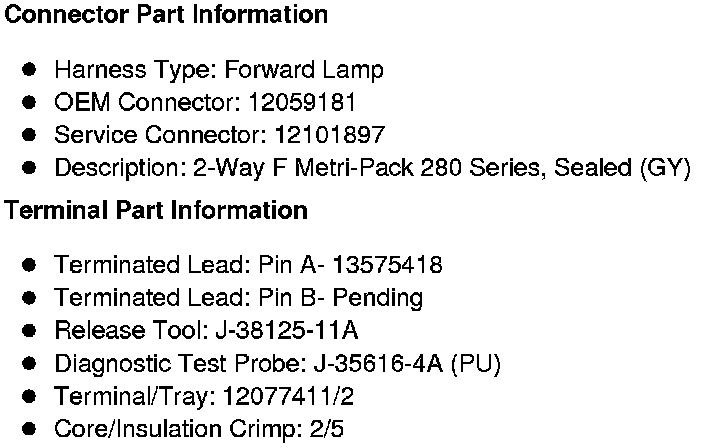

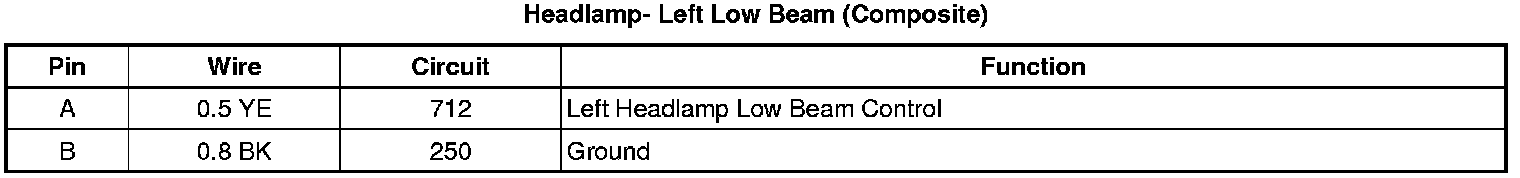

Headlamp- Left Low Beam (Composite)
