Exhaust Gas Recirculation (EGR) Valve

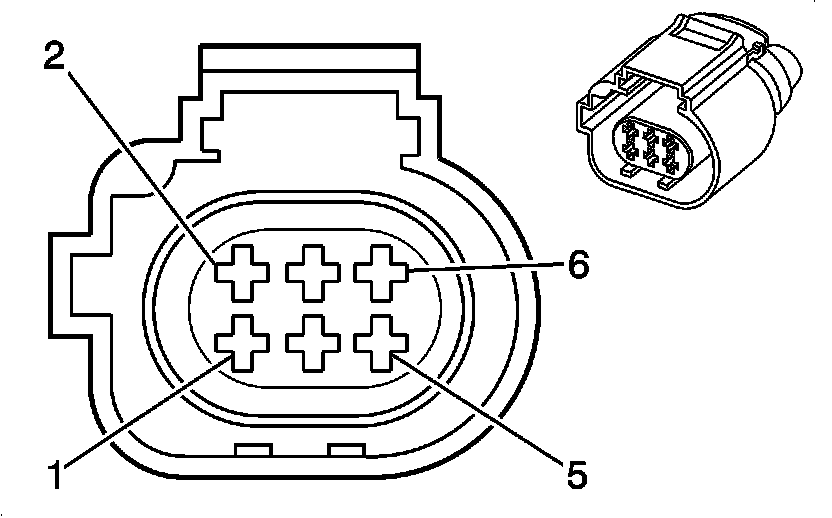

Component Connector End Views

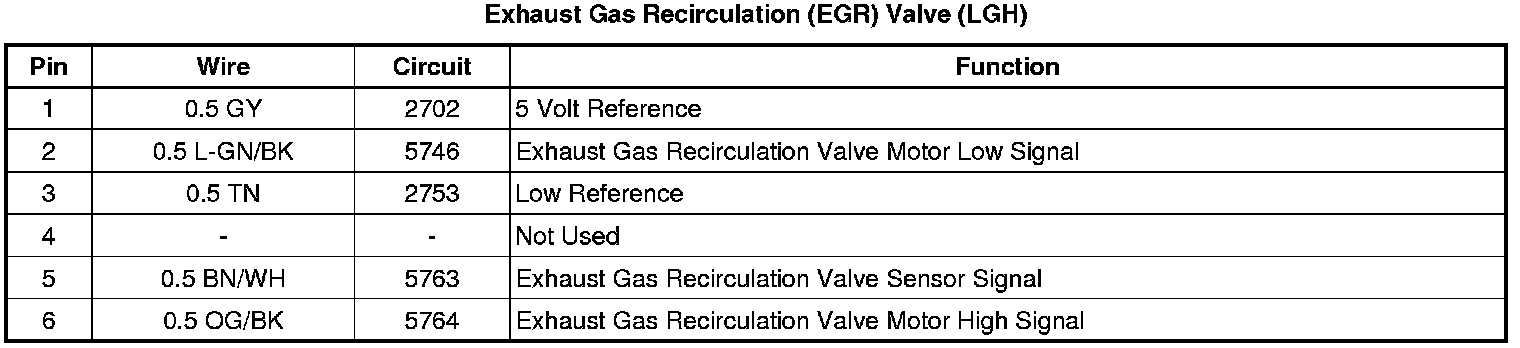

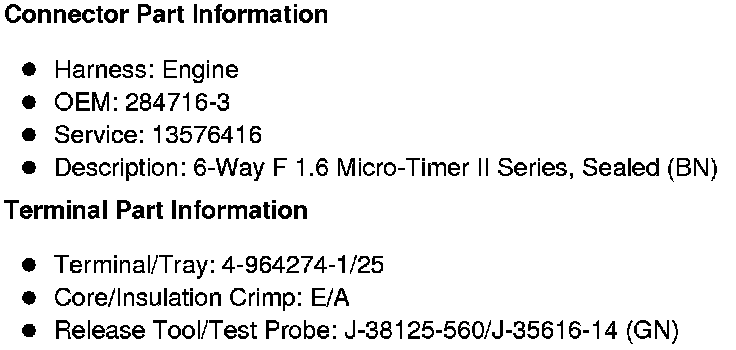

Exhaust Gas Recirculation (EGR) Valve (LGH)
