Home >> Chevy Truck >> 2012 >> Express 4500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Exhaust Gas NOx Sensor >> Diagrams >> Nitrogen Oxides Sensor 2

Nitrogen Oxides Sensor 2

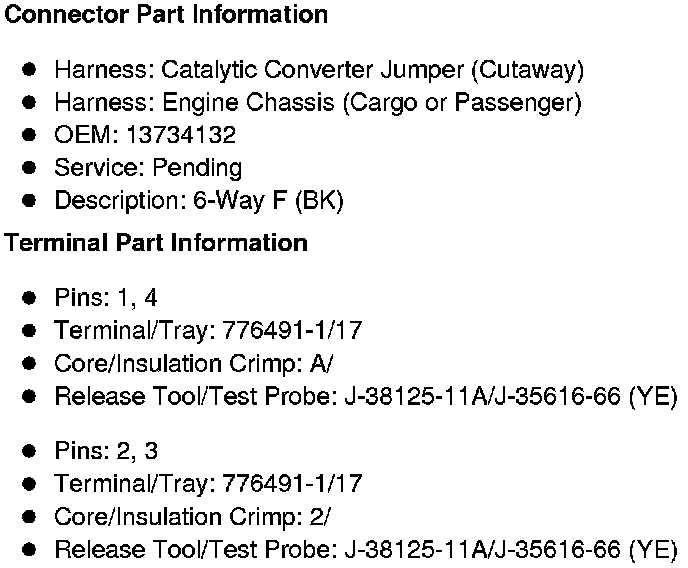

Component Connector End Views

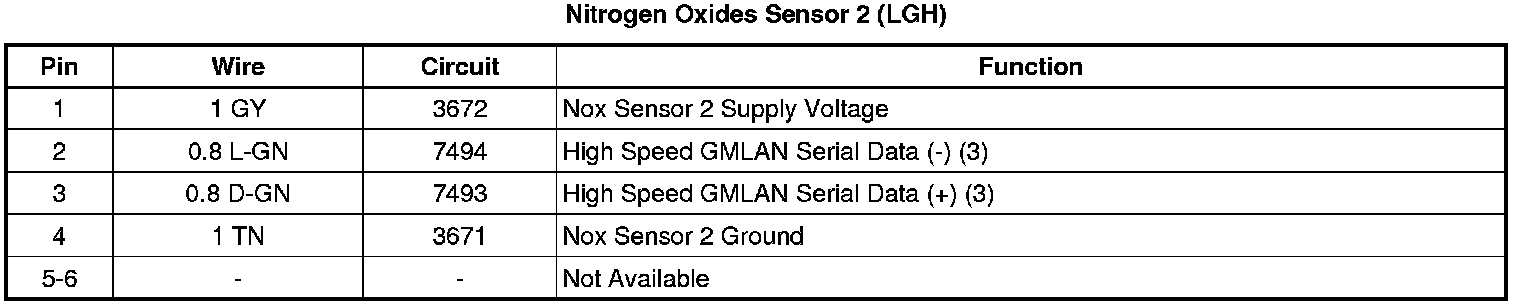

Nitrogen Oxides Sensor 2 (LGH)
