P204B
DTC P204B
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC P204B
-
Reductant Pressure Sensor Performance

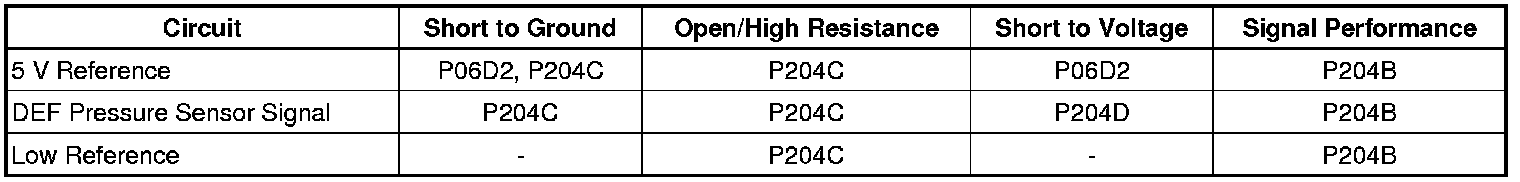

Diagnostic Fault Information

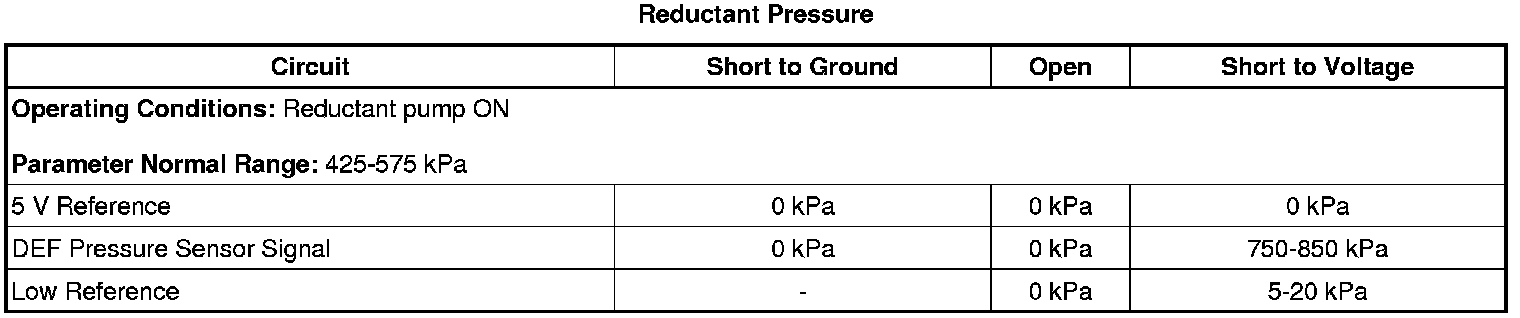

Typical Scan Tool Data
Circuit/System Description
The reductant pressure sensor responds to pressure changes in the reductant system. The engine control module (ECM) supplies 5 V to the reductant pressure sensor on the 5 V reference circuit and provides a ground on the low reference circuit. The reductant pressure sensor provides a signal to the ECM on the sensor signal circuit which is relative to the pressure changes in the reductant system.
Condition for Running the DTC
* DTCs P204C or P204D are not set.
* The ignition is ON.
* The ambient air temperature is greater than -30°C (-22°F).
* The exhaust gas temperature sensor 2 is less than 170°C (338° F).
* The DTC runs continuously when the above conditions are met.
Conditions for Setting the DTC
The ECM detects the difference between the reductant pressure and the BARO pressure is greater than 50 kPa for greater than 1 s.
Action Taken When the DTC Sets
DTC P204B is a Type A DTC.
The ECM inhibits the reductant system.
Conditions for Clearing the DTC
DTC P204B is a Type A DTC.
Reference Information
Schematic Reference
Engine Controls Schematics [1][2]Electrical Diagrams
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Description and Operation
* Diesel Exhaust Fluid (DEF) Warning Strategy (DEF Quality) Diesel Exhaust Fluid (DEF) Warning Strategy (DEF Quality)Diesel Exhaust Fluid (DEF) Warning Strategy (DEF Level) Diesel Exhaust Fluid (DEF) Warning Strategy (DEF Level)Diesel Exhaust Fluid (DEF) Warning Strategy (Emission Control) Diesel Exhaust Fluid (DEF) Warning Strategy (Emission Control)Diesel Exhaust Fluid (DEF) Warning Strategy (Anti-Tampering) Diesel Exhaust Fluid (DEF) Warning Strategy (Anti-Tampering)
* Exhaust Aftertreatment System Description Emission Control Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Ignition ON, observe the scan tool Reductant Pressure. The reading should be 0 kPa.
2. Observe the DTC information with a scan tool. DTC P06D2 should not set.
• If a DTC is set, refer to DTC P0641, P0651, P0697, P06A3, P06D2, or P06D6 P0641 for further diagnosis.
3. Ignition ON, compare the scan tool BARO pressure sensor parameter to the reading in the Altitude Versus Barometric Pressure Altitude Versus Barometric Pressure table. The reading should be within the specified range indicated in the table.
• If not within the specified range, refer to DTC P0106 P0106 for further diagnosis.
4. Ignition OFF and all vehicle systems OFF. It may take up to 2 minutes for all vehicle systems to power down. Observe the scan tool Reductant Pressure when turning the ignition ON. The reading should be 0 kPa.
• If greater than the specified value, refer to DTC P20A1 P20A1 for further diagnosis.
5. Observe the DTC information with a scan tool. DTC P204B should not set.
6. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
Circuit/System Testing
1. Ignition OFF, disconnect the 24-way harness connector at the DEF Tank. Refer to Inline Harness Connector End Views X100 for connector identification.
Note:
Testing for steps 2-4 is performed on the ECM side of the harness connector.
2. Ignition OFF and all vehicle systems OFF. It may take up to 2 minutes for all vehicle systems to power down. Test for less than 5 ohms between the low reference circuit terminal C8 and ground.
• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the K20 ECM.
3. Ignition ON, test for 4.8-5.2 V between the 5 V reference circuit terminal A8 and ground.
• If less than the specified range, test the 5 V reference circuit for a short to ground or open/high resistance. If the circuit tests normal, replace the K20 ECM.
• If greater than the specified range, test the 5 V reference circuit for a short to voltage. If the circuit tests normal, replace the K20 ECM.
4. Verify the scan tool reductant pressure sensor parameter is 0 kPa.
• If greater than the specified value, test the signal circuit terminal B8 for a short to voltage. If the circuit tests normal, replace the K20 ECM.
5. Install a 3 A fused jumper wire between the signal circuit terminal B8 and the 5 V reference circuit terminal A8. Verify the scan tool reductant pressure sensor parameter is greater than 700 kPa (102 psi).
• If less than the specified value, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K20 ECM.
Note:
Testing for this step is performed on the DEF tank side of the harness connector.
6. Remove the DEF tank and test, inspect, and repair the items listed below. If all items test normal, replace the reductant pressure sensor.
* Restricted reductant components
* Restricted or plugged reductant lines
* Restricted or plugged Q62 reductant purge valve, stuck closed
* A skewed or shifted reductant pressure sensor.
* High resistance in the Q62 reductant pressure sensor circuits
* Poor connection at the 24-way harness connector
* Open or shorted DEF 5 V reference circuit
* Open or shorted DEF pressure sensor signal circuit
* Open DEF low reference circuit
Repair Instructions
* Emission Reduction Fluid Tank Replacement Emission Reduction Fluid Tank Replacement
* Perform the scan tool Reductant System Reset procedure after replacing the emission reduction fluid tank.
* Control Module References Control Module References for engine control module replacement, programming, and setup
Repair Verification
1. Install any components or connectors that have been removed or replaced during diagnosis.
2. Perform any adjustment, programming, or setup procedures that are required when a component or module is removed or replaced.
3. Clear the DTCs.
4. Ignition OFF, all vehicle systems OFF, this may take up to 2 minutes.
Note:
The diesel exhaust fluid (DEF) and ambient air temperatures must be greater than -7°C (+19°F) before proceeding with this procedure.
5. Ignition ON, command the Reductant System Leak Test ON with a scan tool. Allow the pressure to build for at least 2 minutes. The first 60 s, the system performs a system purge. Observe the scan tool Reductant Pressure sensor parameter. The reading should be between 400-650 kPa (58-94 psi) and there should be no leaks in the system.
6. Ignition OFF, all vehicle systems OFF, this may take up to 2 minutes.
7. Engine idling for 30 s.
8. Ignition OFF, all vehicle systems OFF, this may take up to 2 minutes.
9. Ignition ON, perform the Reductant System Data Reset with a scan tool in order to clear the DEF lamp.
• If the DEF lamp does not turn OFF, a condition with the system still exists.
