Exhaust Gas Recirculation (EGR) Temperature Sensor 2
Exhaust Gas Recirculation (EGR) Temperature Sensor 2

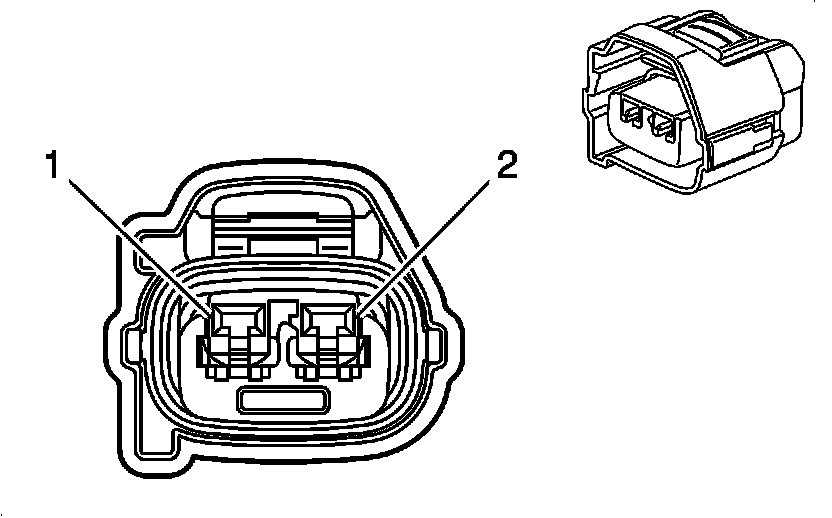

Component Connector End Views

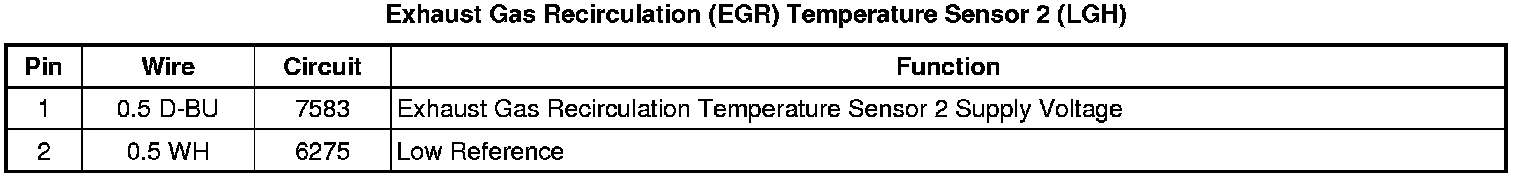

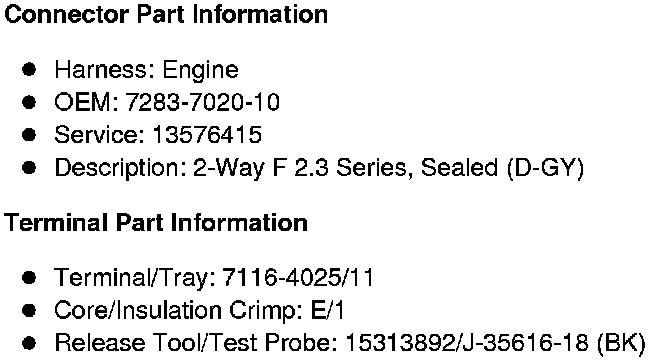

Exhaust Gas Recirculation (EGR) Temperature Sensor 2 (LGH)
