2. Starter Removal

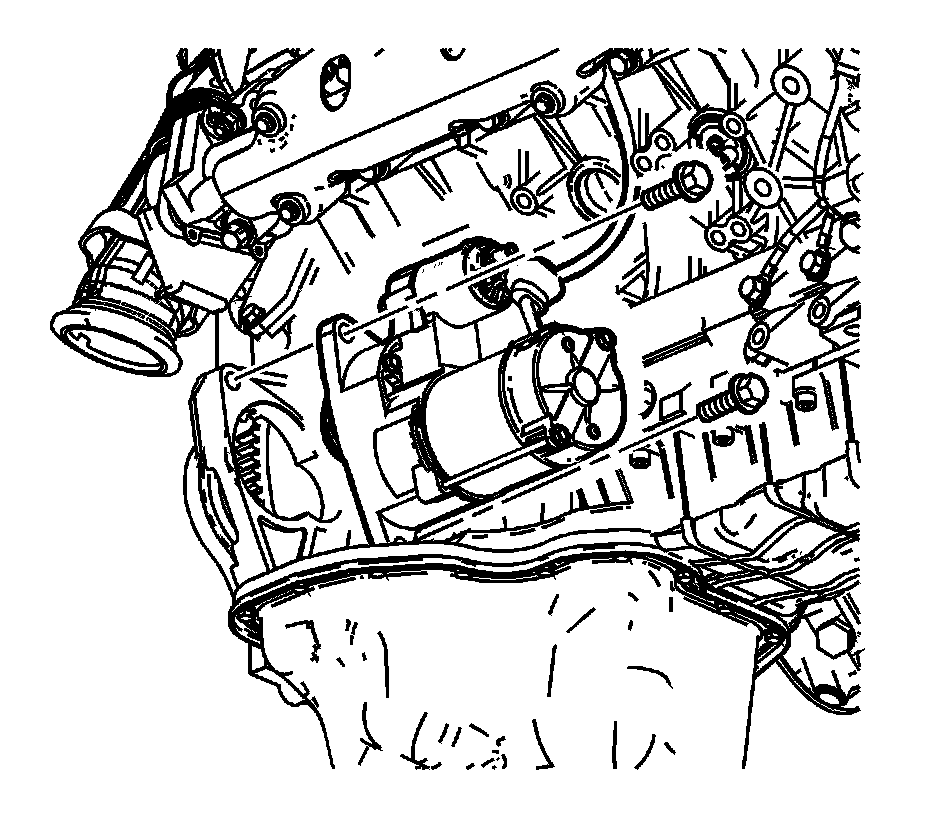

Starter Removal





1. Remove the starter motor bolts.

2. Remove the starter motor assembly.
