Fuel Pressure Control Module
>>
CNG Control Module X3 (FHZ)
CNG Control Module X3 (FHZ)

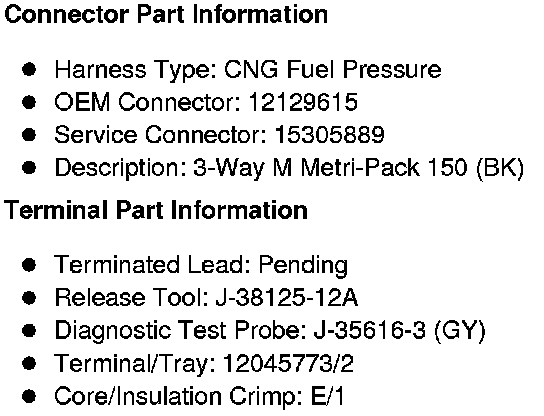

Component Connector End Views

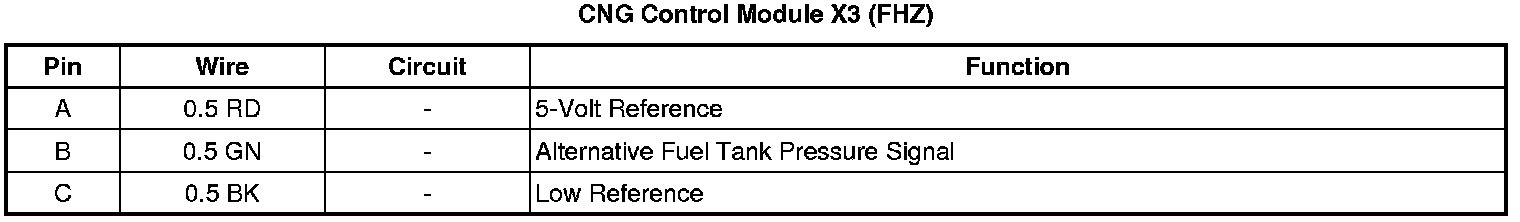

CNG Control Module X3 (FHZ)
