Fuel Pressure Control Module
>>
CNG Control Module X1 (FHZ)
CNG Control Module X1 (FHZ)

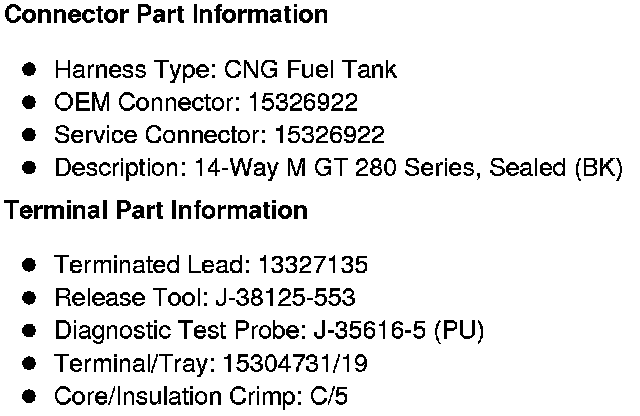

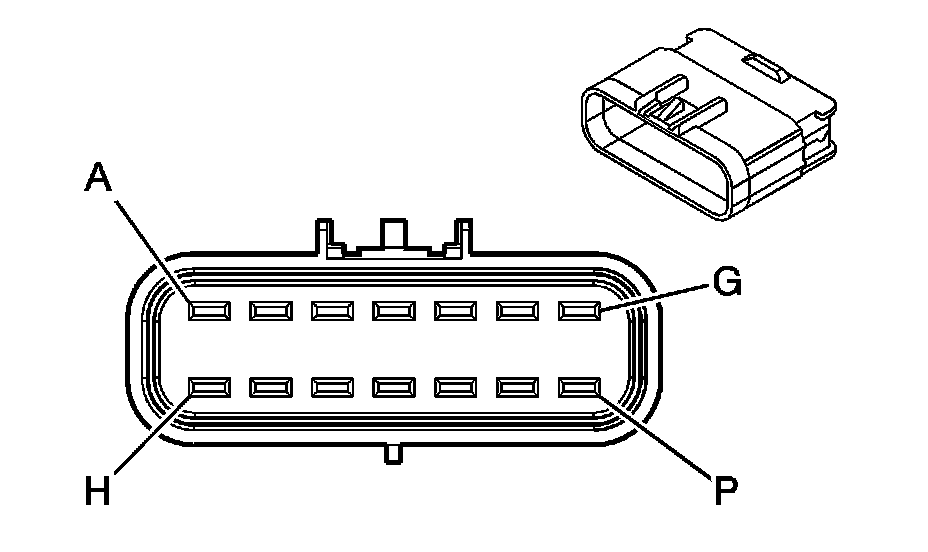

Component Connector End Views

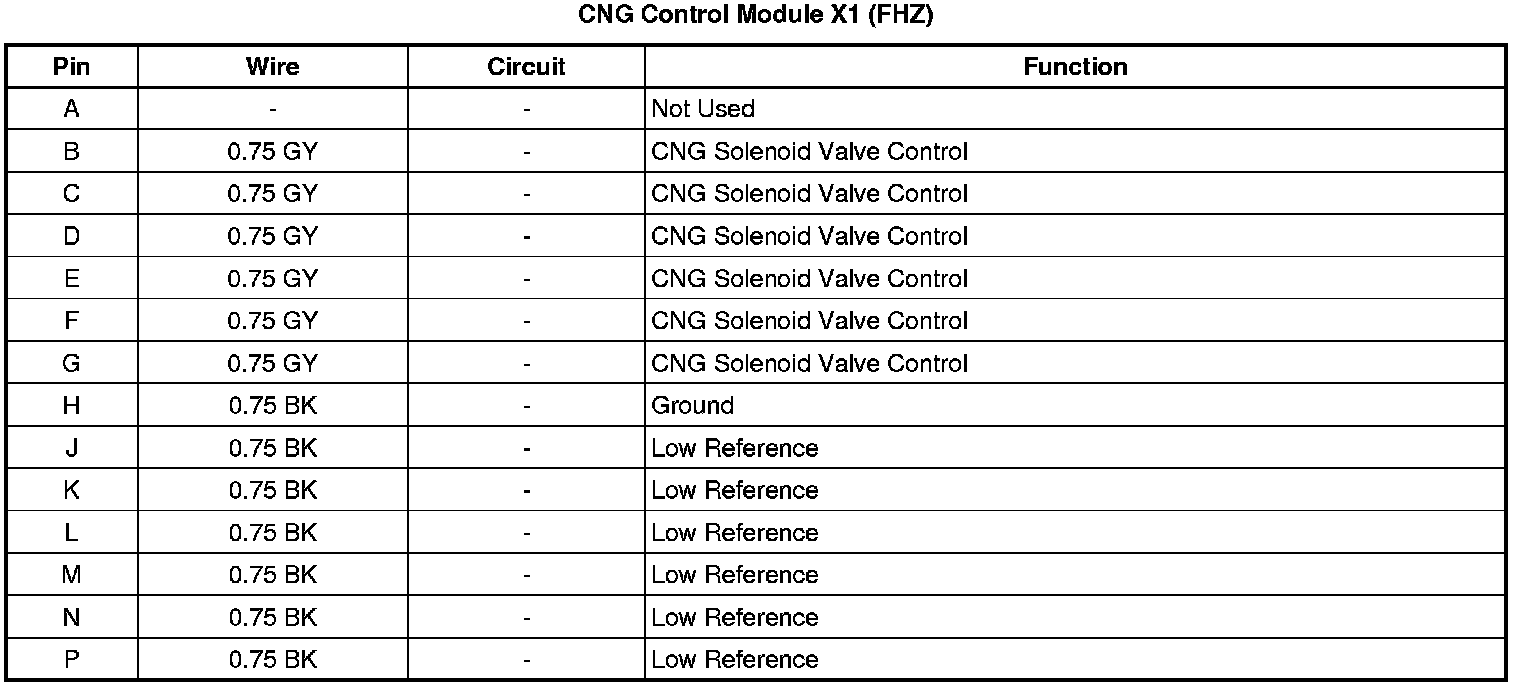

CNG Control Module X1 (FHZ)
