Home >> Chevy Truck >> 2012 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Engine Control Module (ECM) X1

Engine Control Module (ECM) X1

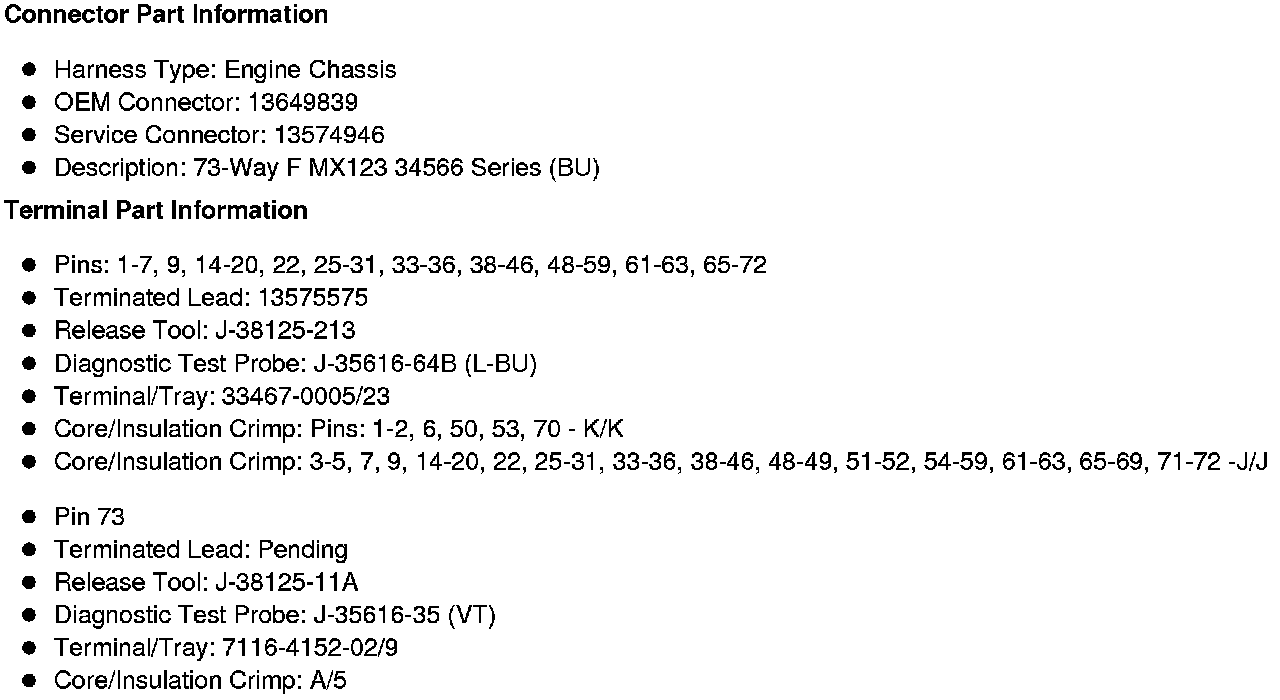

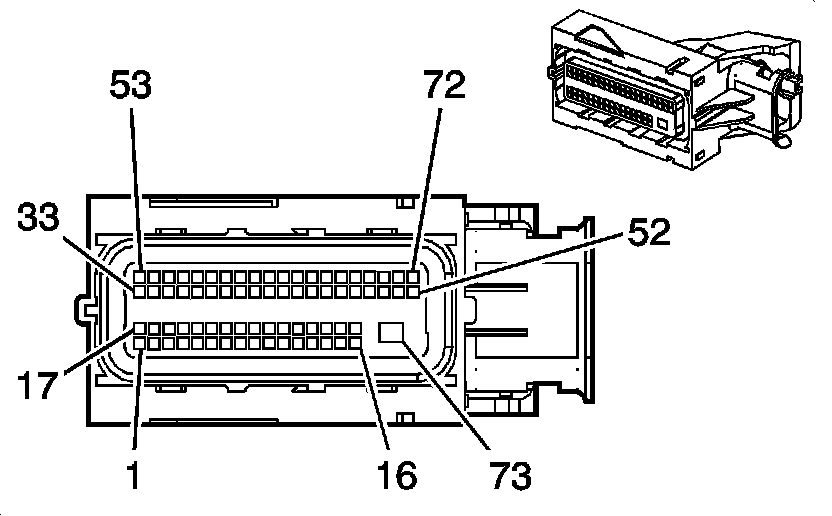

Component Connector End Views

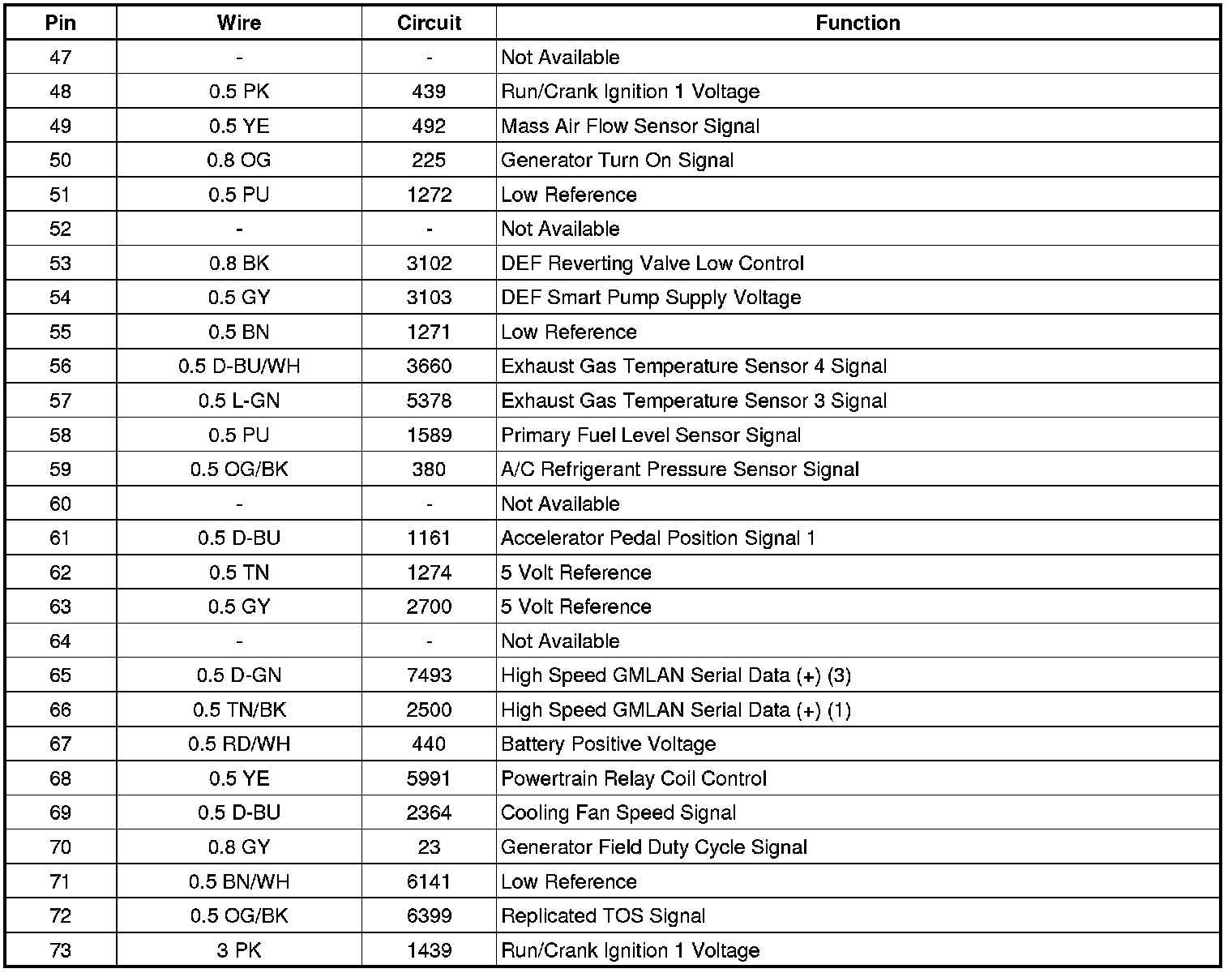

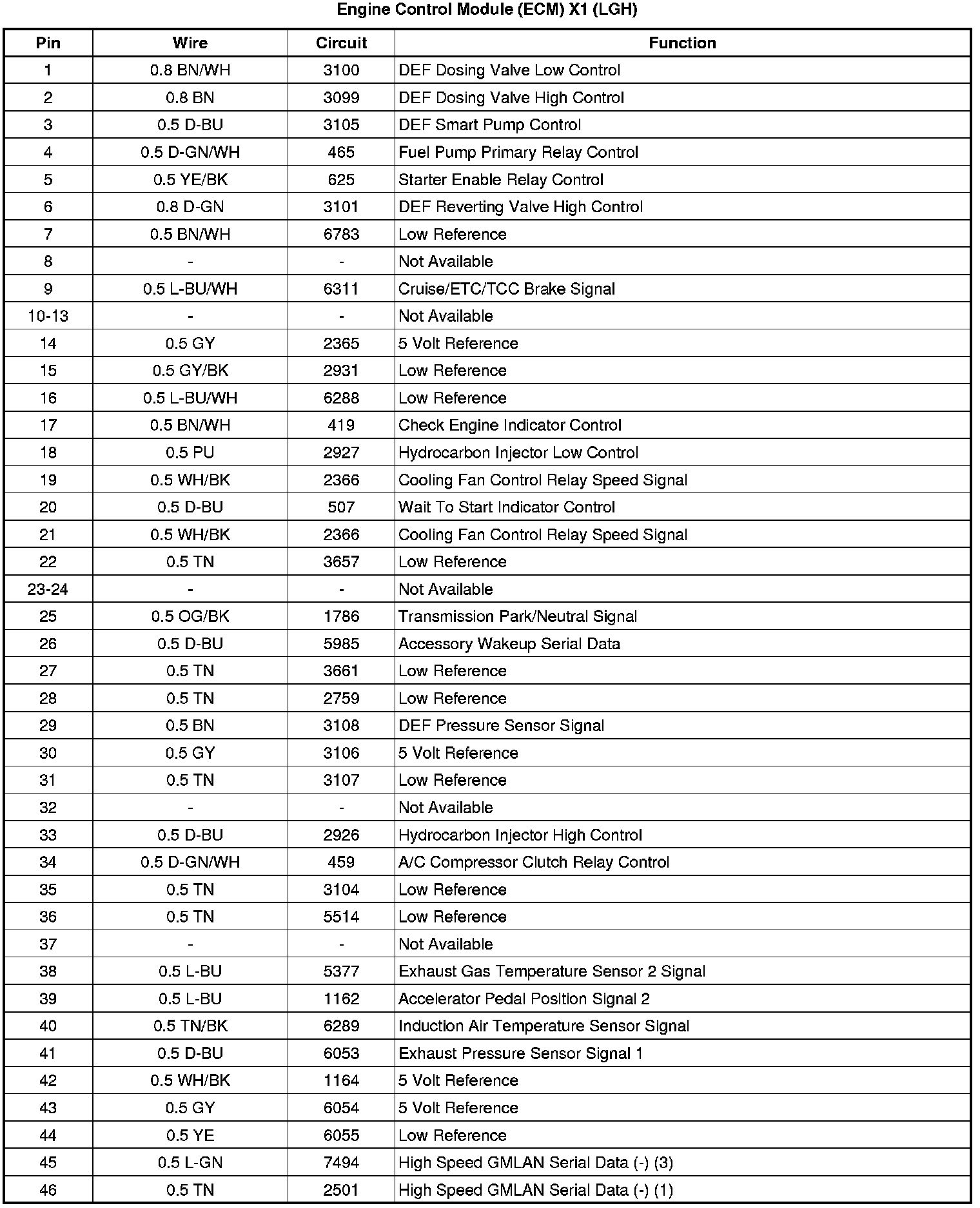

Engine Control Module (ECM) X1 (LGH)
