Lower Control Arm Replacement (RWD)

Lower Control Arm Replacement (RWD)

Special Tools

* J 43631 Ball Joint Remover

* J 45851 Ball Joint Separator Protector Adapters

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

3. Remove the front coil spring. Refer to Front Spring Replacement Front Suspension.

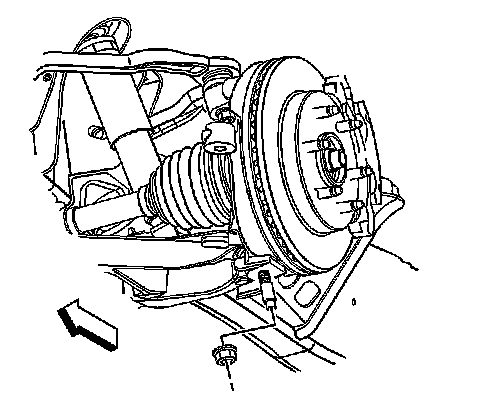

4. Remove and discard the lower ball joint retaining nut.





5. Disconnect the lower ball joint from the steering knuckle using J 43631 and J 45851.

6. Remove the lower control arm.

Installation Procedure





1. Install the lower control arm.

2. Connect the lower ball joint to the steering knuckle.

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the new lower ball joint retaining nut and tighten to 100 Nm (74 lb ft).

4. Install the front coil spring. Refer to Front Spring Replacement Front Suspension.

5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

6. Lower the vehicle.

7. Check the wheel alignment. Refer to Wheel Alignment Measurement Wheel Alignment Measurement.
