Home >> Chevy Truck >> 2012 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Schematics >> G302 (1 of 2)

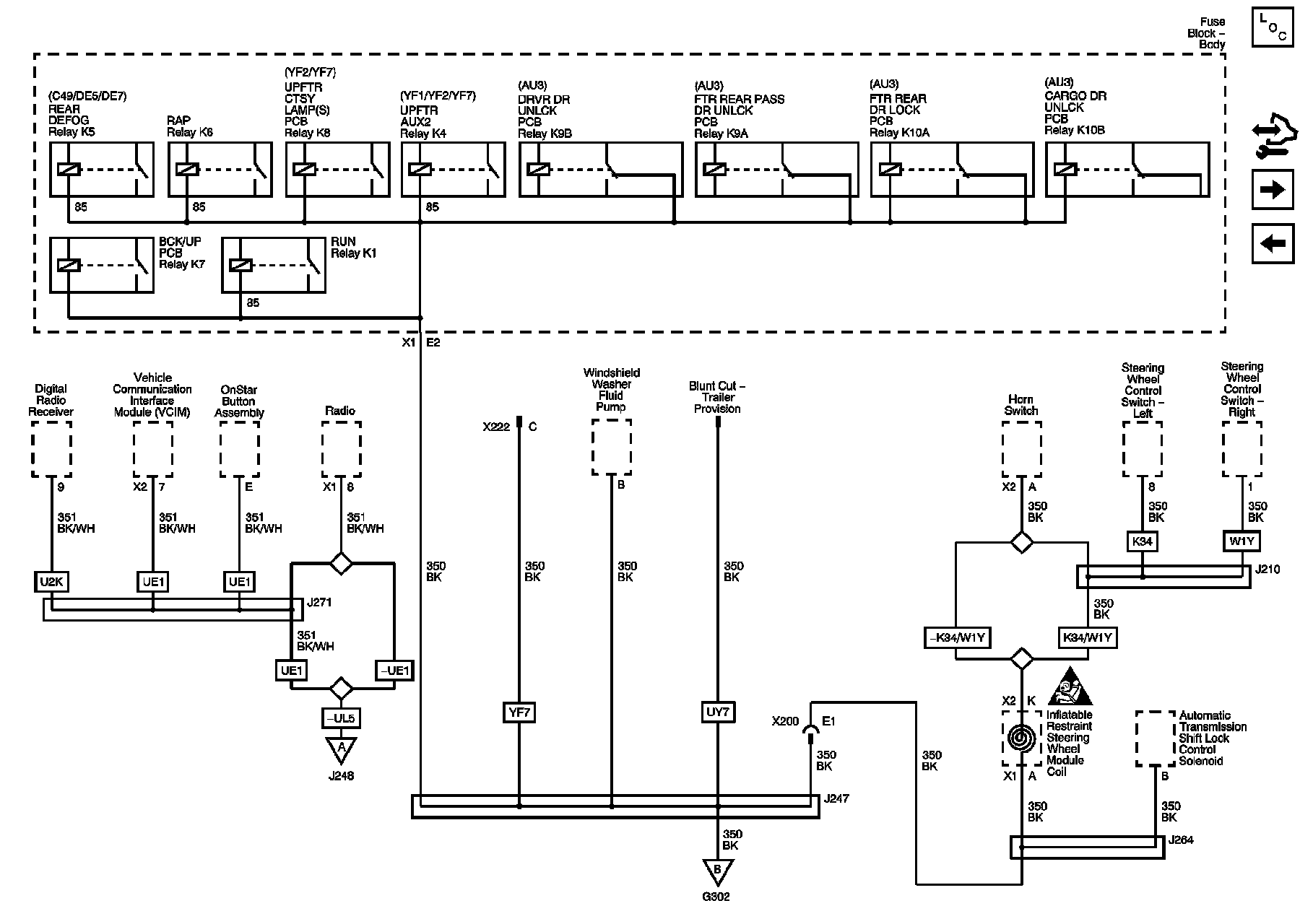

G302 (1 of 2)




Ground Distribution Schematics

G302 (1 of 2)





Master Electrical Component List
Control Module References
G302 (2 of 2)
G300, G301, G304, and G305
Electrical Center Identification Views
