Door Jamb Switch- Right Rear (Passenger or Cargo)
Door Jamb Switch- Right Rear (Passenger or Cargo)

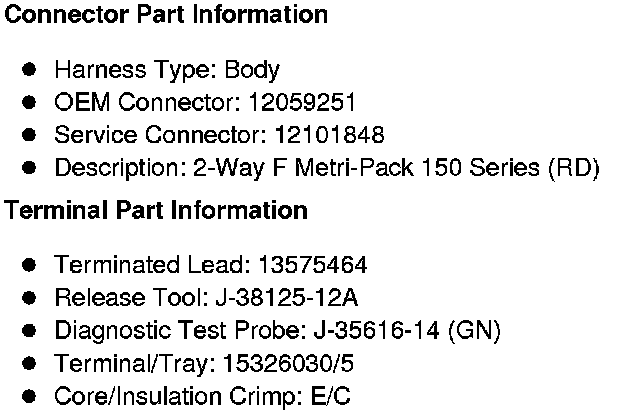

Component Connector End Views

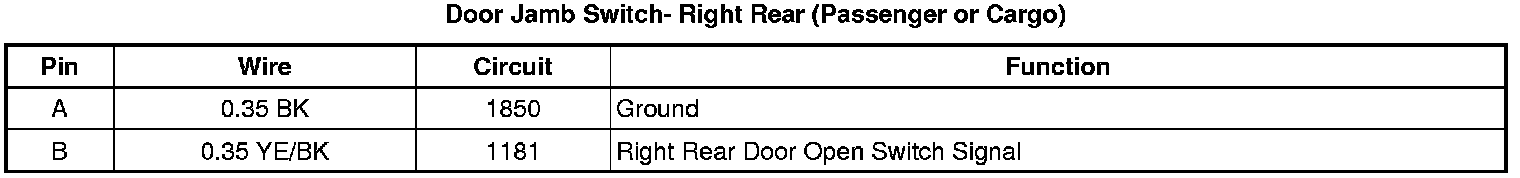

Door Jamb Switch- Right Rear (Passenger or Cargo)
