Seat Adjuster Switch- Passenger (AG2)

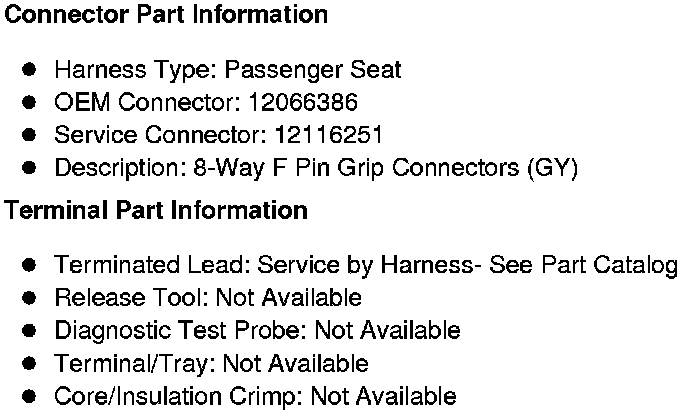

Component Connector End Views

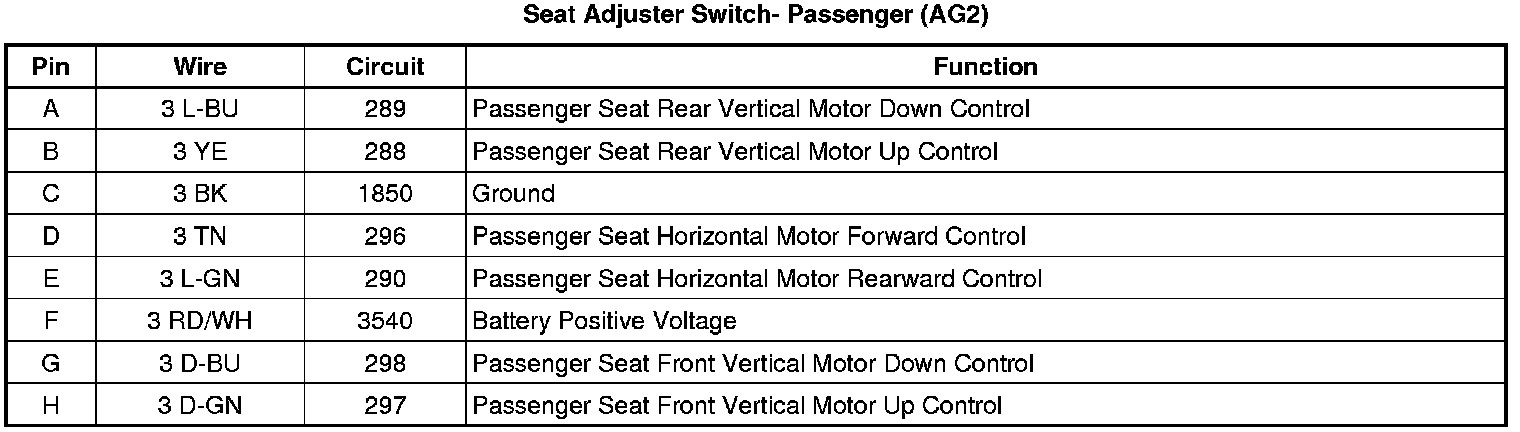

Seat Adjuster Switch- Passenger (AG2)
