Power Mirror Switch: Diagrams

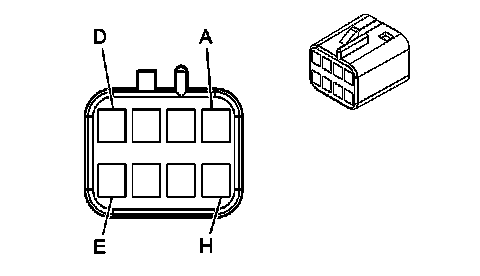

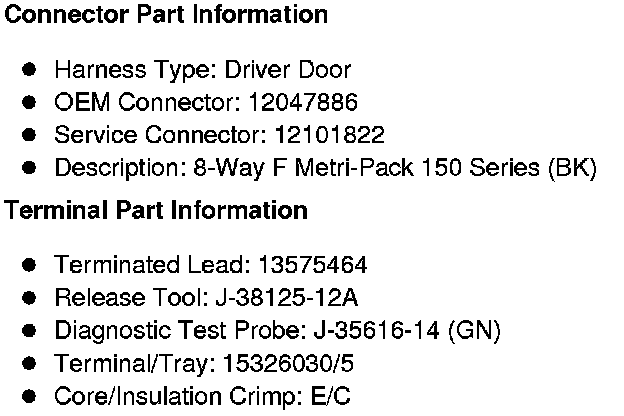

Component Connector End Views

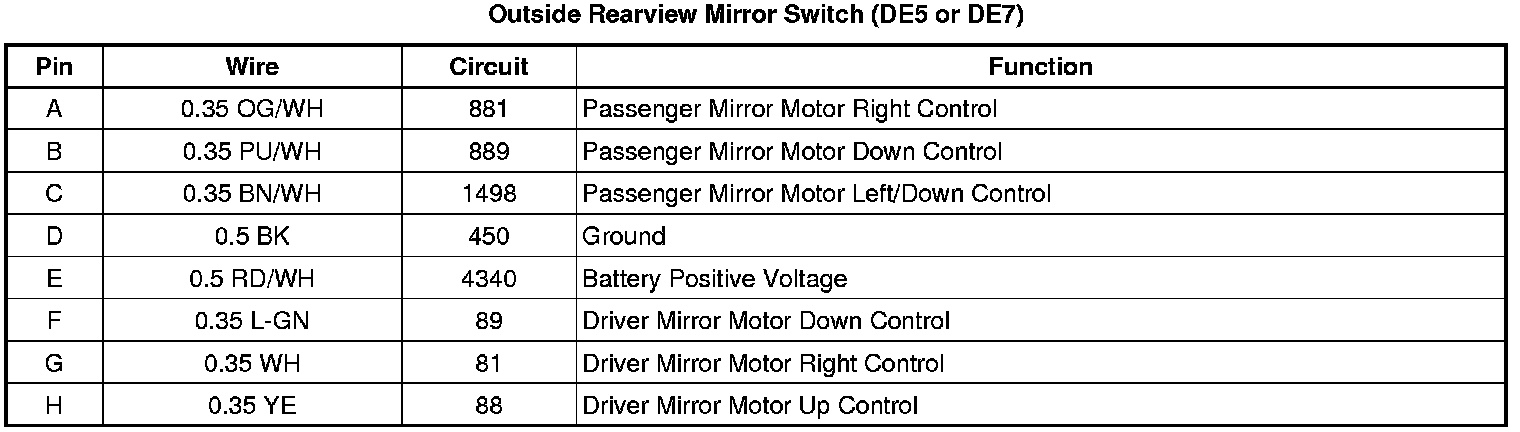

Outside Rearview Mirror Switch (DE5 or DE7)
