Oil Level Indicator Tube Replacement

Oil Level Indicator Tube Replacement

Removal Procedure

1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement Service and Repair.

2. Remove the retaining bolt for the coolant recovery reservoir and set the reservoir aside.

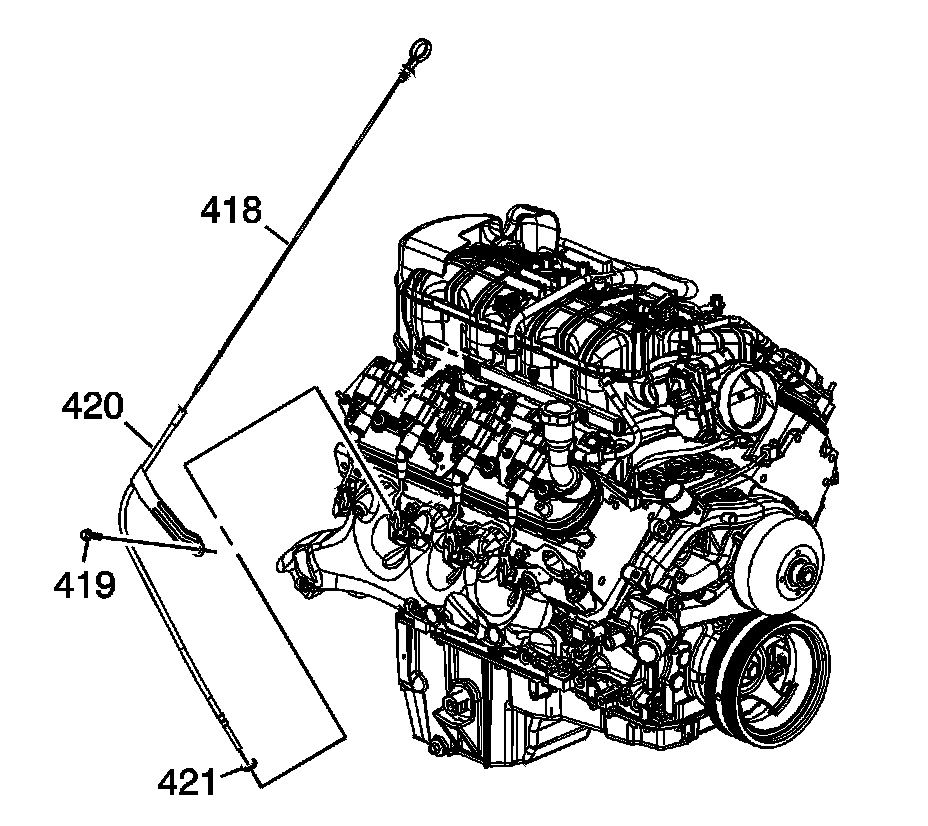

3. Remove the oil level indicator (418).

4. Remove the oil level indicator tube bolt (419).

5. Remove the oil level indicator tube (420) from the engine block.

Note:
The O-ring may be reused if not cut or damaged.

6. Inspect the O-ring seal for cuts or damage.

7. Remove the O-ring seal (421) from the tube, if required.

Installation Procedure





1. Lubricate the O-ring seal (421) with clean engine oil.

2. Install a NEW O-ring seal onto the oil level indicator tube, if required.

3. Install the oil level indicator tube (420) between the exhaust manifold and engine block.

4. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

5. Insert the oil level indicator tube into the block.

The tube must be installed with the collar flush to the block.

6. Lower the vehicle.

Caution:
Refer to Fastener Caution Fastener Caution.

7. Install the oil level indicator tube bolt (419) and tighten to 25 Nm (18 lb ft).

8. Install the oil level indicator (418).

9. Position the coolant recovery reservoir and install the retaining bolt.

10. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement Service and Repair.
