Home >> Chevy Truck >> 2012 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G400

G400

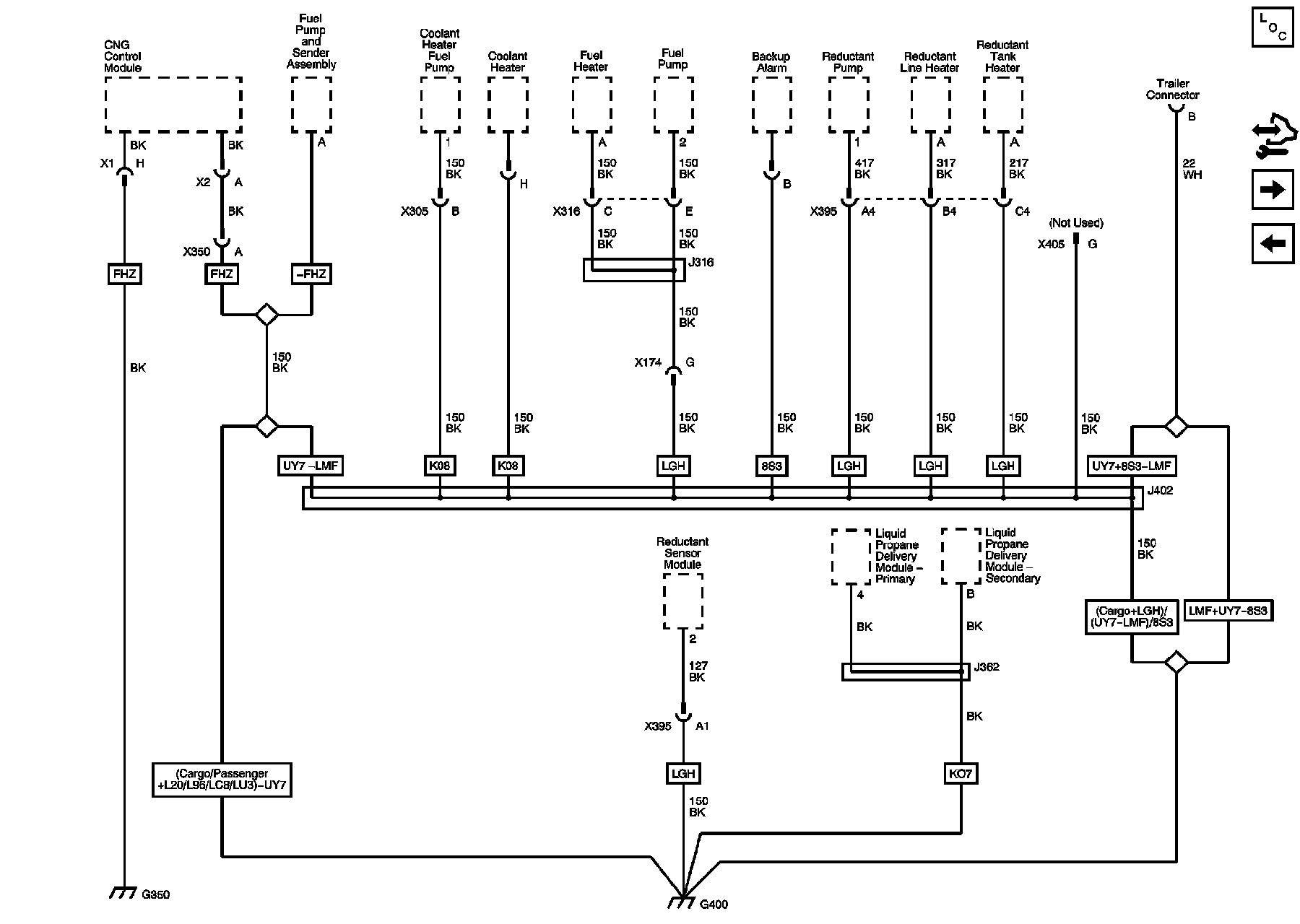

Ground Distribution Schematics

G400





Master Electrical Component List
Control Module References
G401 (Passenger or Cargo)
G348 (2 of 2)
