Home >> Chevy Truck >> 2012 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G347

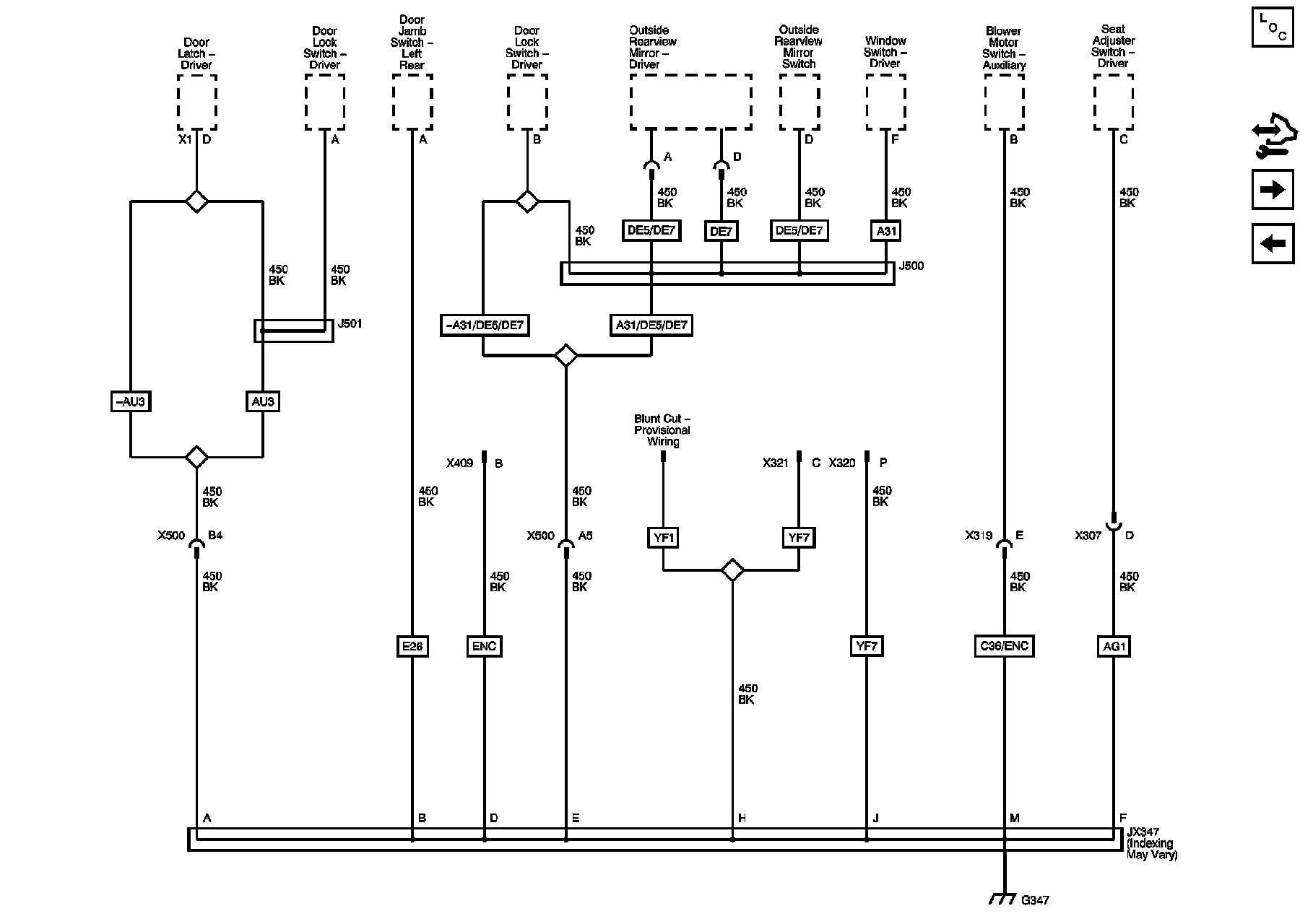

G347




Ground Distribution Schematics

G347





Master Electrical Component List
Control Module References
G348 (1 of 2)
G302 (2 of 2)
