Home >> Chevy Truck >> 2012 >> Express 3500 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G102

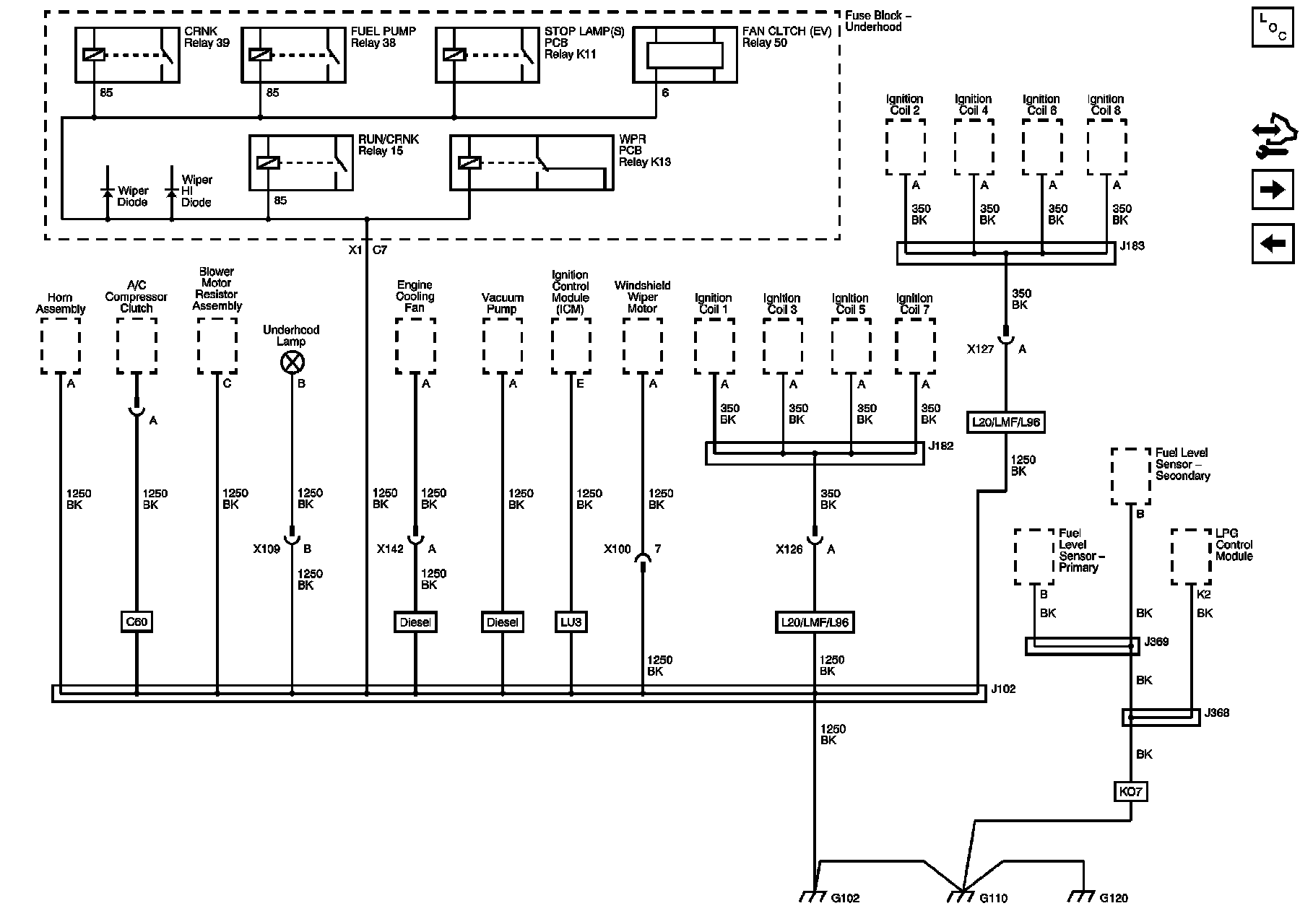

G102




Ground Distribution Schematics

G102





Master Electrical Component List
Control Module References
G103, G104, G105 and G106
G100 and G101
Electrical Center Identification Views
