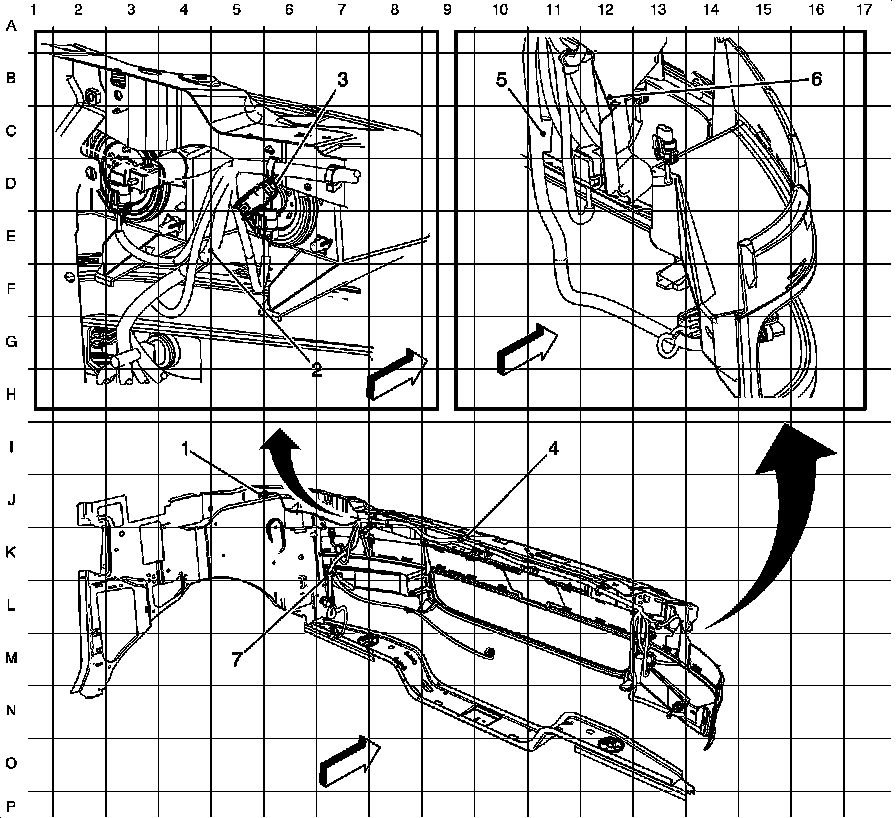

Forward Lamp Harness Routing




Harness Routing Views

Forward Lamp Harness Routing





1 - G100

2 - J110

3 - X150 (UFA)

4 - J121

5 - J118

6 - G101

7 - J122
