Alternative Fuel Control Module
>>
Primary LPDM (KO7 with UFP)
Primary LPDM (KO7 with UFP)

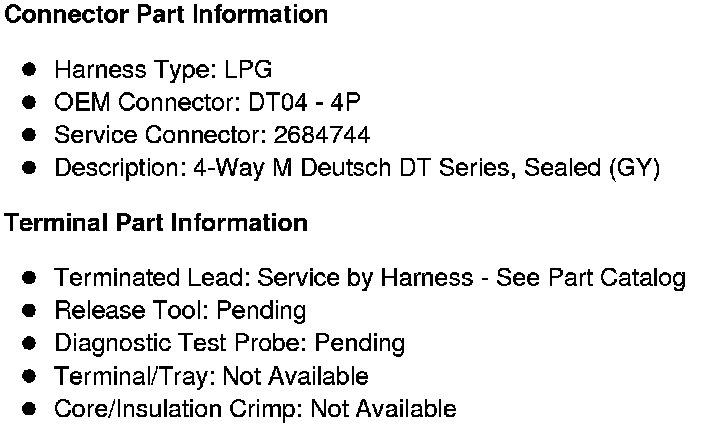

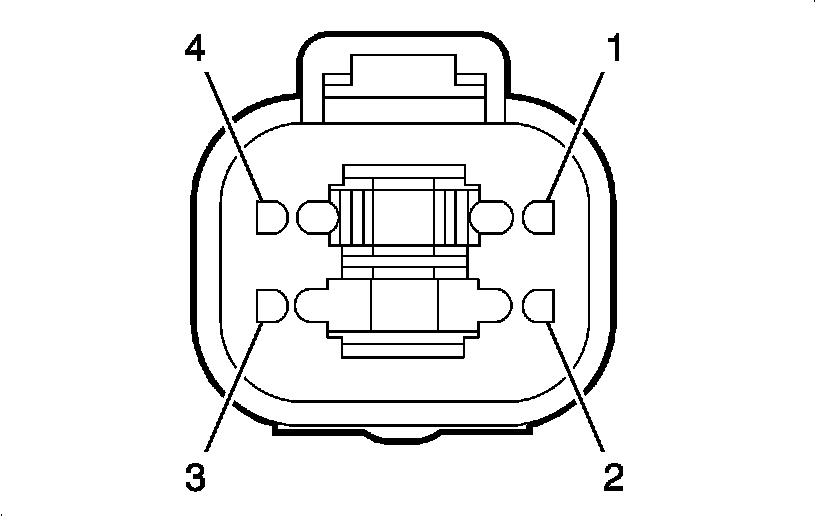

Component Connector End Views

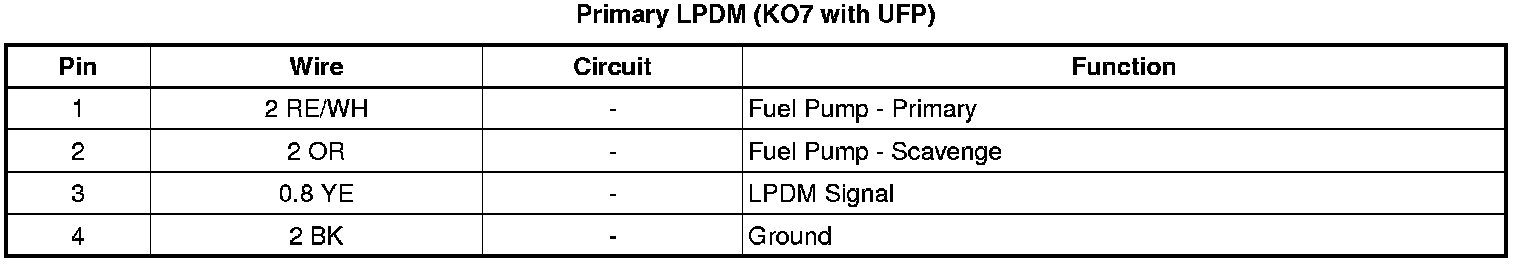

Primary LPDM (KO7 with UFP)
