Headlining Rear Trim Panel Replacement

Headlining Rear Trim Panel Replacement

Removal Procedure

Warning

Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.





1. Remove the rear passenger seats. Refer to Rear Bench Seat Replacement Rear Bench Seat Replacement.

2. Remove the front headliner. Refer to Headlining Front Trim Panel Replacement Headlining Front Trim Panel Replacement.

3. Remove the coat hooks. Refer to Coat Hook Replacement Service and Repair.

4. Remove the left rear upper garnish molding. Refer to Body Side Rear Garnish Molding Replacement Body Side Rear Garnish Molding Replacement.

5. Remove the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement Back Body Opening Garnish Molding Replacement.

6. Remove the left roof side rail garnish molding. Refer to Roof Side Rail Garnish Molding Replacement - Left Side Roof Side Rail Garnish Molding Replacement - Left Side.

7. Remove the right roof side rail garnish molding. Refer to Roof Side Rail Garnish Molding Replacement - Right Side Roof Side Rail Garnish Molding Replacement - Right Side.

8. Remove the rear corner garnish molding. Refer to Body Rear Corner Garnish Molding Replacement Body Rear Corner Garnish Molding Replacement.

9. Remove the upper seat belt anchor bolts.

Refer to the following:

* Rear Seat Retractor Side Belt Replacement - Left Side Rear Seat Retractor Side Belt Replacement - Left Side

* Rear Seat Retractor Side Belt Replacement - Right Side Rear Seat Retractor Side Belt Replacement - Right Side

* Rear Seat Number 2 Retractor Side Belt Replacement - Left Side Rear Seat Number 2 Retractor Side Belt Replacement - Left Side

* Rear Seat Number 2 Retractor Side Belt Replacement - Right Side Rear Seat Number 2 Retractor Side Belt Replacement - Right Side

10. Disconnect the electrical connectors.

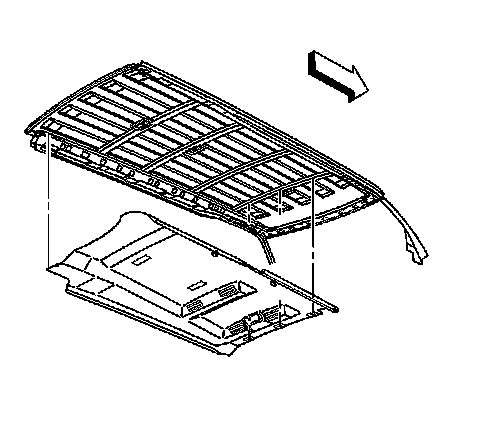

11. Remove the headliner from the vehicle through the rear doors.

Installation Procedure





Note:
When installing a new headliner, tape any unused connector to the headliner with a high adhesive tape.

1. Install the headliner to the vehicle.

2. Connect the electrical connectors.

3. Install the coat hooks. Refer to Coat Hook Replacement Service and Repair.

4. Install the left rear upper garnish molding. Refer to Body Side Rear Garnish Molding Replacement Body Side Rear Garnish Molding Replacement.

5. Install the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement Back Body Opening Garnish Molding Replacement.

6. Install the left roof side rail garnish molding. Refer to Roof Side Rail Garnish Molding Replacement - Left Side Roof Side Rail Garnish Molding Replacement - Left Side.

7. Install the right roof side rail garnish molding. Refer to Roof Side Rail Garnish Molding Replacement - Right Side Roof Side Rail Garnish Molding Replacement - Right Side.

8. Install the rear corner garnish molding. Refer to Body Rear Corner Garnish Molding Replacement Body Rear Corner Garnish Molding Replacement.

9. Install the upper seat belt anchor bolts.

Refer to the following:

* Rear Seat Retractor Side Belt Replacement - Left Side Rear Seat Retractor Side Belt Replacement - Left Side

* Rear Seat Retractor Side Belt Replacement - Right Side Rear Seat Retractor Side Belt Replacement - Right Side

* Rear Seat Number 2 Retractor Side Belt Replacement - Left Side Rear Seat Number 2 Retractor Side Belt Replacement - Left Side

* Rear Seat Number 2 Retractor Side Belt Replacement - Right Side Rear Seat Number 2 Retractor Side Belt Replacement - Right Side

10. Install the front headliner. Refer to Headlining Front Trim Panel Replacement Headlining Front Trim Panel Replacement.

11. Install the rear passenger seats. Refer to Rear Bench Seat Replacement Rear Bench Seat Replacement.
