P0107




DTC P0107 or P0108

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P0107

-
Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage

DTC P0108

-
Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage

Diagnostic Fault Information

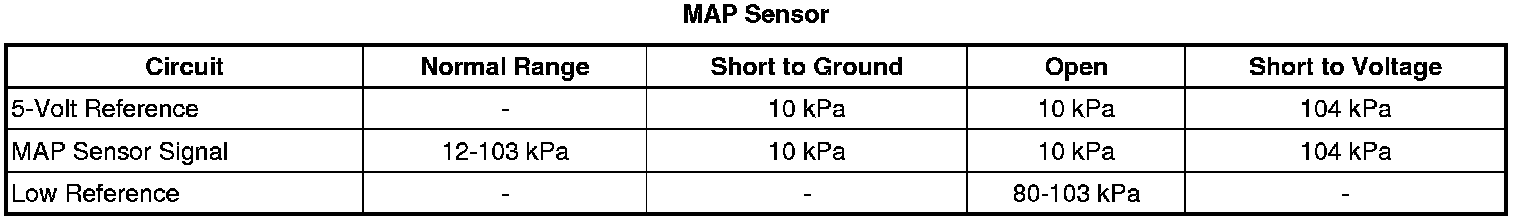

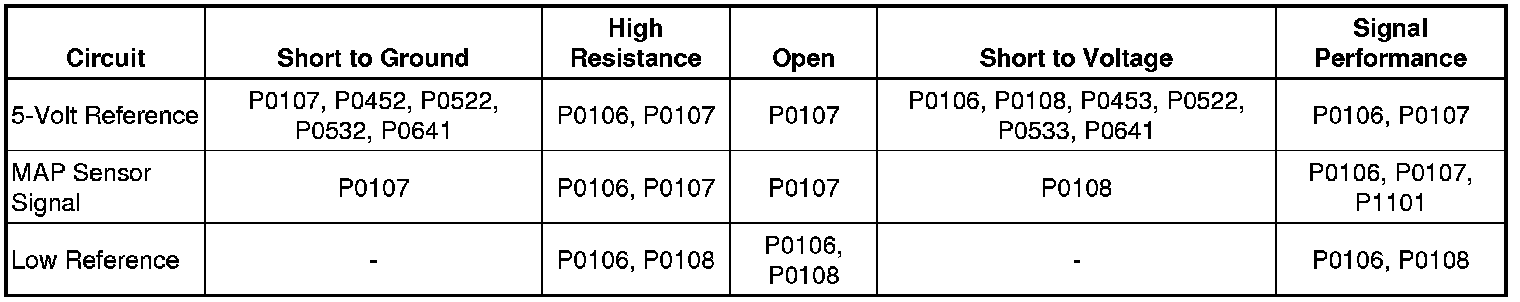

Typical Scan Tool Data






Circuit Description

The manifold absolute pressure (MAP) sensor measures the pressure inside the intake manifold. Pressure in the intake manifold is affected by engine speed, throttle opening, air temperature, and barometric pressure (BARO). A diaphragm within the MAP sensor is displaced by the pressure changes that occur from the varying load and operating conditions of the engine. The sensor translates this action into electrical resistance. The MAP sensor wiring includes 3 circuits. The engine control module (ECM) supplies a regulated 5 volts to the sensor on a 5-volt reference circuit. The ECM supplies a ground on a low reference circuit. The MAP sensor provides a signal voltage to the ECM, relative to the pressure changes, on the MAP sensor signal circuit. The ECM converts the signal voltage input to a pressure value.

Under normal operation the highest pressure that can exist in the intake manifold is equal to BARO. This occurs when the vehicle is operated at wide-open throttle (WOT) or when the ignition is ON while the engine is OFF. Under these conditions, the ECM uses the MAP sensor to determine the current BARO. The lowest manifold pressures occur when the vehicle is idling or decelerating. MAP can range from 10 kPa, when pressures are low, to as much as 104 kPa when pressures are high, depending on the BARO. The ECM monitors the MAP sensor signal for pressure outside of the normal range.

Conditions for Running the DTC

P0107

This DTC runs continuously.

P0108

This DTC runs continuously.

Conditions for Setting the DTC

P0107

The ECM detects that the MAP sensor voltage is less than 0.1 volt for more than 4 seconds.

P0108

The ECM detects that the MAP sensor voltage is more than 4.9 volts for greater than 4 seconds.

Action Taken When the DTC Sets

DTCs P0107 and P0108 are Type B DTCs.

Conditions for Clearing the MIL/DTC

DTCs P0107 and P0108 are Type B DTCs.

Reference Information

Schematic Reference

Engine Controls Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

1. Verify that DTC P0641, or P0651 is not set.

• If any of the DTCs are set refer to DTC P0641 or P0651 (ECM) Powertrain Management (ECM).

2. Ignition ON, observe the scan tool MAP Sensor parameter. The reading should be between 0.20-4.80 V.

3. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

Circuit/System Testing

Important:
All electrical components and accessories must be turned OFF and allowed to power down.


1. Ignition OFF and all vehicle systems OFF. It may take up to 2 minutes for all vehicle systems to power down. Disconnect the MAP harness connector at the MAP sensor.

2. Ignition OFF, test for less than 5 ohms between the low reference circuit and ground.

• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the ECM.

3. Ignition ON, test for 4.8-5.2 volts between the 5-volt reference circuit and ground.

• If less than the specified range, test the 5-volt reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the ECM.

• If greater than the specified range, test the 5-volt reference circuit for a short to voltage. If the circuit tests normal, replace the ECM.

4. Verify the scan tool MAP Sensor parameter is less than 12 kPa.

• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the ECM.

5. Install a 3A fused jumper wire between the signal circuit and the 5-volt reference circuit. Verify the scan tool MAP Sensor parameter is greater than 103 kPa.

• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the ECM.

6. If all circuits test normal, test or replace the MAP sensor.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Manifold Absolute Pressure Sensor Replacement Service and Repair

* Control Module References Control Module References for ECM replacement, programming, and setup
