Shifter A/T: Diagrams




Component Connector End Views

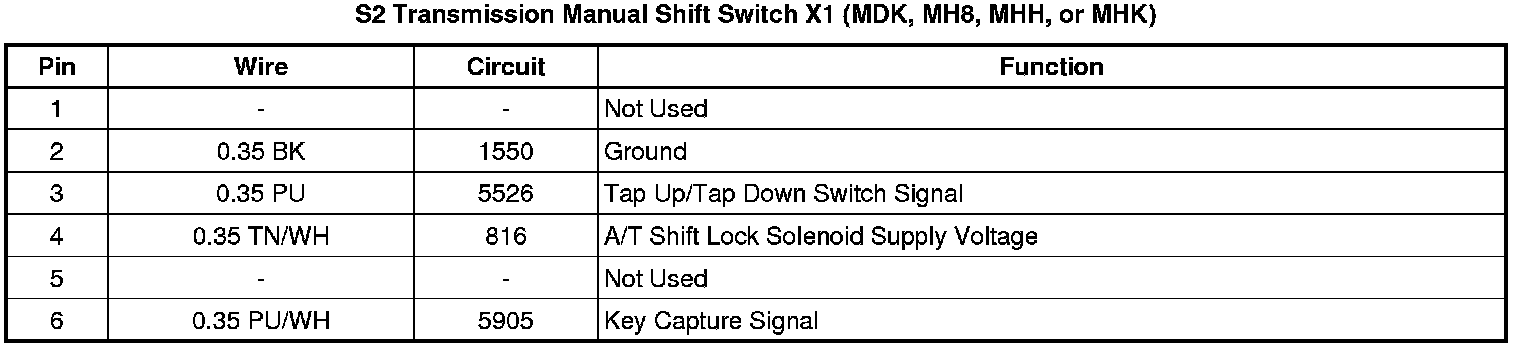

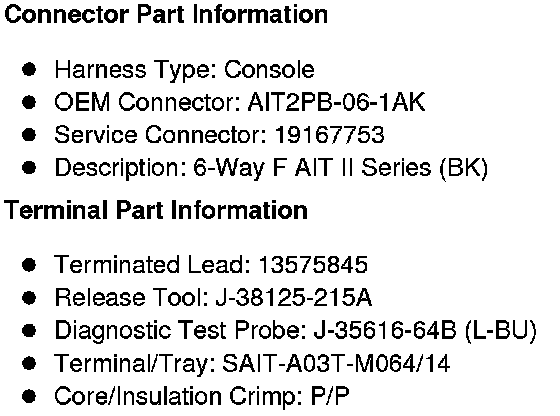

S2 Transmission Manual Shift Switch X1 (MDK, MH8, MHH, or MHK)
