6T30/6T40/6T45/6T50 - Automatic Transmission
>>
51. Control Solenoid Valve and Transmission Control Module Assembly Installation
51. Control Solenoid Valve and Transmission Control Module Assembly Installation

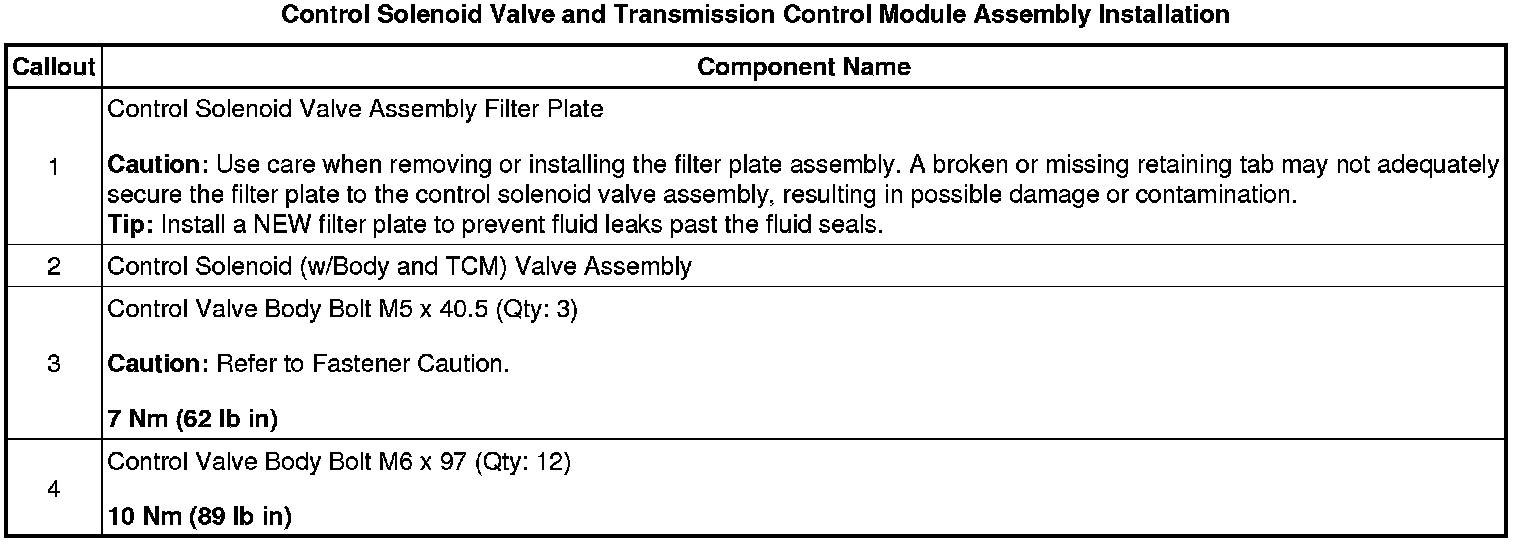

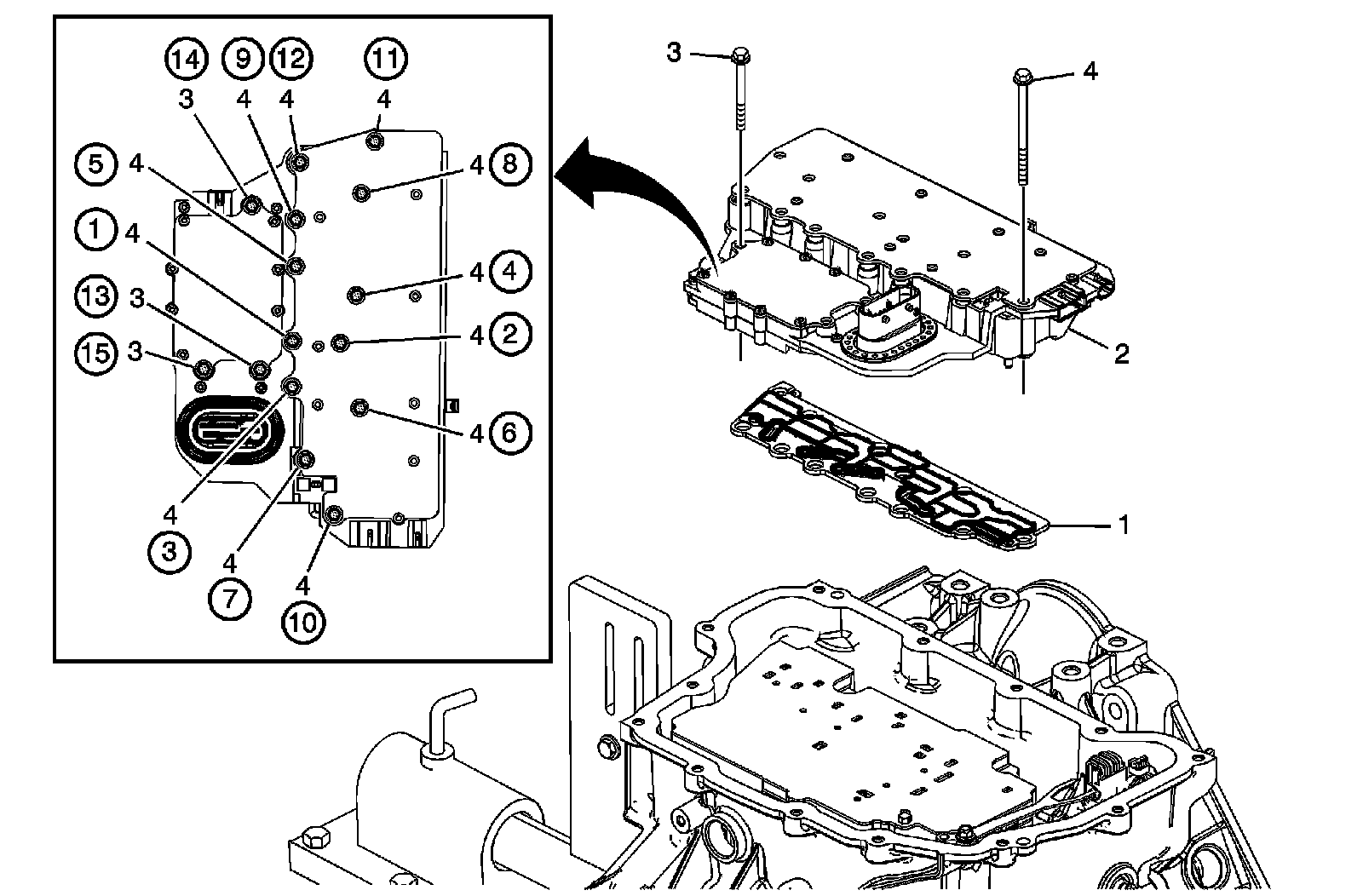

Control Solenoid Valve and Transmission Control Module Assembly Installation
