Fuel Pump Control Unit: Locations

Luggage Compartment/Rear of Vehicle Component Views

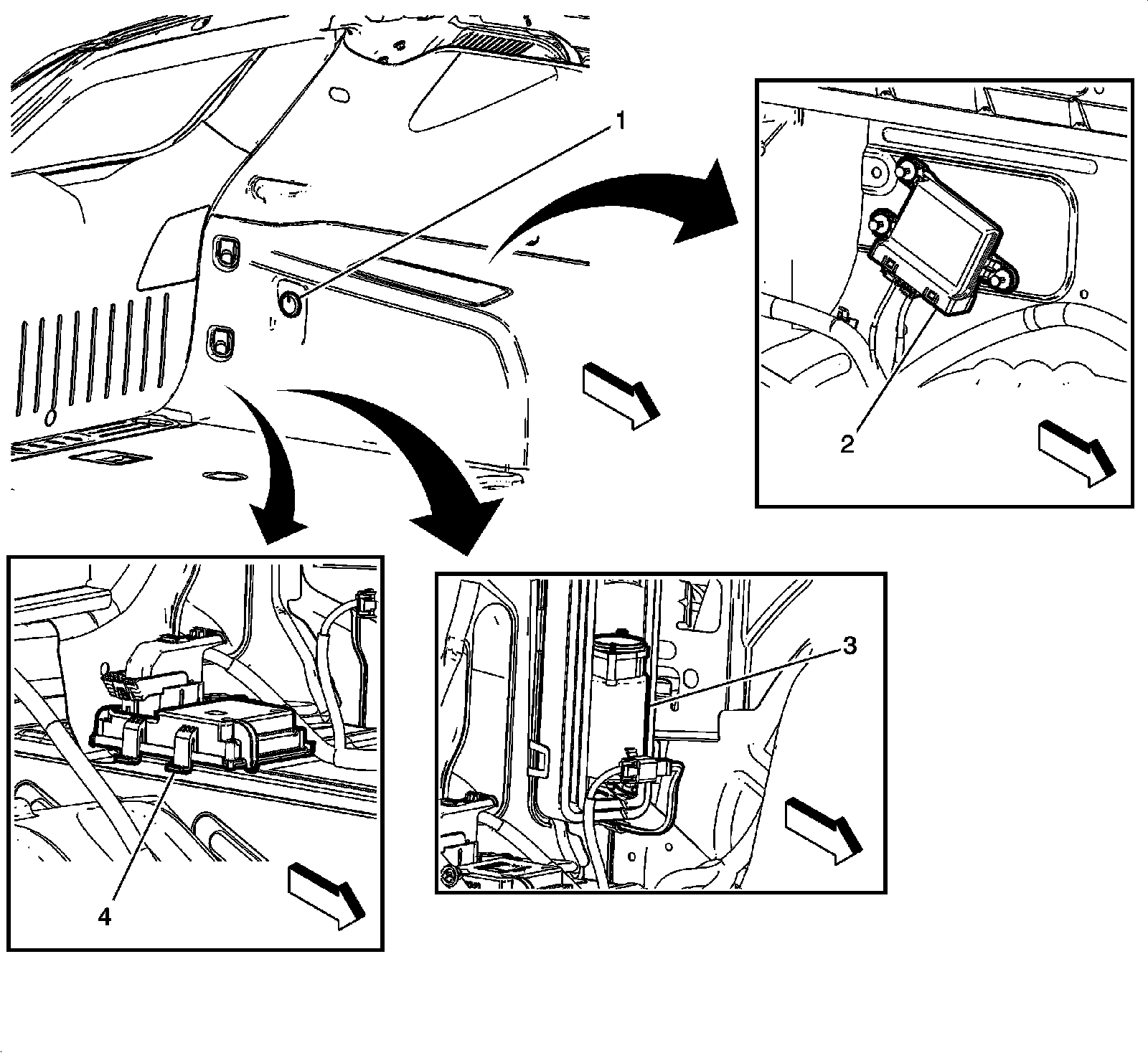

Left Side of the Luggage Compartment Components





1 - X80R Accessory Power Receptacle - Rear Compartment

2 - K41R Rear Parking Assist Control Module (UD7)

3 - M17 Liftgate Motor Assembly (TB5)

4 - K27 Fuel Pump Control Module
