HVAC Control Module

Instrument Panel/Center Console Component Views

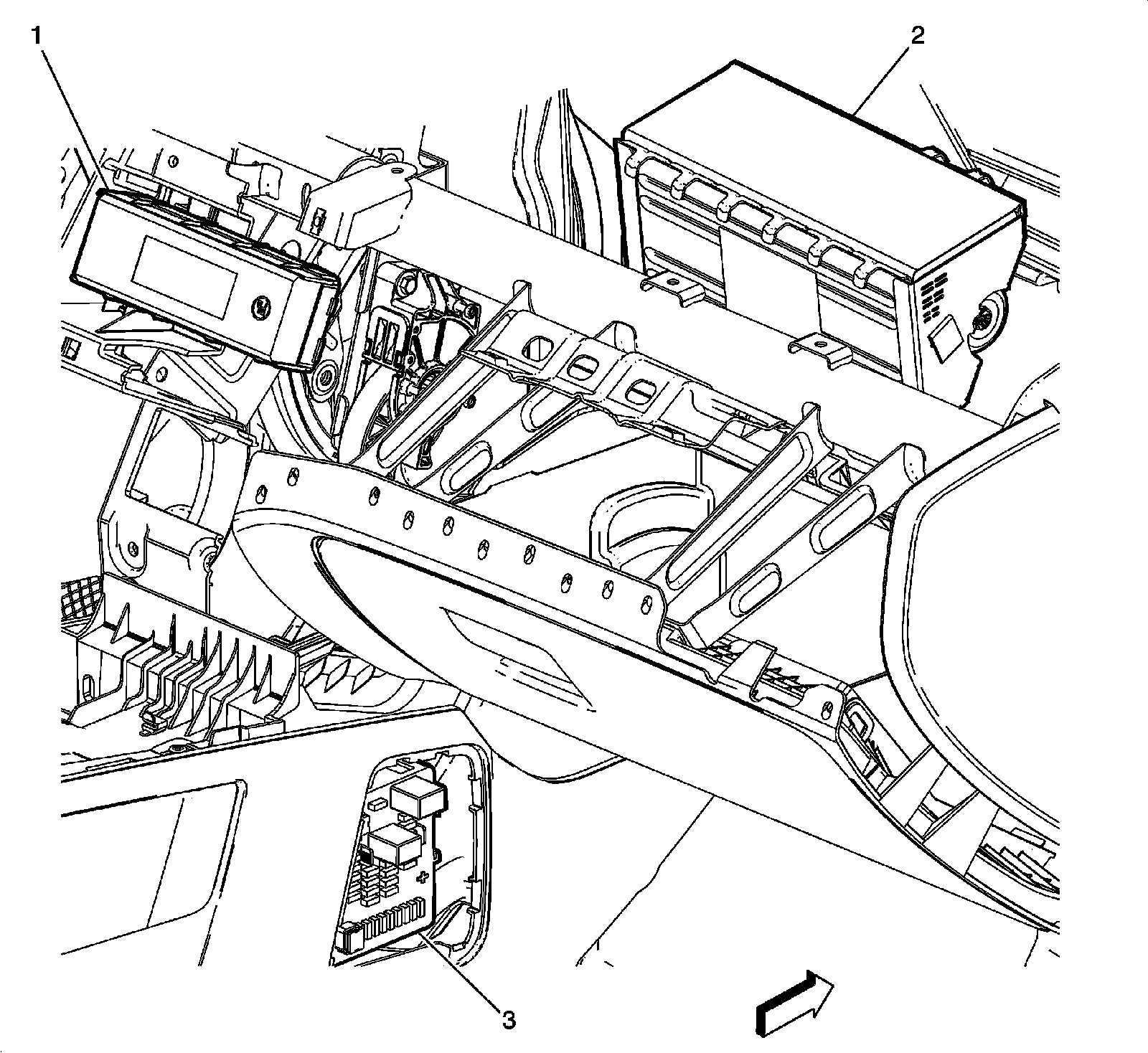

Lower Right of the Instrument Panel Components





1 - K33 HVAC Control Module

2 - F101 Passenger Instrument Panel Air Bag

3 - X51A Fuse Block - Instrument Panel
