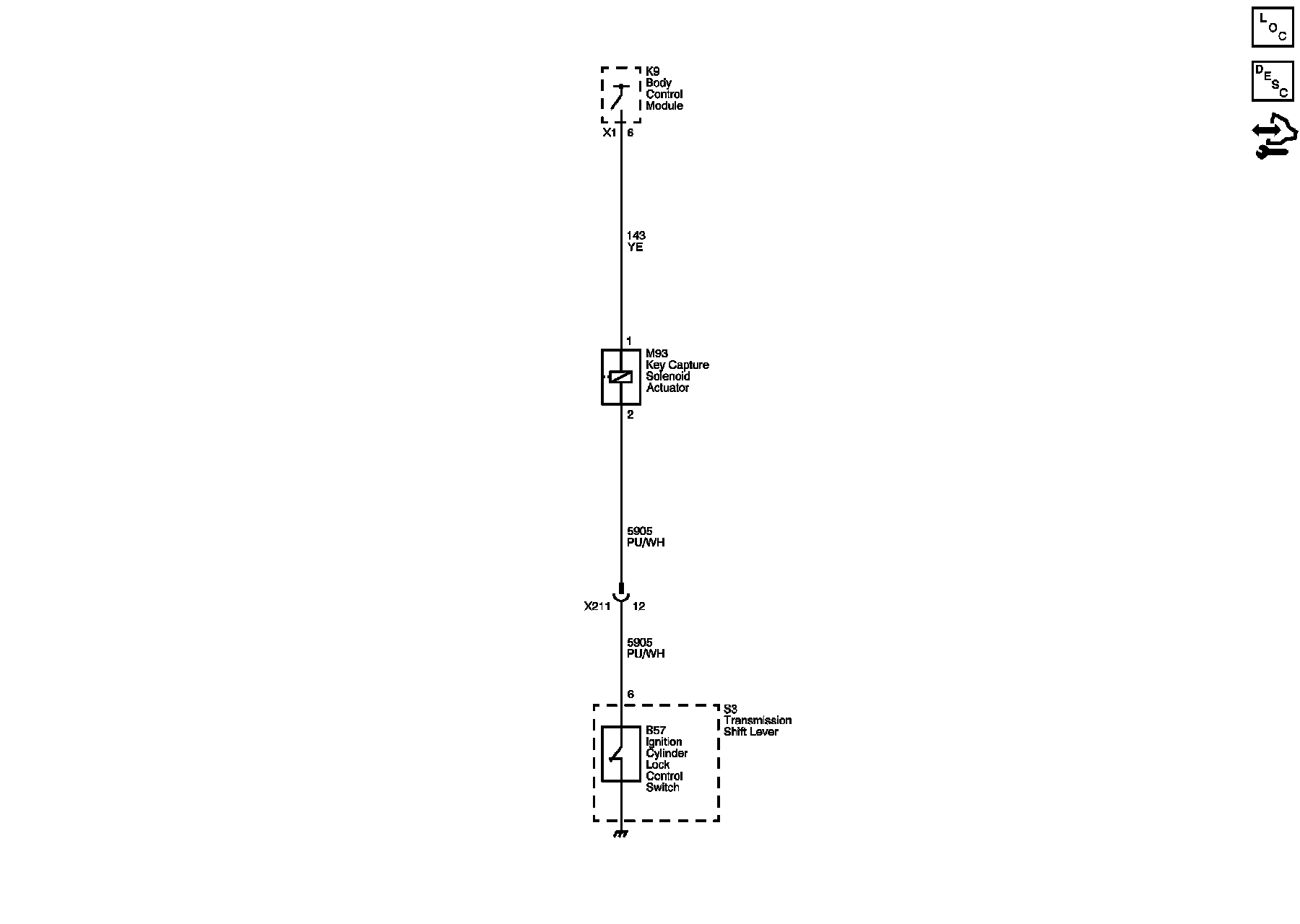

Ignition Lock Schematics




Ignition Lock Schematics

Ignition Lock





Master Electrical Component List
Electronic Park Lock Description and Operation
Control Module References
