Home >> Chevy Truck >> 2012 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G403

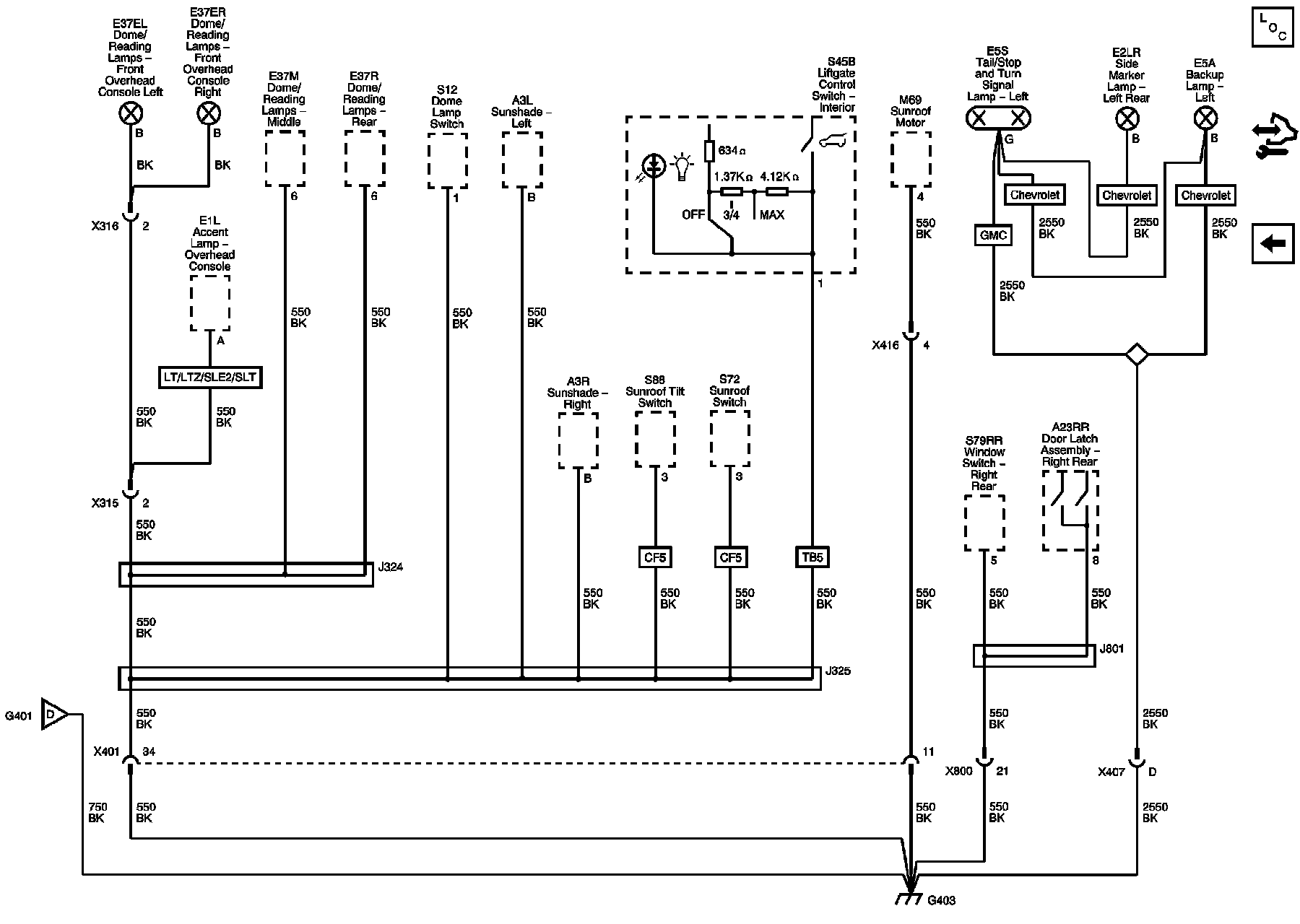

G403

Ground Distribution Schematics

G403

Master Electrical Component List
Control Module References
G401 (2 of 2)
G401 (1 of 2)
