Home >> Chevy Truck >> 2012 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G210

G210




Ground Distribution Schematics

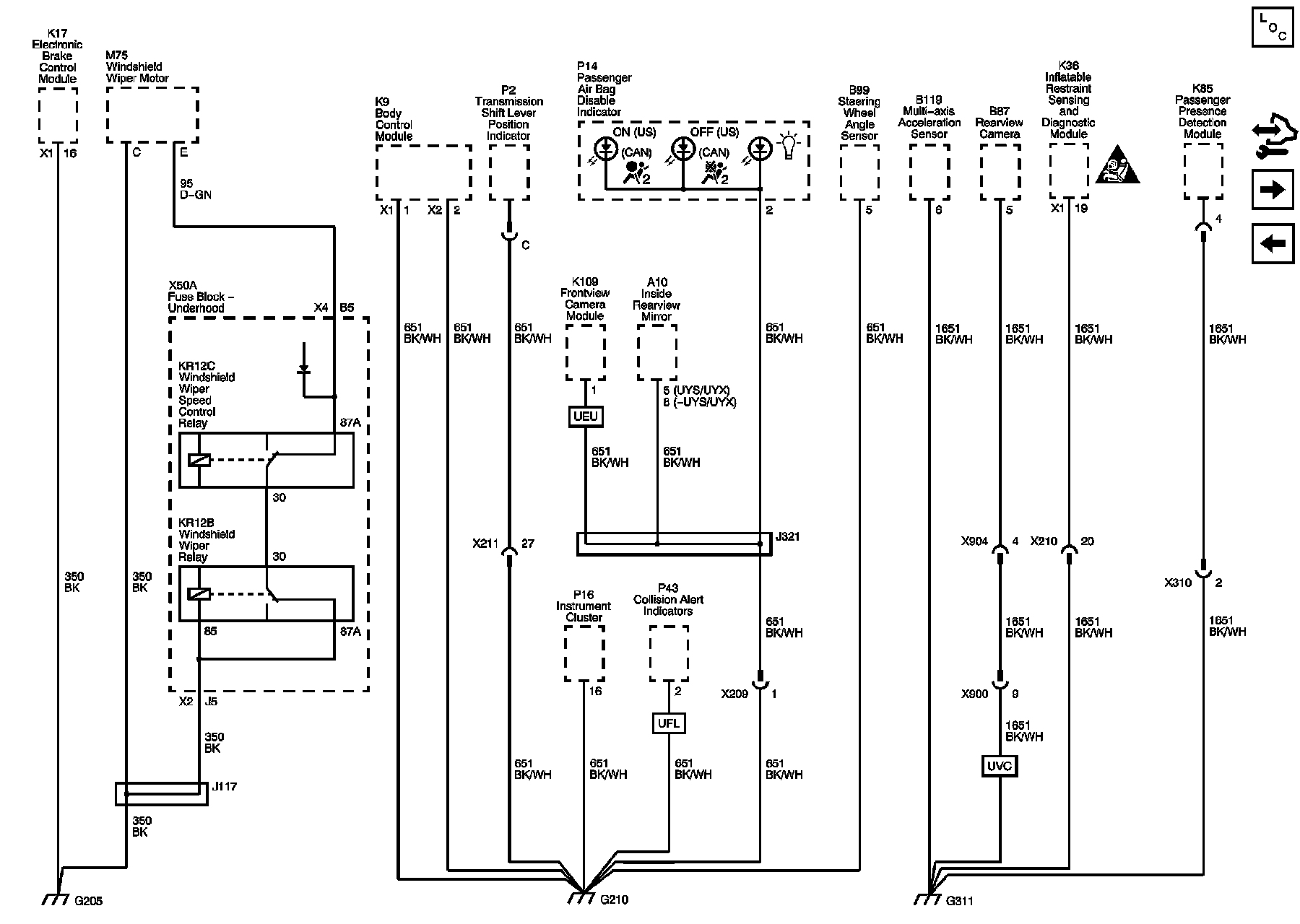

G205, G210, and G311





Master Electrical Component List
Control Module References
G207
G203
Electrical Center Identification Views
Master Electrical Schematic Icons
