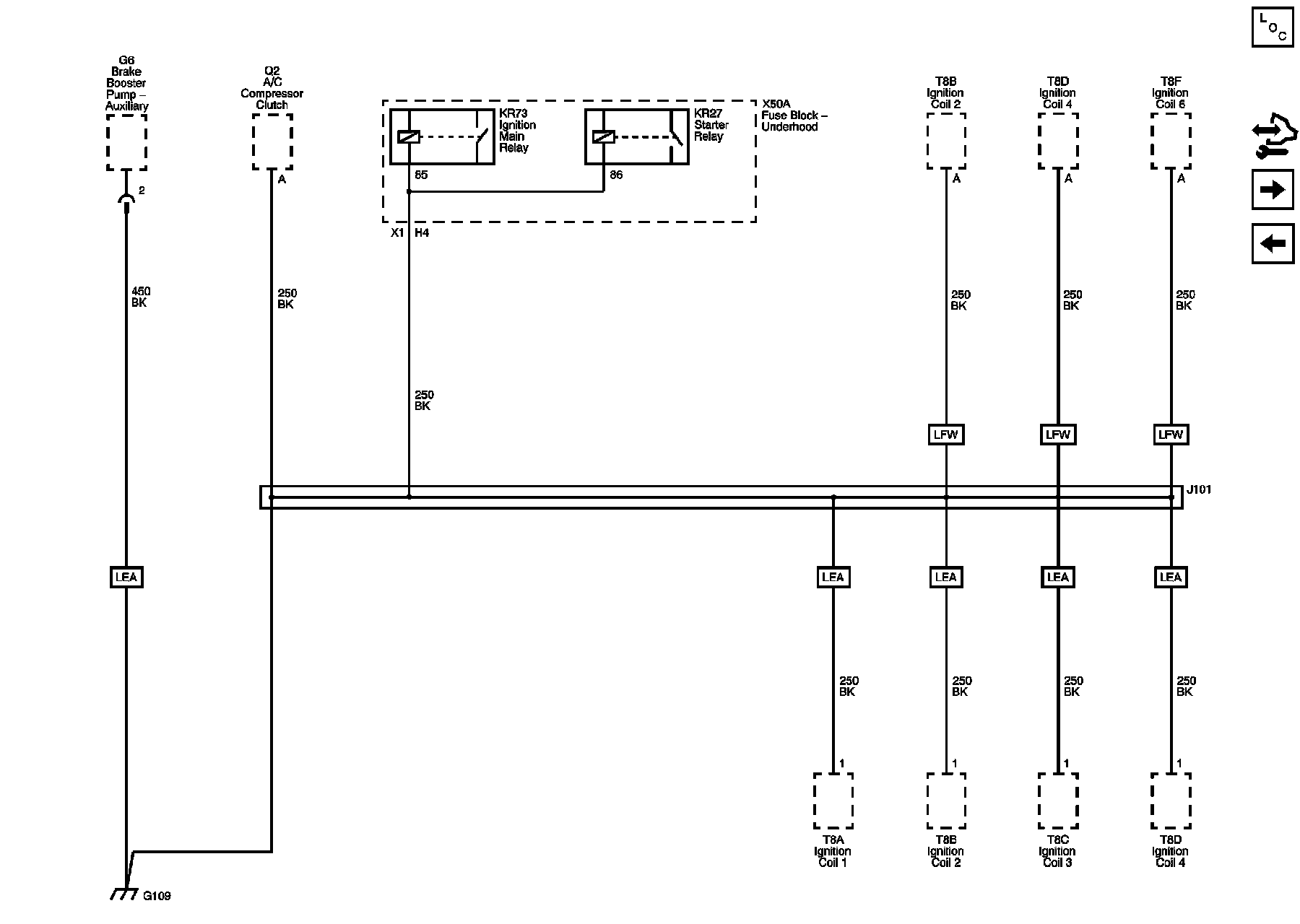

G109

Ground Distribution Schematics

G109

Master Electrical Component List
Control Module References
G110 and G112
G102, G103, G104, and G105
Electrical Center Identification Views
